- 18 -

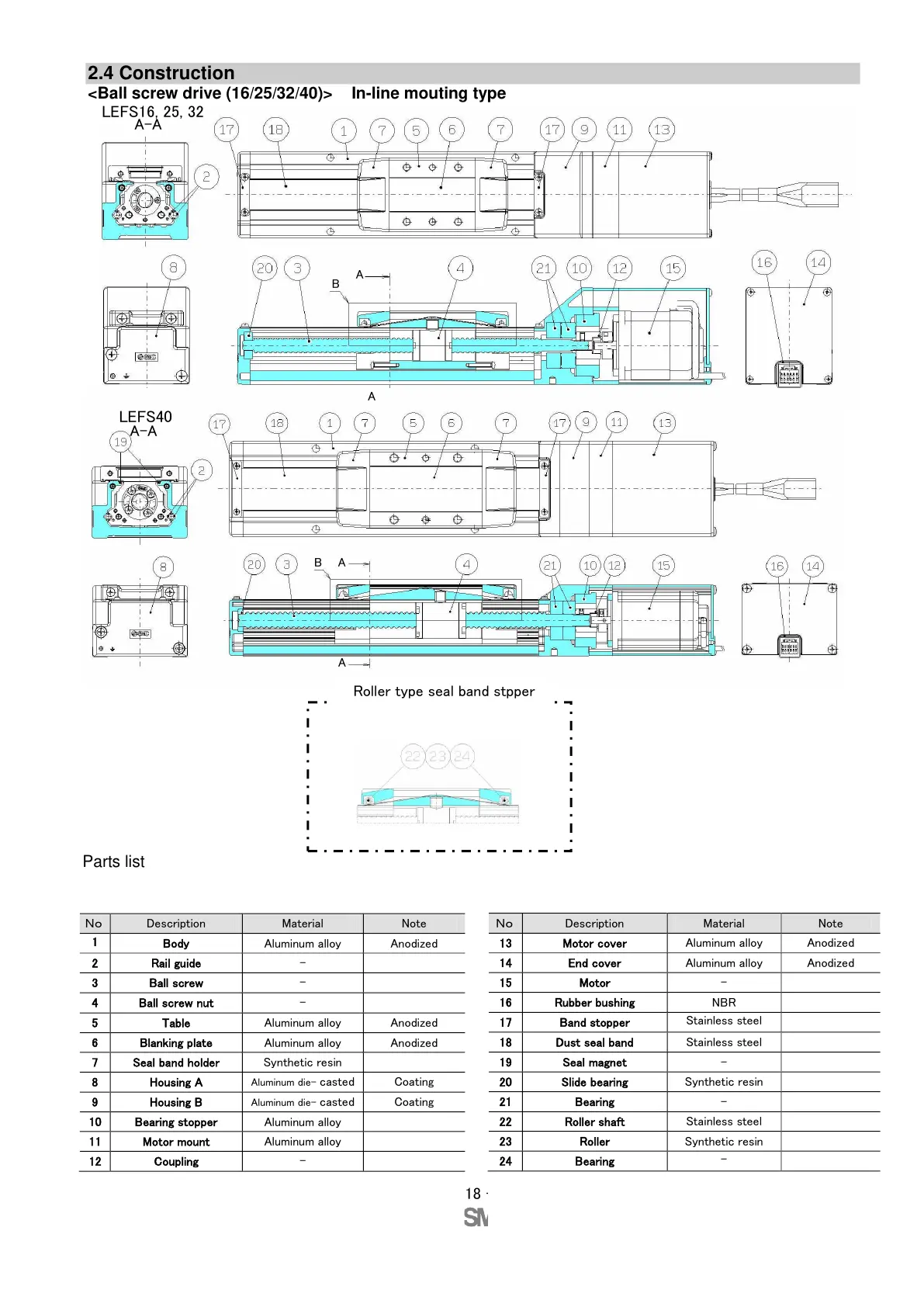

2.4 Construction
<Ball screw drive (16/25/32/40)> In-line mouting type
Parts list
Roller type seal band stpper
A-A
A-A
LEFS16, 25, 32
LEFS40
Ｎｏ
Description
Material
Note
1
1
Body
Aluminum alloy
Anodized
2
Rail guide
-
3
Ball screw
-
4
Ball screw nut
-
5
Table
Aluminum alloy
Anodized
6
Blanking plate
Aluminum alloy
Anodized
7
Seal band holder
Synthetic resin
8
Housing A
Aluminum die- casted
Coating
9
Housing B
Aluminum die- casted
Coating
10
Bearing stopper
Aluminum alloy
11
Motor mount
Aluminum alloy
12
Coupling
-
A
A
A
A
B
B
Ｎｏ
Description
Material
Note
13
Motor cover
Aluminum alloy
Anodized
14
End cover
Aluminum alloy
Anodized
15
Motor
-
16
Rubber bushing
NBR
17
Band stopper
Stainless steel
18
Dust seal band
Stainless steel
19
Seal magnet
-
20
Slide bearing
Synthetic resin
21
Bearing
-
22
Roller shaft
Stainless steel
23
Roller
Synthetic resin
24
Bearing
-
