SMC Networks EtherNet/IP JXC91 Series User Manual

LEFS16B-100
JX 19C
CR 1 719
7

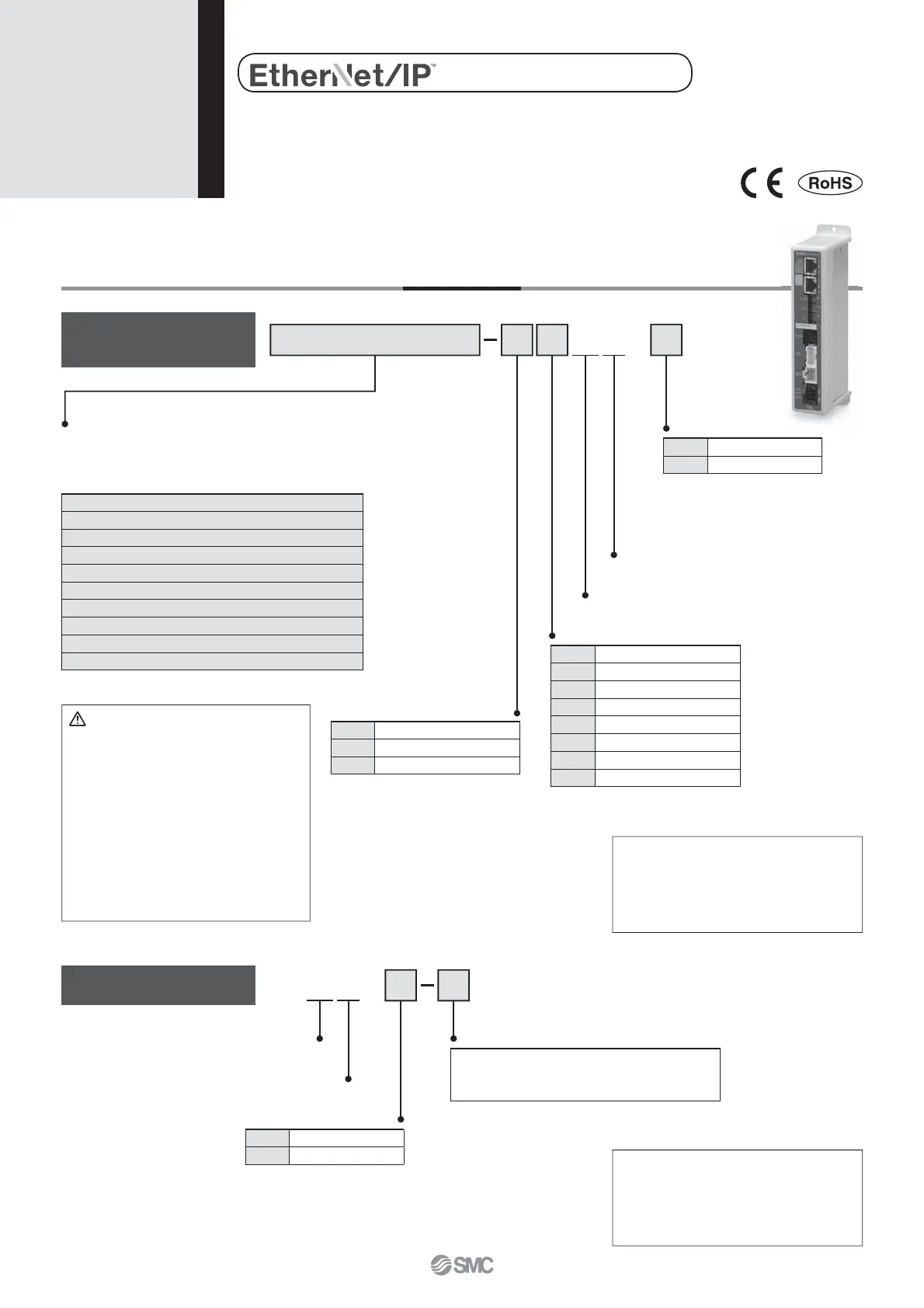

How to Order
EtherNet/IP™ direct input type
EtherNet/IP™ direct input type
Step motor controller
Step motor controller
Actuator cable type
—
Without cable
S
Standard cable
R
Robotic cable
Actuator cable length
—
Without cable
1
1.5 m
3
3 m
5
5 m
8
8 m
A
10 m
B
15 m
C
20 m
Mounting
7
Screw mounting
8
Note)
DIN rail mounting
Note) DIN rail is not included.
Order it separately.
(Refer to page 4.)
Mounting
7
Screw mounting
8
Note)
DIN rail mounting
Note) DIN rail is not included.
Order it separately.
Actuator part number
(Except cable specifi cations and actuator options)
Example: Enter “LEFS16B-100” for the
LEFS16B-100B-S1첸첸.
Actuator +
Controller
Controller
Step Motor Controller
Series JXC91
Actuator type
Refer to “How to Order” in each actuator catalogue
available at www.smc.eu.
For compatible actuators, refer to the table below.
Example: LEFS16B-100B-R1C917
Compatible actuators
Electric Actuator/Rod Series LEY
Electric Actuator/Guide Rod
Series LEYG
Electric Actuator/Slider
Series LEF
Electric Slide Table
Series LES/LESH
Electric Rotary Table
Series LER
Electric Actuator/Guide Rod Slider
Series LEL
Electric Actuator/Miniature
Series LEPY/LEPS
Electric Gripper
Series LEH
Electric Actuator/Low Profi le Slider
Series LEM
∗ Only the step motor type is applicable.
[CE-compliant products]
EMC compliance was tested by combining the
electric actuator LE series and the controller
JXC91 series.
The EMC depends on the confi guration of the
customer’s control panel and the relationship
with other electrical equipment and wiring.
Therefore, conformity to the EMC directive
cannot be certified for SMC components
incorporated into the customer’s equipment
under actual operating conditions. As a result, it
is necessary for the customer to verify
conformity to the EMC directive for the
machinery and equipment as a whole.
Caution
When selecting an electric actuator, refer to
the Model Selection of each actuator. And
when considering the "speed-work load"
graph of the actuartor, refer to the graph
corresponding to "for LECP6" in each
actuator catalogue.
When selecting an electric actuator, refer to
the Model Selection of each actuator. And
when considering the "speed-work load"
graph of the actuartor, refer to the graph
corresponding to "for LECP6" in each
actuator catalogue.
Direct Input Type
2
