Installation and Wiring
■Installation
Connect valve manifold to the SI unit.

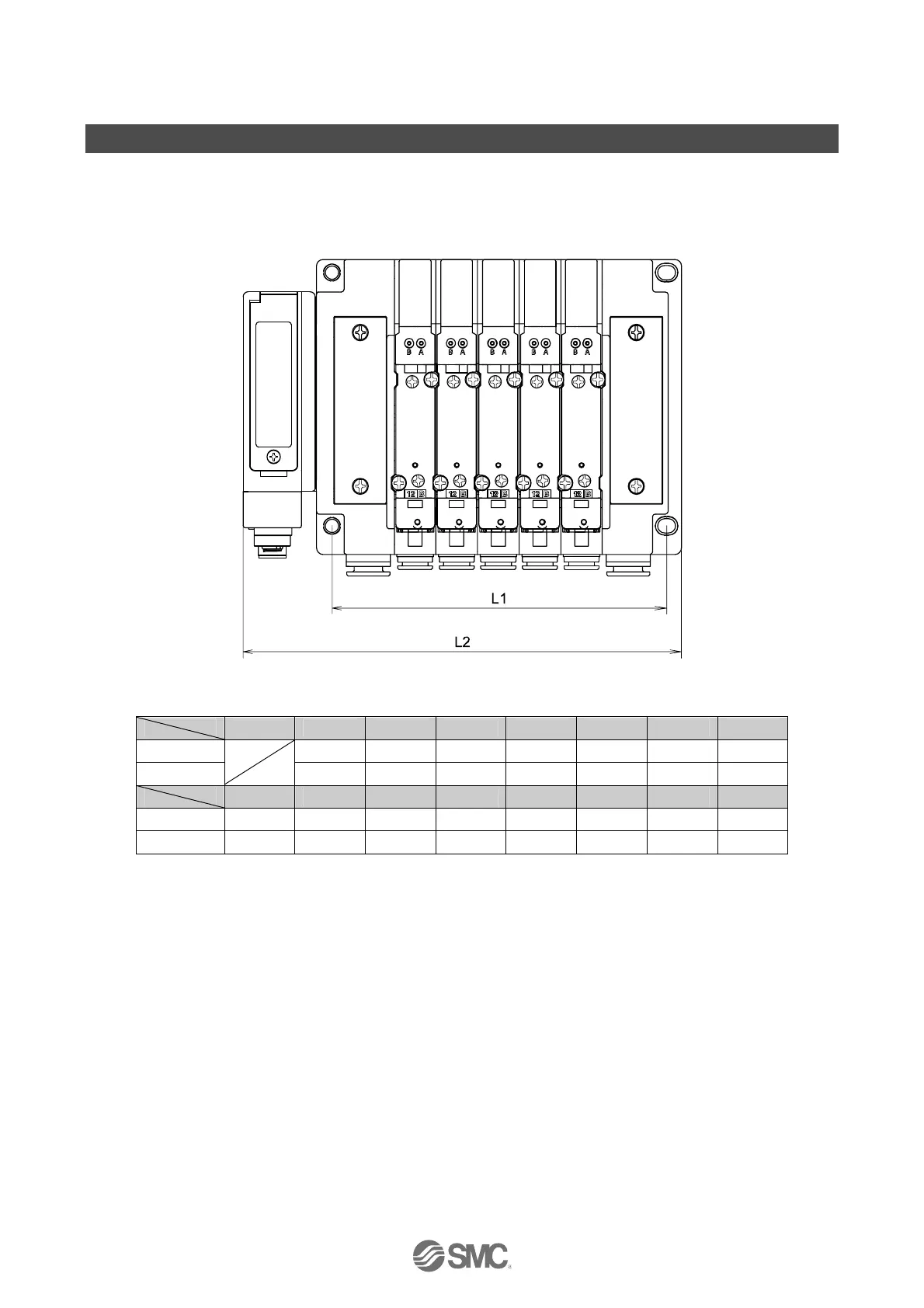

•Dimensions for installation
n: number of valve stations
L 1 2 3 4 5 6 7 8
L1 120.7 136.7 152.7 168.7 184.7 200.7 216.7
L2
80 96 112 128 144 160 176
L 9 10 11 12 13 14 15 16
L1 232.7 248.7 264.7 280.7 296.7 312.7 328.7 344.7
L2 192 208 224 240 256 272 288 304
(mm)
The above table shows dimensions as an example for the SY5000 series valve manifold.
Connectable valve manifolds are the same as for EX250 series SI unit.
Refer to the EX250 series valve manifold section in the valve catalogue for valve manifold dimensions.
n
n
