SMC Networks EX260 Series User Manual

-14-

No.EX##-OMP0013-A

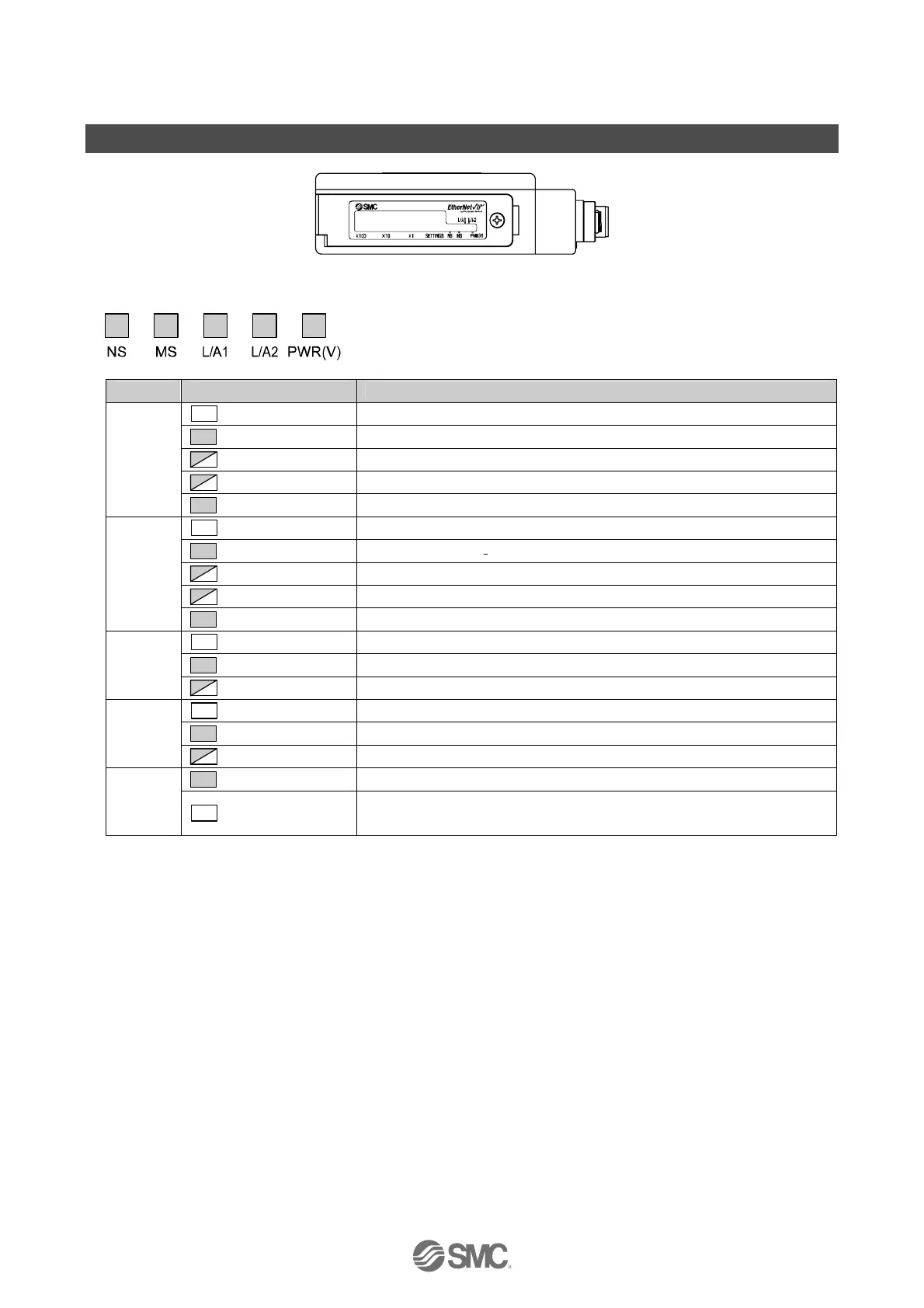

LED Indication and Settings
○LED indication

LED LED Status Description
OFF
The SI unit operating voltage is not supplied or the IP address is not set.
Green ON
EtherNet/IP
TM
communications established.
Green flashing
EtherNet/IP
TM
communications not established.
Red flashing
EtherNet/IP
TM
communications time out.
NS
Red ON
IP address duplicated.
OFF
The SI unit operating voltage is not supplied.
Green ON
Operating normally.
Green flashing
Setting error.
Red flashing
Recoverable error.
MS
Red ON
Unrecoverable error.
OFF
BUS IN side: No Link, No Activity
Green ON
BUS IN side: Link, No Activity
L/A1
Green flashing
BUS IN side: Link, Activity
OFF
BUS OUT side: No Link, No Activity
Green ON
BUS OUT side: Link, No Activity
L/A2
Green flashing
BUS OUT side: Link, Activity
Green ON
Load voltage for the valve is supplied
PWR(V)
OFF
Load voltage for the valve is not supplied or is outside the tolerance range
(19 V or less)
