SMC Networks EX260 Series - Physical Dimensions; SI Unit Dimensions and Notes

-34-

No.EX##-OMP0013-A

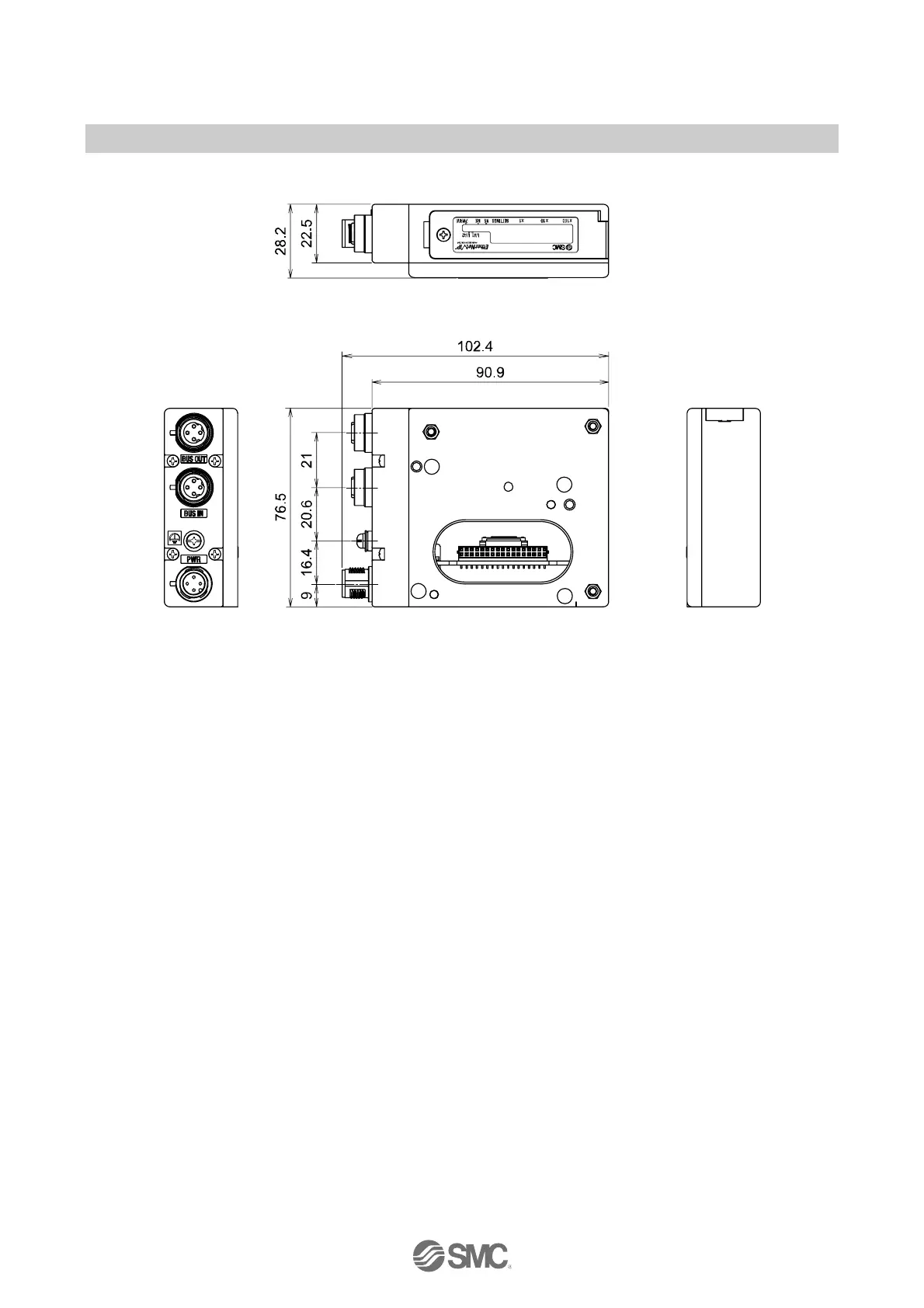

■Dimensions


•If a fieldwireable connector is used for the power supply connection, and the SI unit is installed directly to a
valve manifold, the connector should be φ16 mm or less.
If the connector is a larger diameter it will interfere with the clamping face.
Recommended cables are specified in the accessories section, on page 35.
