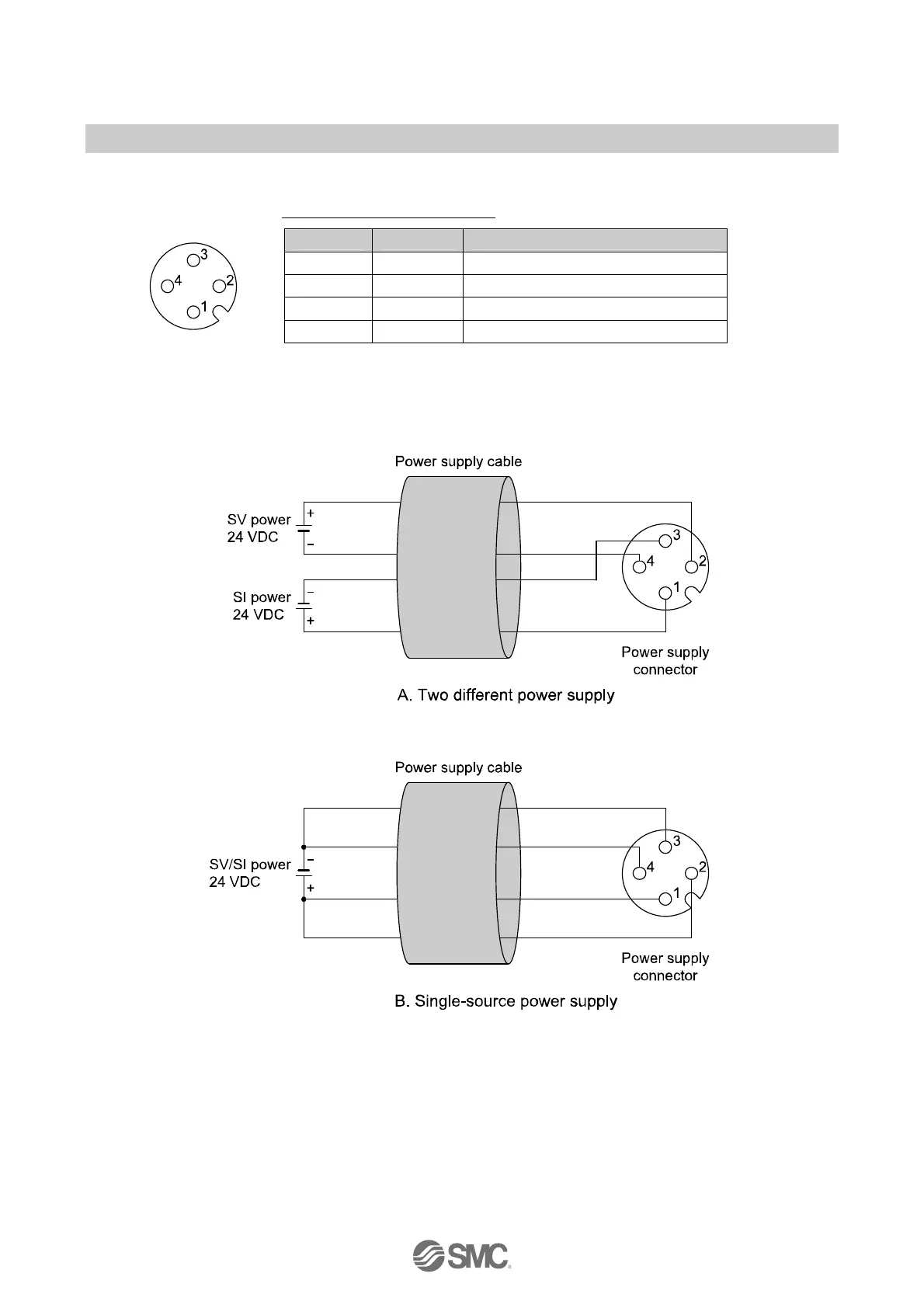

○Power supply connector layout
PWR: M12 4-pin plug, A-coded
No. Designation Description
1 SI24 V +24 V for SI unit operation
2 SV24 V +24 V for solenoid valve
3 SI0 V 0 V for SI unit operation

4 SV0 V 0 V for solenoid valve
Power-supply line for solenoid valve and power-supply line for SI unit operation are isolated.
Be sure to supply power, respectively.
Either single-source power or two different power supplies can be used.

∗: Pay attention not to exceed the tolerance range of power supply voltage.
