SMC Networks EX260 Series User Manual

-19-

No.EX##-OMP0013-A

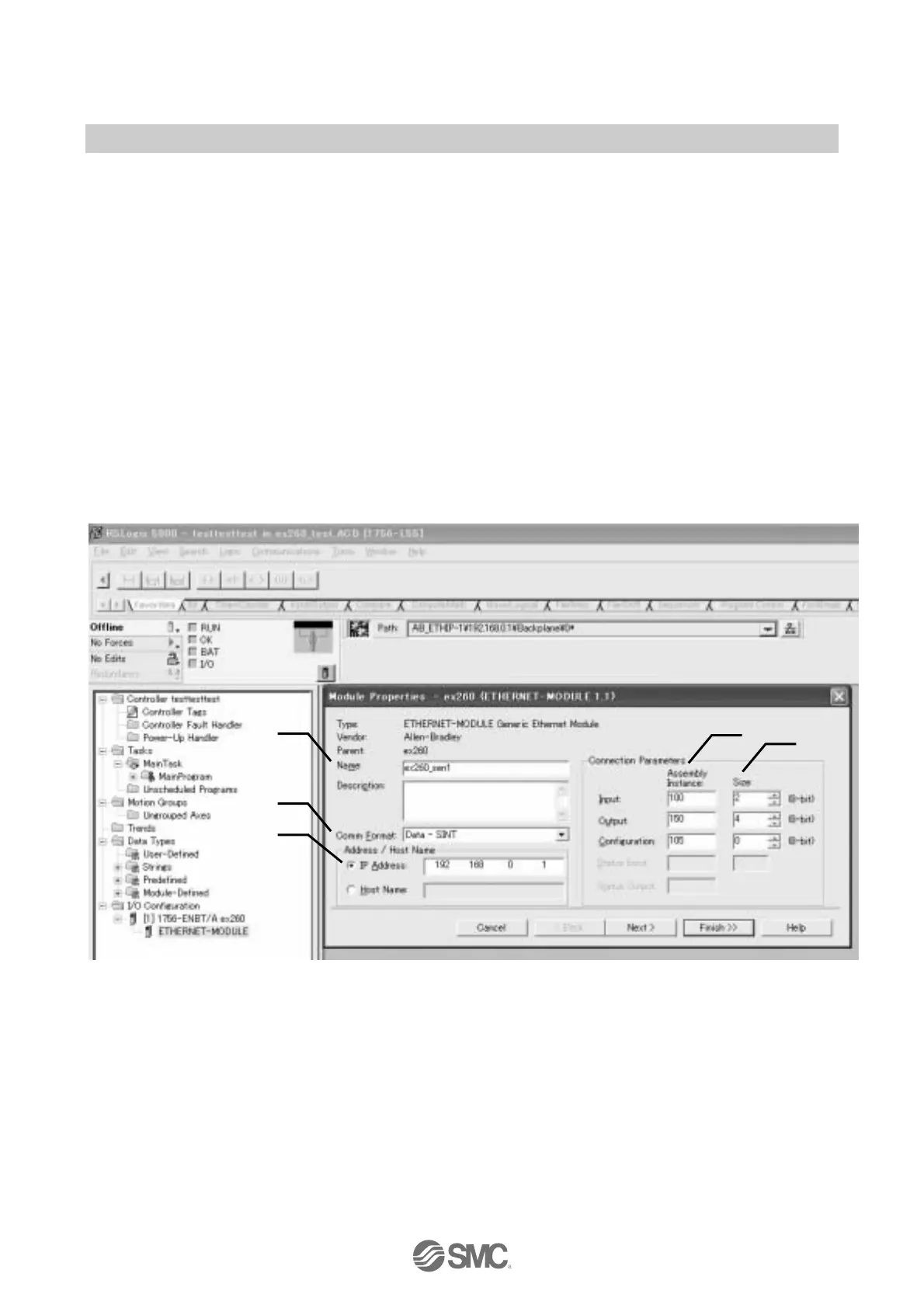

•The Module Properties screen will be displayed. Perform the various settings.
(1) Name: Input a unit name of your choice.
(2) Comm Format: Select the data format of the Connection Parameters.
(3) IP Address: Input the IP Address of the SI unit.
(4) Assembly Instance: Set as follows:
Input = 100
Output = 150
Configuration = 105
(5) Size: Set as follows:
Input = 2 bytes (for Data-SINT)
= 1 word (for Data-INT)
Output = 4 bytes (for Data-SINT - EX260-SEN1/-SEN2)
or
2 bytes (for Data-SINT - EX260-SEN3/-SEN4)
= 2 words (for Data-INT - EX260-SEN1/-SEN2)
or
1 word (for Data-INT - EX260-SEN3/-SEN4)
Configuration = 0
(1)
(4)
(2)
(3)
(5)
