C
HAPTER
1
| Introduction
Overview
– 27 –

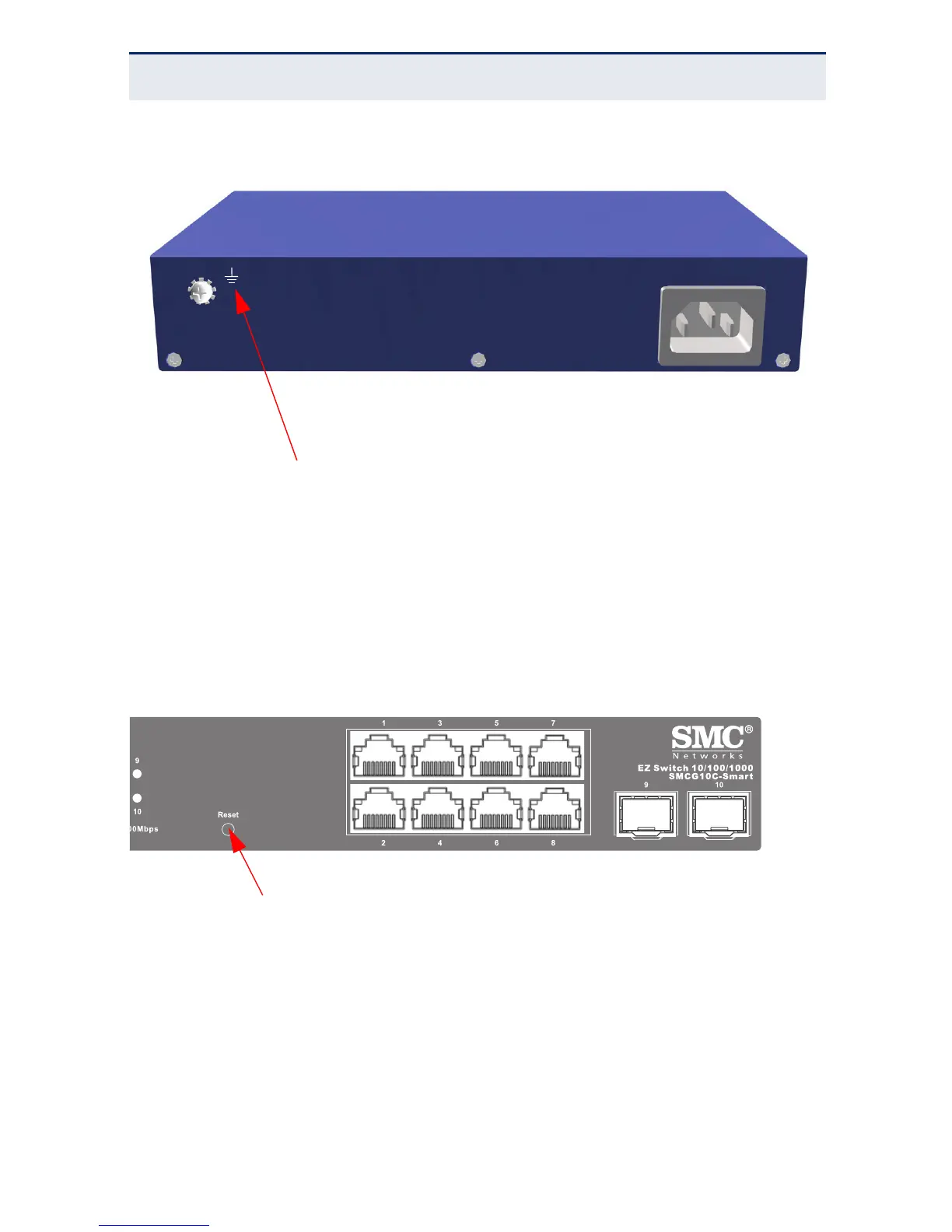

Figure 5: Grounding Point
RESET BUTTON
If you encounter any switch malfunctions, such as a hang or non-recoverable
error, you might want to reset the switch to its default configuration by pressing
and holding the reset button for six seconds. The reset button is located on the
front panel.
Figure 6: Reset Button
115-240Vac, 50-60Hz, 0.5A
