| Installing the Switch
Mounting
– 37 –
MOUNTING
The switch can be mounted in a standard 19-inch equipment rack or on a
desktop or shelf. Mounting instructions for each type of site follow.
RACK-MOUNTING
Before rack mounting the switch, pay particular attention to the following
factors:
◆ Temperature: Since the temperature within a rack assembly may be higher
than the ambient room temperature, check that the rack-environment
temperature is within the specified operating temperature range. (“Physical
Characteristics” on page 52.)
◆ Mechanical Loading: Do not place any equipment on top of the rack-
mounted unit.
◆ Circuit Overloading: Be sure that the supply circuit to the rack assembly is
not overloaded.
◆ Grounding: Rack-mounted equipment should be properly grounded.
Particular attention should be given to supply connections other than direct
connections to the mains.

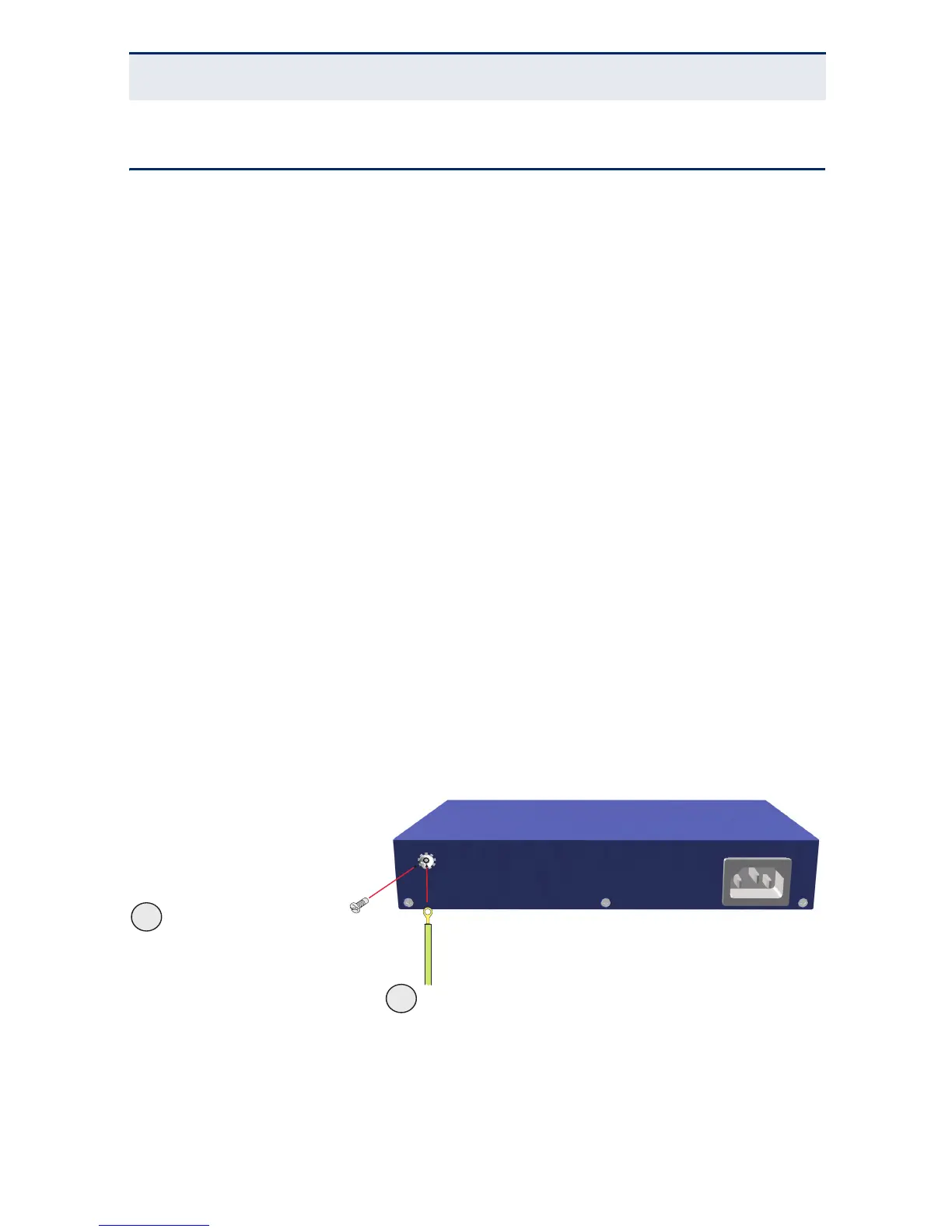

Figure 12: Grounding
Terminate the wire in an
earthed grounding point.
Attach an insulated grounding
wire, with a metal screw, to
the marked grounding point.
1.
2.
