Press the
button to set.
∗: IO-Link mode can provide the communication function.
∗: Refer to page 63 for details of the diagnostic information.
Press the
button to set.
∗: IO-Link mode can provide the communication function.
∗
: Refer to page 63 for details of the PD measurement value.
Press the
button to
return to [n] (Normal output),
then press the button to
set.
Return to function selection
mode.
[F98] Output check completed
∗: Measurement mode can return from any setting item by pressing the SET button for 2 seconds or longer.

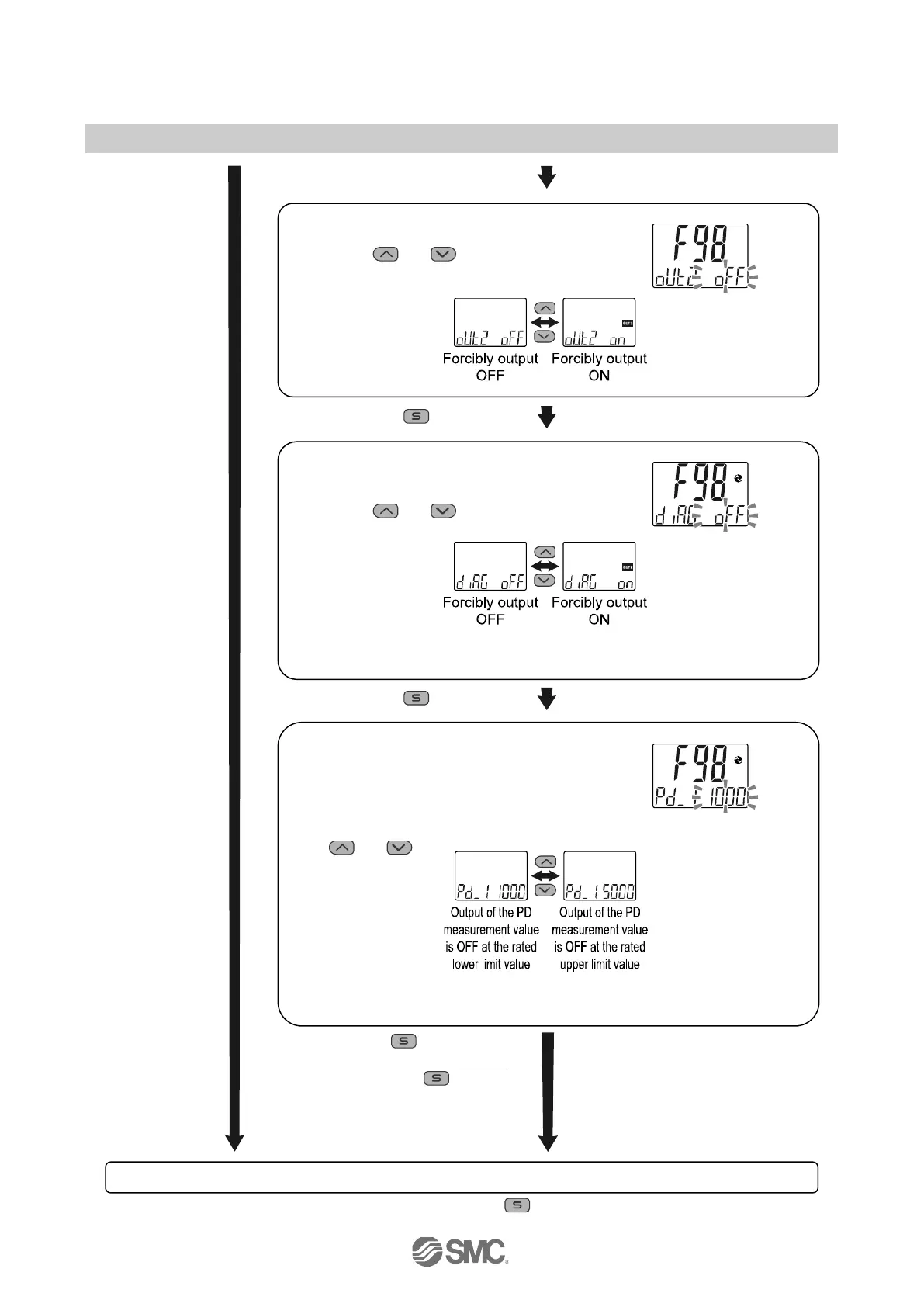

OUT2 output check
Press the or button to select OUT2
output check.
Diagnostic output check
(using the IO-Link communication only)
Press the
or button to select the
diagnostic output check.
PD measurement value
(using the IO-Link communication only)
The upper and lower limit values of the rated
pressure value can be output compulsively as
PD measurement value (process data).
Press
the
or
button to select the
lower or upper limit
value.
