-35-
No.PS※※-OMV0006-D
■[F 2] Setting of OUT2 (Setting of the OUT2 output available in the IO-Link communication process data)
Set the output mode of OUT2.
Output turns on when the pressure is greater than the set value. The default setting is to turn on the
pressure switch when the pressure reaches the center of the atmospheric pressure and upper limit of the
rated pressure range.
Please refer to the "List of output modes" on page 34 for the relationship between the set items and operation.

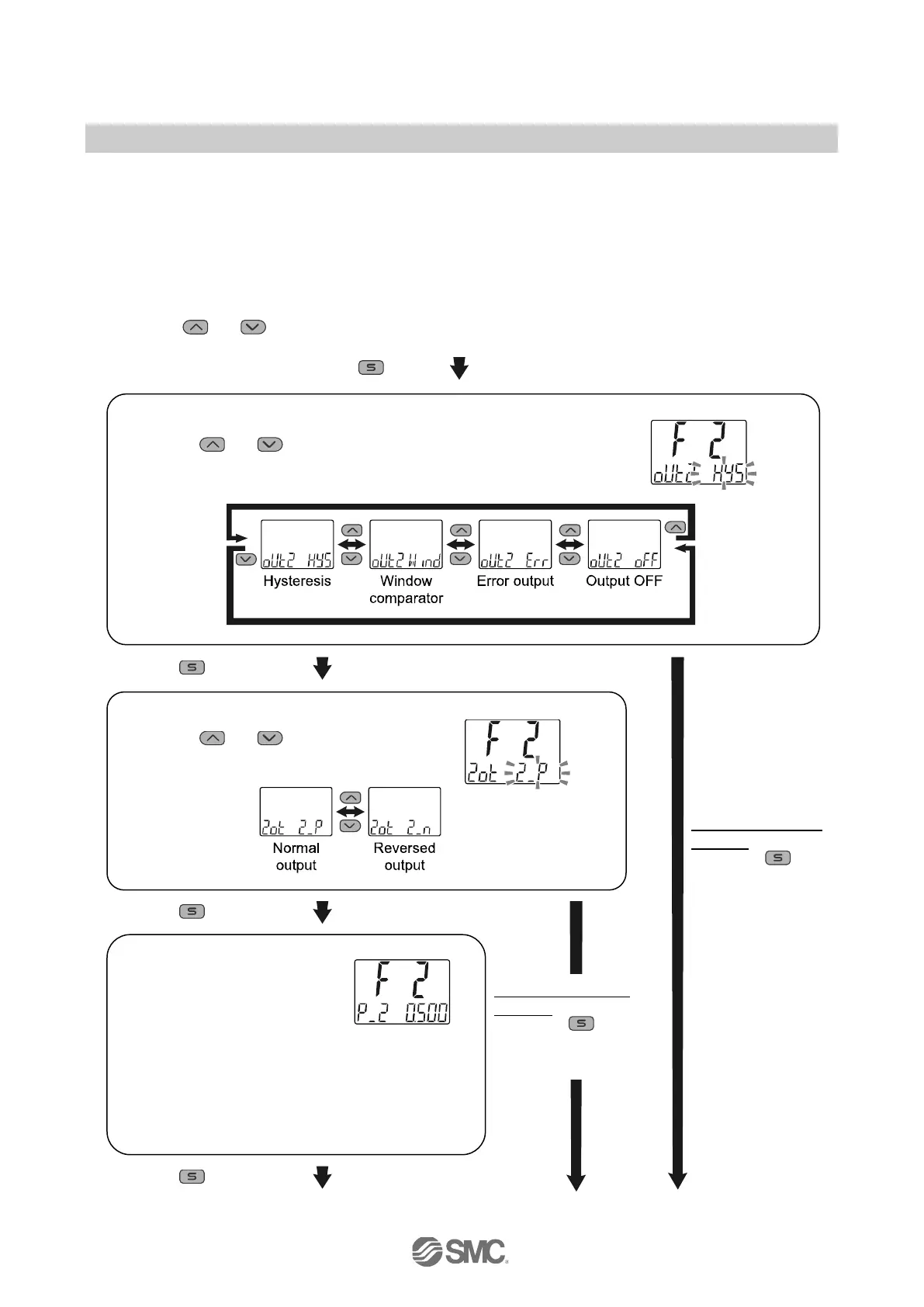

<Operation>
Press the
or button in function selection mode to display [F 2].
Press the
button. Move on to output mode setting.
Press the button to set. Move on to reversed output setting.
Press the
button to set. Move on to pressure setting.
Pressure setting
Set the pressure based on the
setting method on page 24.
Hysteresis mode: [P_2]
Window comparator mode: [P2L] [P2H]
"P" is changed to "n" as [P_2] → [n_2] when
reversed output is selected.
The snap shot function can be used.
(Refer to page 58.)
Press the
button to set. Move on to hysteresis setting.
Output mode setting
Press the or button to select the required output mode.
Reversed output setting
Press the or button to
select the reversed output.
[Err] Error output is
selected
Press the button
to move on to display
color setting.
[OFF] Output off is
selected
Press the
button to move on to
display color setting.
