Connecting to the air gap (no waste disposal unit)
IMAKE THE CONNECTION UPLINE FROM THE SIPHON OF THE
DRAIN LINE AND AT LEAST 400 mm (15-3/4 ") ABOVE THE FLOOR
ON WHICH THE DISHWASHER WILL BE INSTALLED.
1. Connect the dishwasher drain hose (ref. A Fig. 18) to the air gap
(ref. B Fig. 18) using the wide spring clamp(ref. C Fig. 18); if necessary,
cut the end of the dishwasher drain hose (ref. D Fig. 18) (do not cut the
corrugated section). If the drain hose has been cut, use a 38 to 50 mm
(from 1-1/2" to 2") screw clamp*.
2. To connect the air gap (ref. B Fig. 18) to the « T» union
(ref. E Fig. 18) of the drain line, use a rubber union* (ref. F Fig. 18) with
spring or screw clamps* (ref. G Fig.18).
* Available from any plumbing stockist.

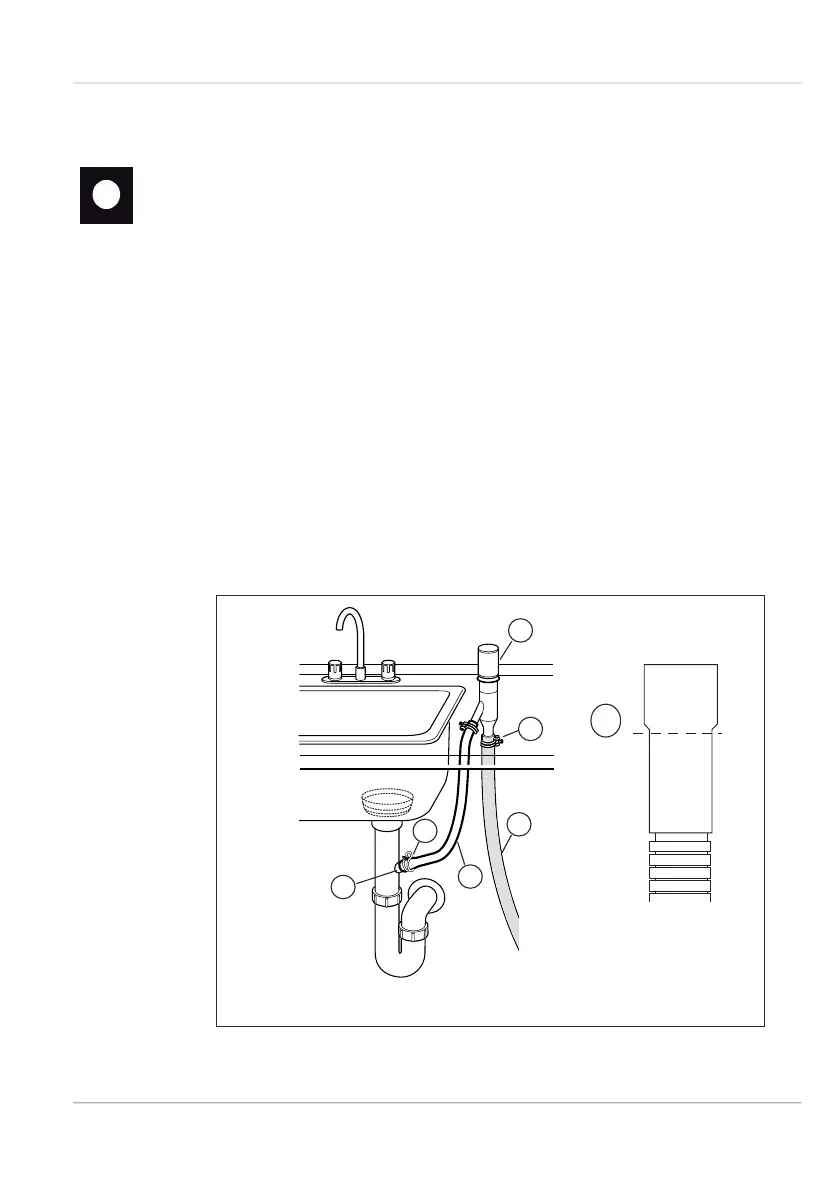

Fig. 18
B
C
E
A
G
F
D
INSTALLATION INSTRUCTION
EN
20
