INSTALLATION INSTRUCTION

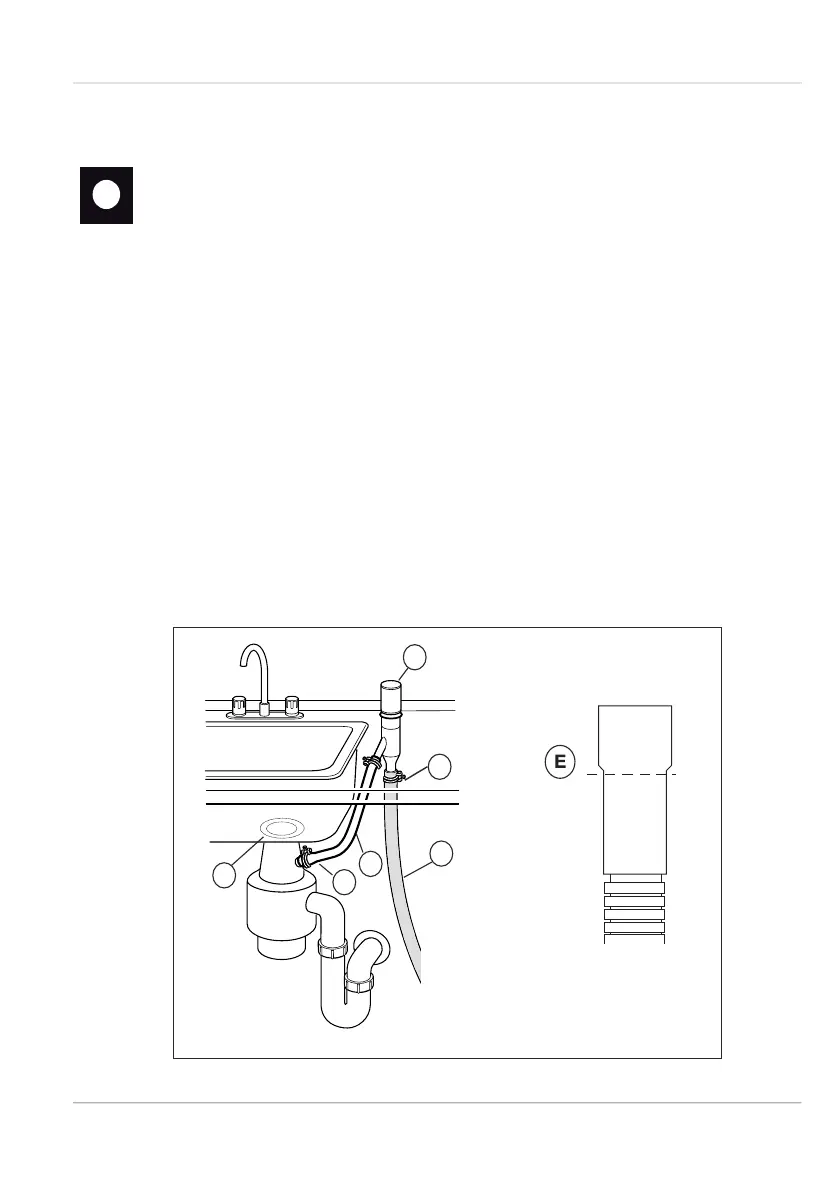

Connecting to a waste disposal unit with an air gap
1. Remove the cover of the waste disposal unit ( ref. A Fig. 17).
2. Connect the dishwasher drain hose (ref. B Fig.17) to the air gap
(ref.C Fig. 16) using the wide spring clamp (ref. D Fig. 17); if necessary,
cut the end of the dishwasher drain hose (ref. E Fig. 17) (do not cut
the corrugated section). If the drain hose has been cut, use a 38 to 50 mm
( da 1-1/2" a 2") screw clamp*.
3. To connect the air gap (ref.C Fig. 17) to the waste disposal unit inlet
(ref. A Fig 17),use a rubber union * ( ref. G Fig 17) with spring or
screw clamps* (ref. H Fig. 17).
* Available from any plumbing stockist.
MAKE THE CONNECTION UPLINE FROM THE SIPHON OF THE
DRAIN LINE AND AT LEAST 400 mm (15-3/4 ") ABOVE THE FLOOR
ON WHICH THE DISHWASHER WILL BE INSTALLED.
A
Fig. 17
B
C
D
G
D
H
EN
19
