INSTALLATION INSTRUCTION
MAKE THE CONNECTION UPLINE FROM THE SIPHON OF THE
DRAIN LINE AND AT LEAST 400 mm
(15-3/4 ") ABOVE THE FLOOR ON WHICH THE DISHWASHER WILL
BE INSTALLED.
1. Connect the dishwasher drain hose (ref. A Fig. 16) to the «T» union (ref.
B Fig.16) of the drain circuit using a 38 mm to 50 mm
(1-1/2" a 2") screw clamp* (ref.C fig 15); if necessary, cut the end of the
dishwasher drain hose (ref. D Fig. 16) (do not cut the corrugate section).
* Available from any plumbing stockist.
AAAA
B
C
D

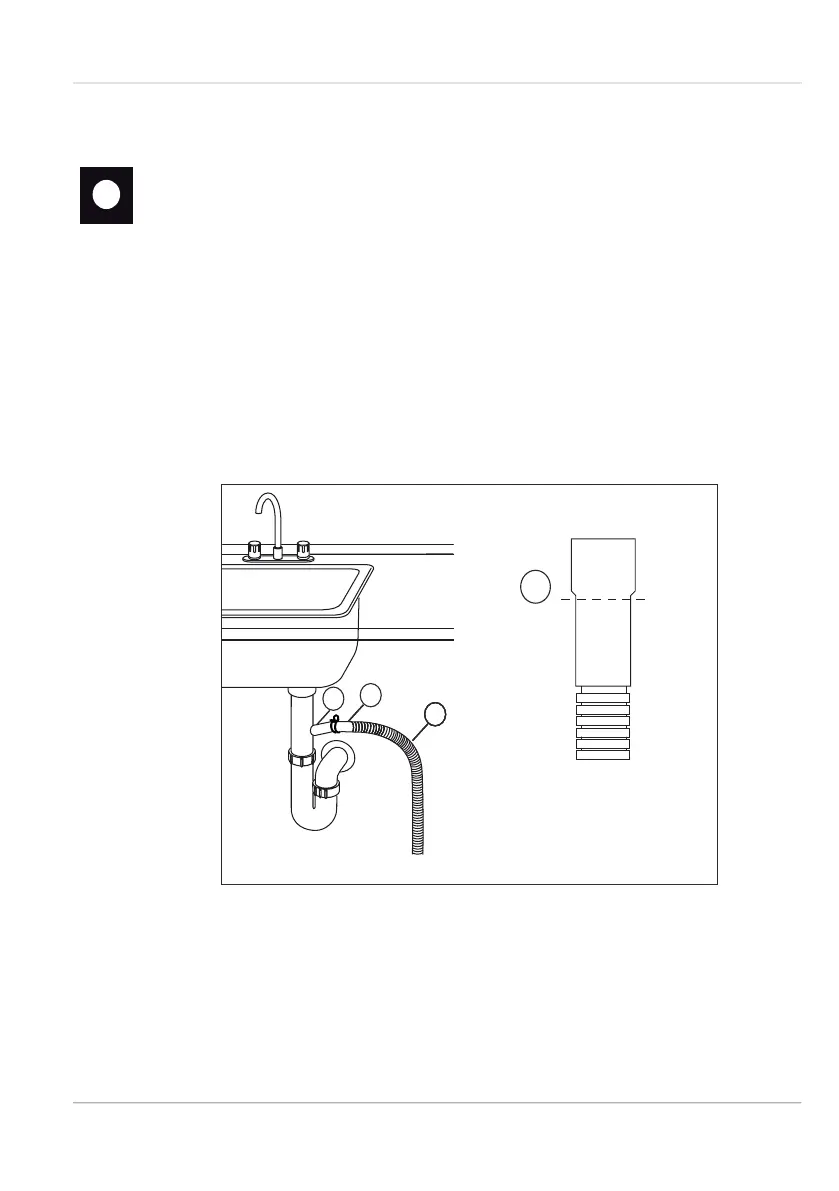

Fig. 16
Connecting to a «T» union of the drain circuit
EN
18
