eDNA SAMPLER
www.smith-root.com

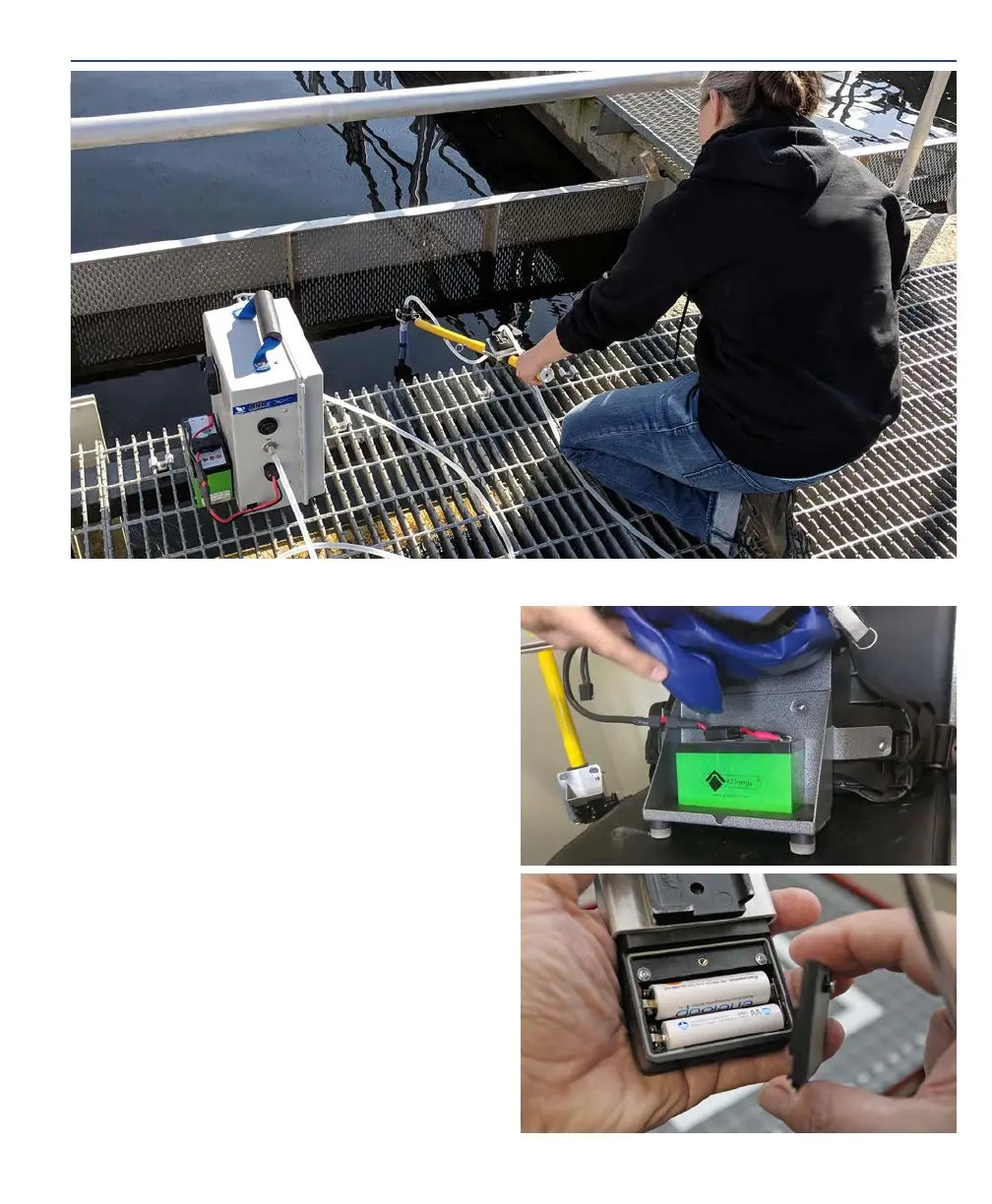

BATTERY INSTALLATION
1. Empty the lower storage dry bag and
fold it up to reveal the battery tray
(backpack unit)
2. Place the battery in the rubber footer
and align dual lock to snap in place
3. Connect the battery to eDNA Sam-
pler power cable
4. Fold down dry bag to cover the bat-
tery
5. Using a small screwdriver, remove the
water tight cover from remote control
battery compartment. Do not fully
remove the screw from the cover.
6. Install 2 rechargeable AA batteries
(provided with unit), noting correct
+/- orientation. Push them firmly into
place to ensure good contact.
7. Replace water tight cover and tighten
the screw to prevent water intrusion.
