3/4” Shafted
DELUXE BUSHED DRUM ASSEMBLY

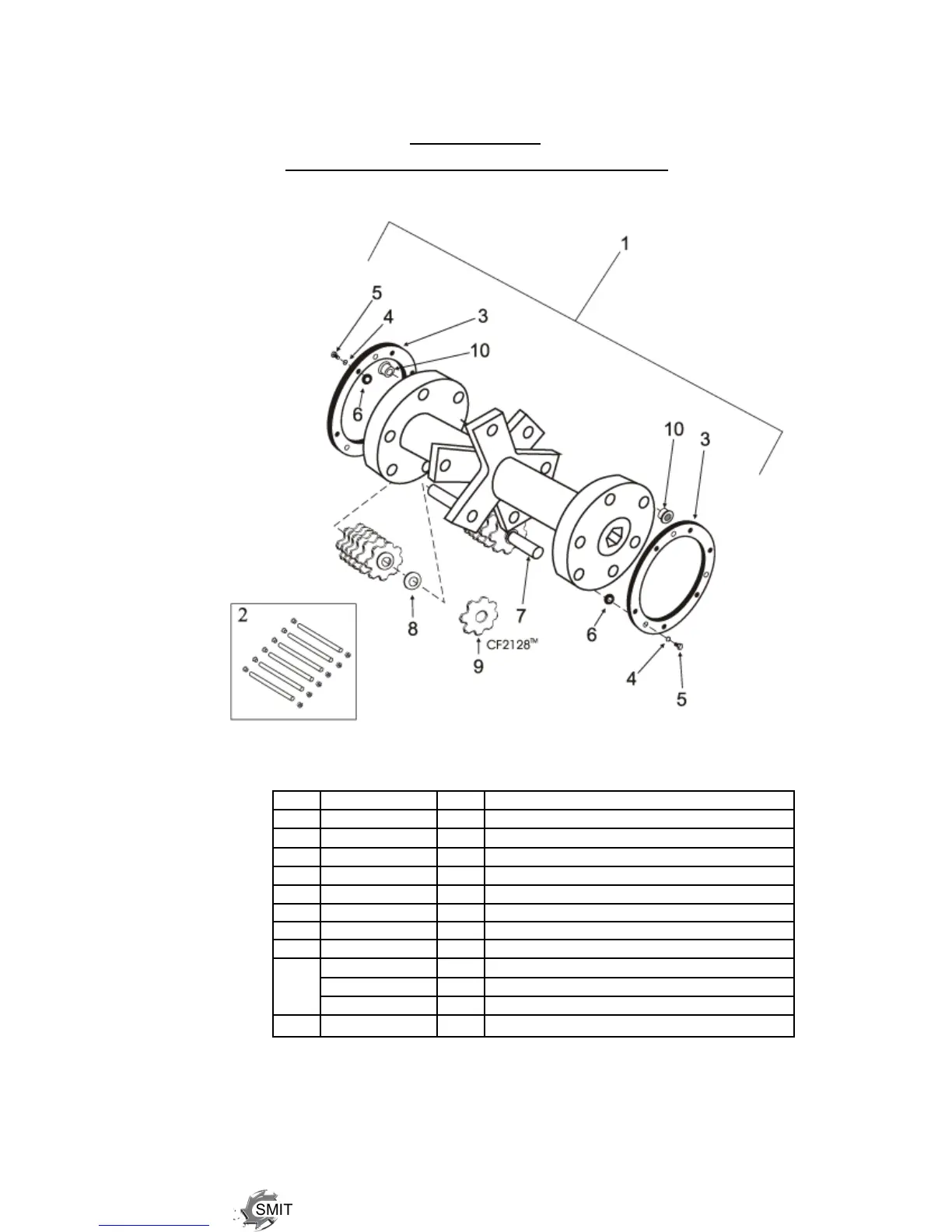

ILL# Part No. Oty. Description
1 65050.75 1 Drum Assembly (includes #2- #6)
2 65052.75 1 Kit (Set of 6 Shafts, 12 Bushings)
3 1065054 2 Retaining Plate
4 1010801.1 6 Lock Washer, 5/16
5 1010053 6 Flat Socket Head Cap Screw, 5/16 x 18 x 3/4
6 1010213 6 Washer, 10mm
7 S-20150.75 6 Cutter Shaft, 3/4”
8 SP2233 § Spacer, 3/4”
9 HS1001™ § Steel Beam Cutter
CF2128™ § 8 Spike Tungsten Carbide Cutter (large)*
CM2550™ § 100% Carbide Scraping Cutter (large)*
10 1065055.75 12 Drum Bushing (.75” diameter)
§ Refer to cutter set up on pages 14-15
    *Forusewith5”RearWheels(P/N:52002)only.
