Here you find controls and indicators

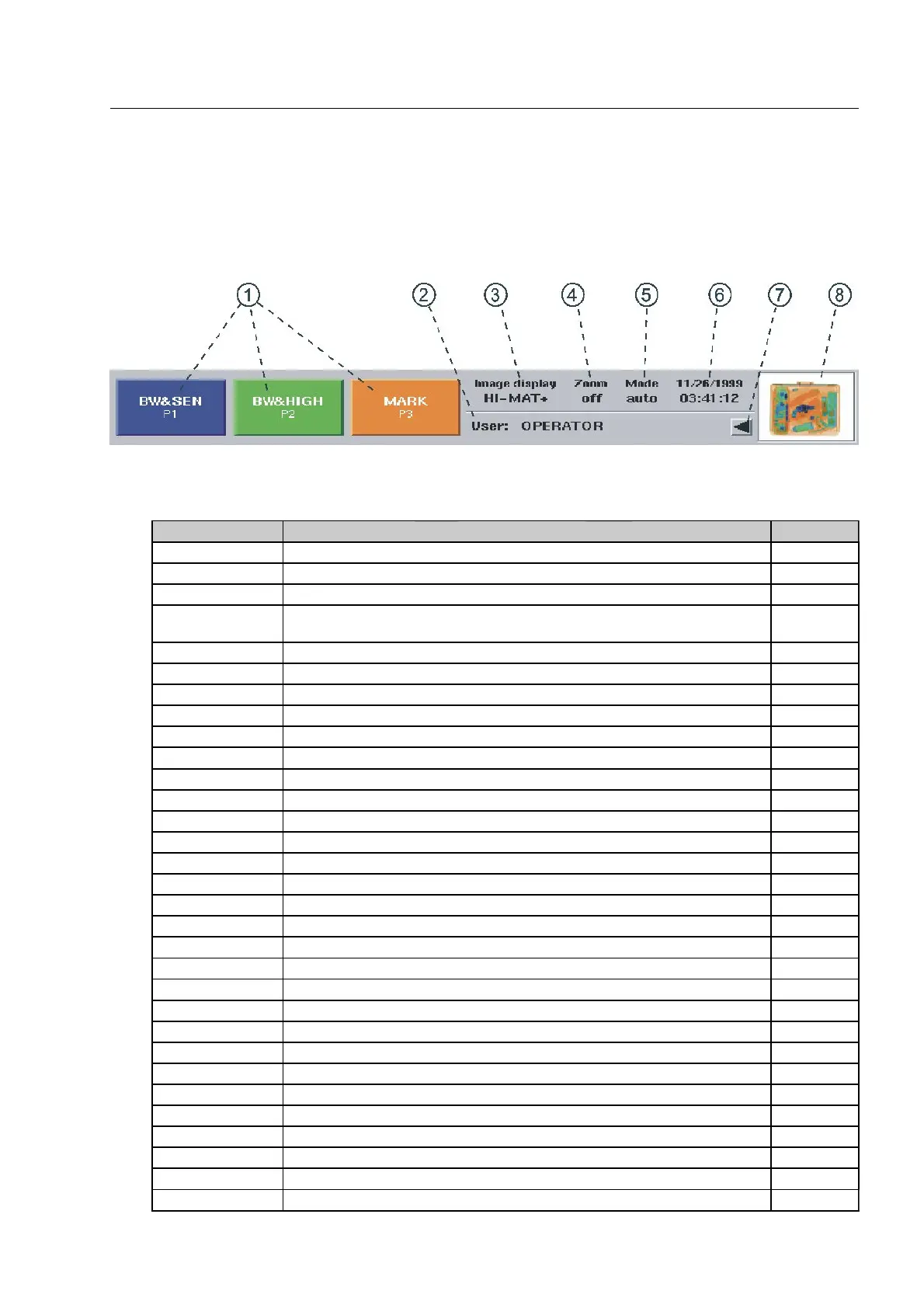

The screen indication field
After switching on (F 1-31) the HI-SCAN X-ray unit, the indication field is displayed in the lower screen area
(in dual view units only on the main monitor).
1 display of functions or combinations of functions to be called up via r, s and t
Display Function F
−− without function
ALARM send silent alarm 1-91
ALARM ON silent alarm is active 1-91
AUTO switching on/off markings set by the user and the insertion of markings of the automat-
ic detection functions
1-50 & -57
BW black/white image 1-61
BW-HIGH black/white image with higher penetration 1-65
BW-LOW black/white image with lower penetration 1-66
BW-NEG black/white image in negative image display 1-66
BW-NEG-SEN black/white image in negative image display with Superenhancement 1-66 & -67
BW-SEN black/white image with Superenhancement 1-67
ENTER BAG ID enter bag ID manually to store the next image 1-82
EXIT default image display 1-60
FRAME OBJECT mark suspicious object in the X-ray image 1-50
HI-CAT1...8 HI-CAT image 1...8 1-69
HI-MAT+ HI-MAT
PLUS
color image
1
1-61
HIDE INFORMATION Hide written information in X-ray images 1-89
HIGH+ current image with higher penetration 1-65
HIGH HI-MAT
PLUS
color image
1
with higher penetration 1-65
HIGH-NEG+ current image with higher penetration in negative image display 1-65 & -66
HIGH-NEG HI-MAT
PLUS
color image
1
with higher penetration in negative image display 1-65 & -66
IMS MENU call up image recall menu 1-82
LOW+ current image with lower penetration 1-66
LOW HI-MAT
PLUS
color image
1
with lower penetration 1-66
MARK mark baggage item, acknowledge and delete recognized threat object or image 1-50, -73 & -77
MAT+-HIGH HI-MAT
PLUS
color image
1
with higher penetration 1-65
MAT+-HIGH-NEG HI-MAT
PLUS
color image
1
with higher penetration in negative image display 1-65 & -66
MAT+-LOW HI-MAT
PLUS
color image
1
with lower penetration 1-66
MAT+-NEG HI-MAT
PLUS
color image
1
in negative image display 1-66
MAT+-NEG-SEN HI-MAT
PLUS
color image
1
in negative image display with Superenhancement 1-66 & -67
MAT+-SEN HI-MAT
PLUS
color image
1
with Superenhancement 1-67
NEG+ current image in negative image display 1-66
