3. To exit Main menu and return to target torque or angle screen, press ENTER button while EXIT
menu selection is highlighted.

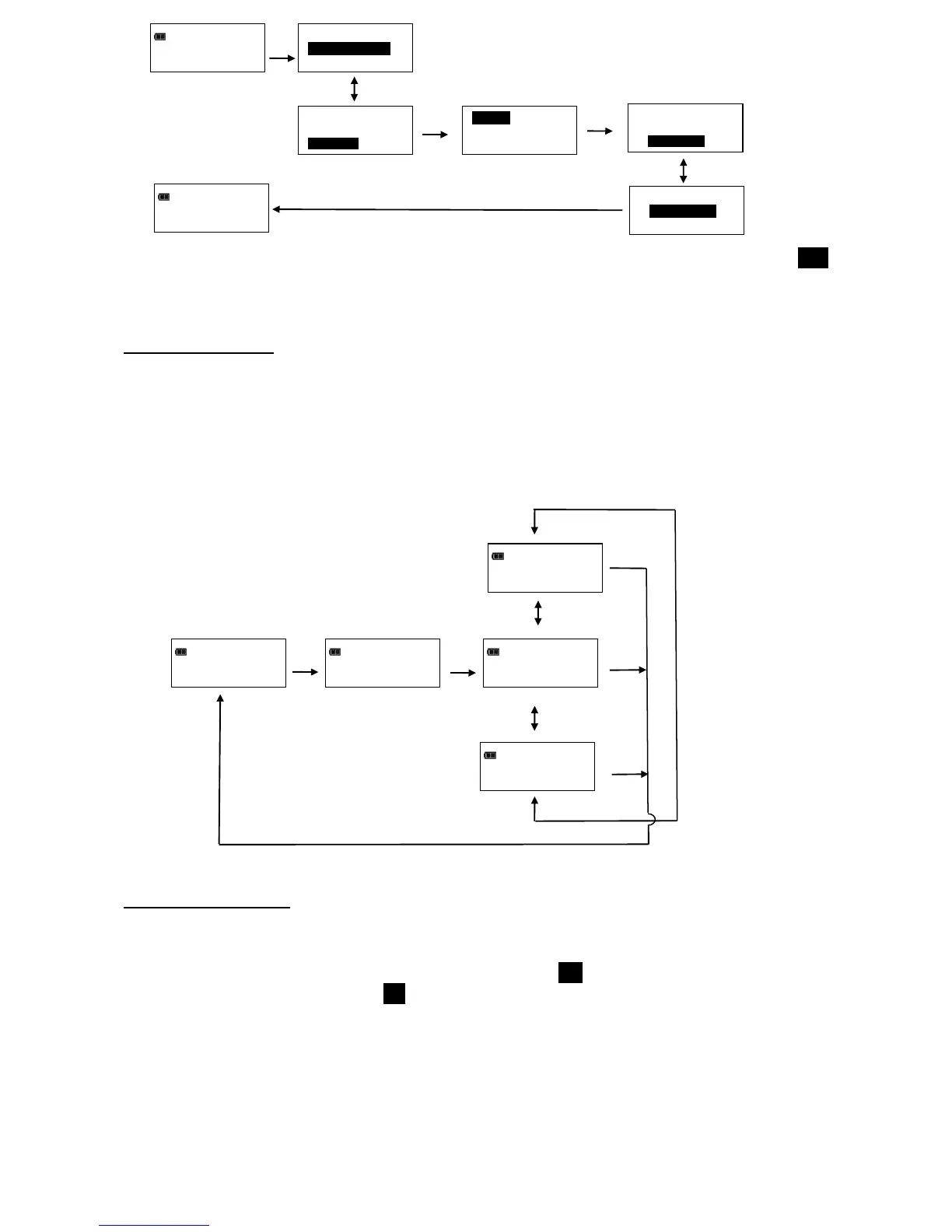

Target Presets (PSET)
PSET function gives user ability to configure 50 preset target torque or target angle settings, each with
a target, minimum, maximum (over range) and batch count value. PSETs are stored in non-volatile
memory so that they are retained while power is off.
Note: After adding a Preset (see below), navigate between manual target torque, angle mode and PSET
screen by repeatedly pressing ENTER button. While PSET screen is displayed, press UP/DOWN
buttons to select additional configured PSETs.
Adding a Torque Preset
1. From manual target torque screen, select units of measure.
2. Press and hold UNITS button for 3 seconds.
3. ADD PRESET confirmation screen is displayed. Highlight YES menu selection using UP/DOWN
buttons then press ENTER button. NO menu selection returns to main menu without adding a PSET.
4. TARGET TORQUE screen is displayed. TARGET TORQUE is target value of fastener. Initial TARGET
TORQUE value is value from target torque screen. TARGET TORQUE can be set to any value within
wrench torque range by pressing UP/DOWN buttons. Once desired target torque value has been
set, press ENTER button.
5. MINIMUM TORQUE screen is displayed. MINIMUM TORQUE is value at which green progress lights,
audible alert and vibrator turn on. Initial MINIMUM TORQUE value is TARGET TORQUE value minus
negative torque tolerance (default 0%, see MODE SETUP in Advanced Configuration section).
MINIMUM TORQUE can be set to any value from TARGET TORQUE to wrench minimum torque
