Chapter 4 Navigation
This chapter describes the scan tool screen layout, how to navigate the interface, and how to
make selections using screen menus and buttons. The various types of messages that display
while using the tool are also explained here.
4.1 Screen Layout

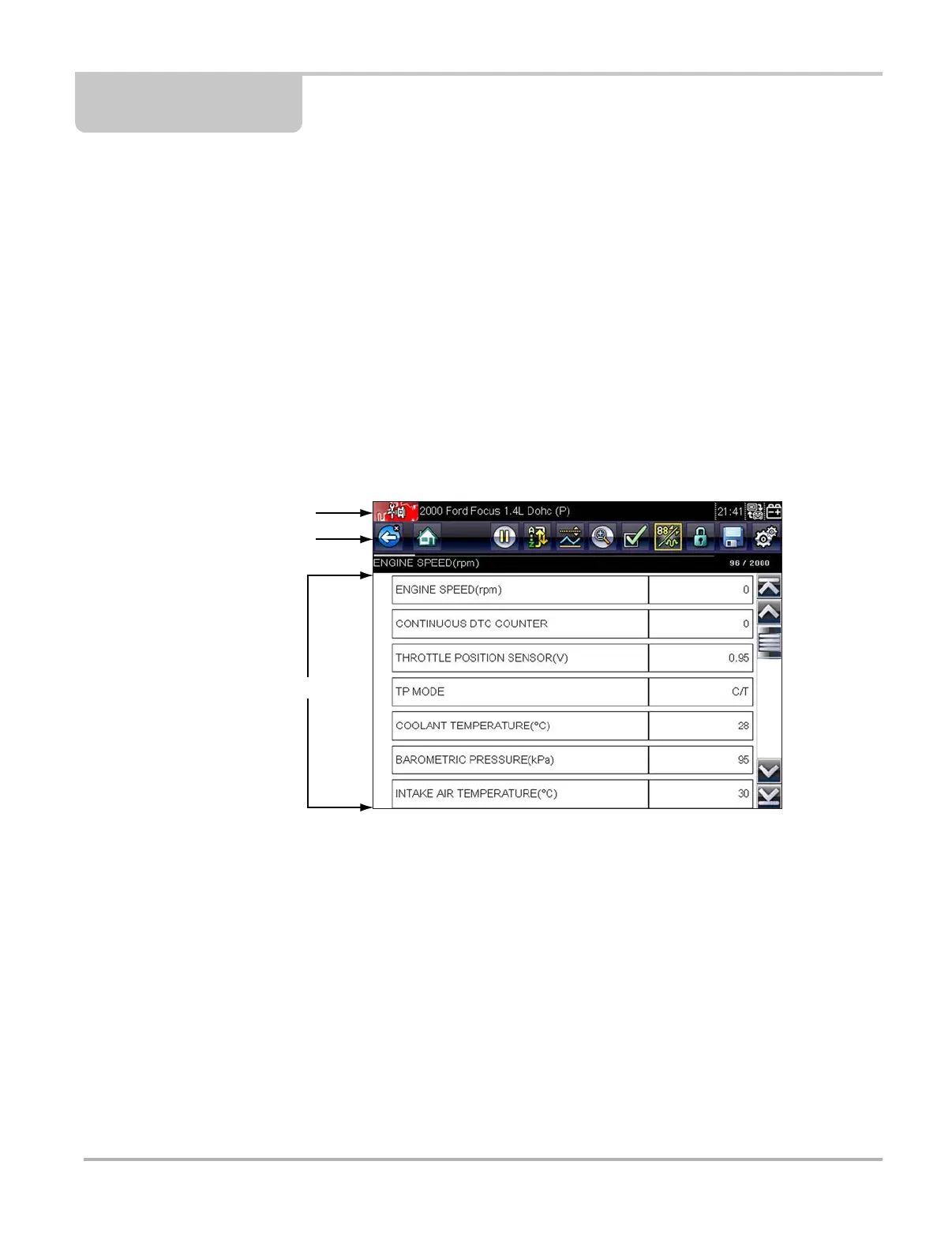

Scan tool screens (Figure 4-1) typically include the following sections:
1— Title bar shows test and tool status
2— Toolbar contains test controls
3— Main body displays menus and test data
Figure 4-1 Sample scan tool screen
4.1.1 Title Bar
The title bar at the top of the screen, provides basic information about current tool operating
conditions. Title bar options vary depending upon vehicle make and model, what test is being
performed or what menu is selected. Title bar information may include:
• The identification (ID) of the test vehicle
• The name of the active menu or database
• A power source indicator
• A vehicle communication indicator
