Snap-On MM250SL User Manual

20 Snap-on Tools Corporation Kenosha, WI 53141-1410
1
2
3
4
3
5
6
1
98712
987
10
11
FIGURE E
QTY.DESCRIPTION
PART
NO.
DIA.
MKGS.
ITEM
NO.
1 SN-026 NUT, GAS HOSE ............................................................................................................................ 2
2 RC3 SN-6204 PLUG, 14 PIN (FEMALE PINS) ...................................................................................................... 1
3 SN-6204B CLAMP, 14 PIN PLUG ..................................................................................................................... 2
4 PLG2 CC-300-15 CONTROL CABLE ASSY., 15' 14 PIN ............................................................................................ 1
SN-6209-15 CABLE ONLY, 15' ............................................................................................................................ 1
5 RC2 SN-6191B PLUG, 14 PIN (MALE PINS) ........................................................................................................... 1
6 PS-4A POWER PLUG W/GAS HOLE ........................................................................................................ 1
7 SN-028 FERRULE, HOSE ............................................................................................................................ 2
8 SN-025 CABLE FITTING .............................................................................................................................. 2
9 SN-023 WELD CABLE ONLY (14'-10") ........................................................................................................ 1
10 SN-2157E-15 GAS/CURRENT CABLE ASSY., 15' EXTENSION .......................................................................... 1
SN-027-15 GAS HOSE ONLY , 15' ................................................................................................................... 1
11 SN-2008 CABLE TIE ..................................................................................................................................... 15
12 SN-807G BOOT/CABLE COVER .................................................................................................................... 1

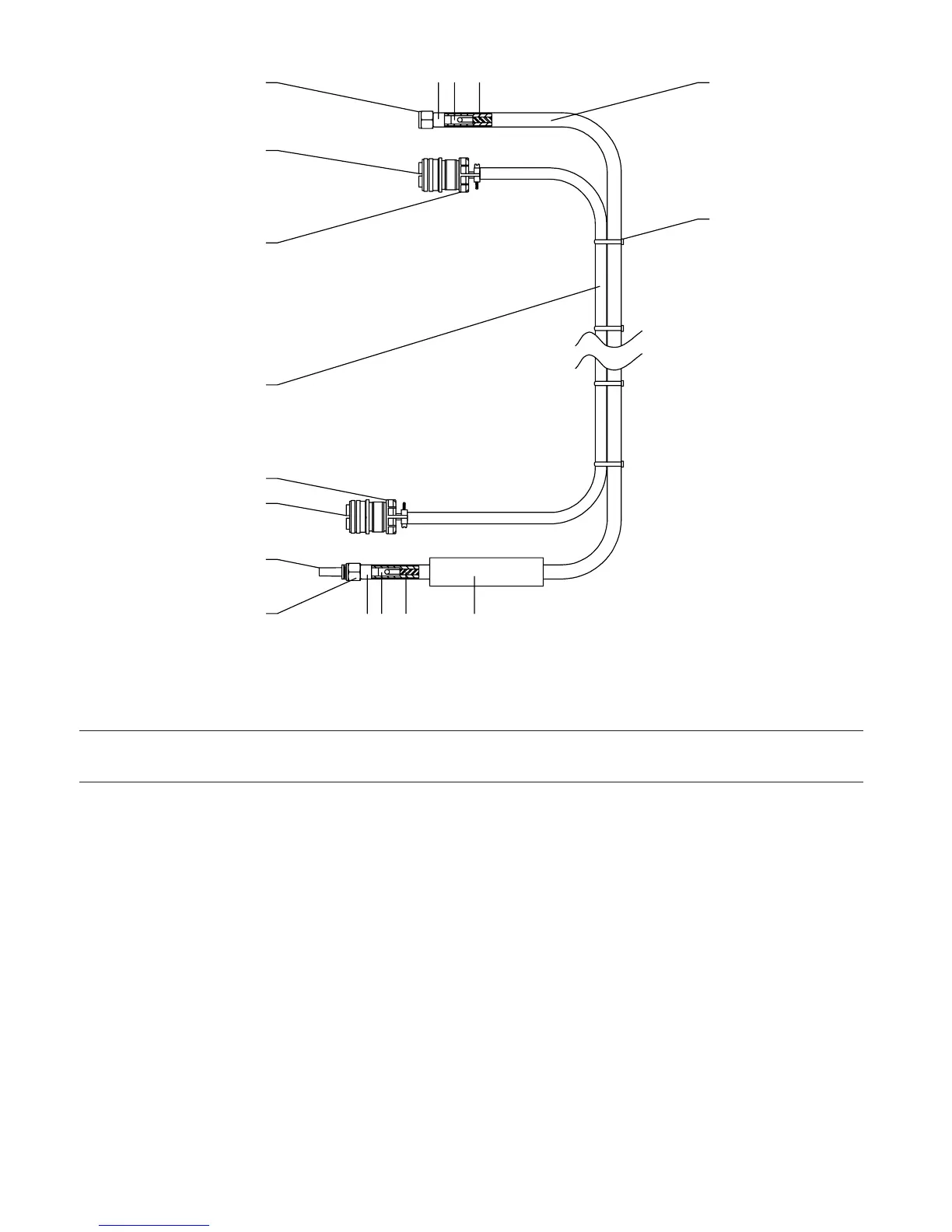

FIGURE E - FEEDER CABLE ASSEMBLY (FCA-15)

Snap-On MM250SL Specifications

General

Welding Amperage Range	30 - 250 A
Wire Feed Speed	50 - 700 IPM
Welding Process	MIG (GMAW)
Input Frequency	60 Hz
Rated Output	250 A at 28 VDC
Spool Size Capacity	4 inch
Input Phase	Single Phase
