Snap-On MM250SL - Control Cable Wiring Diagram

Snap-on Tools Corporation Kenosha, WI 53141-1410 5
RC2 RC3

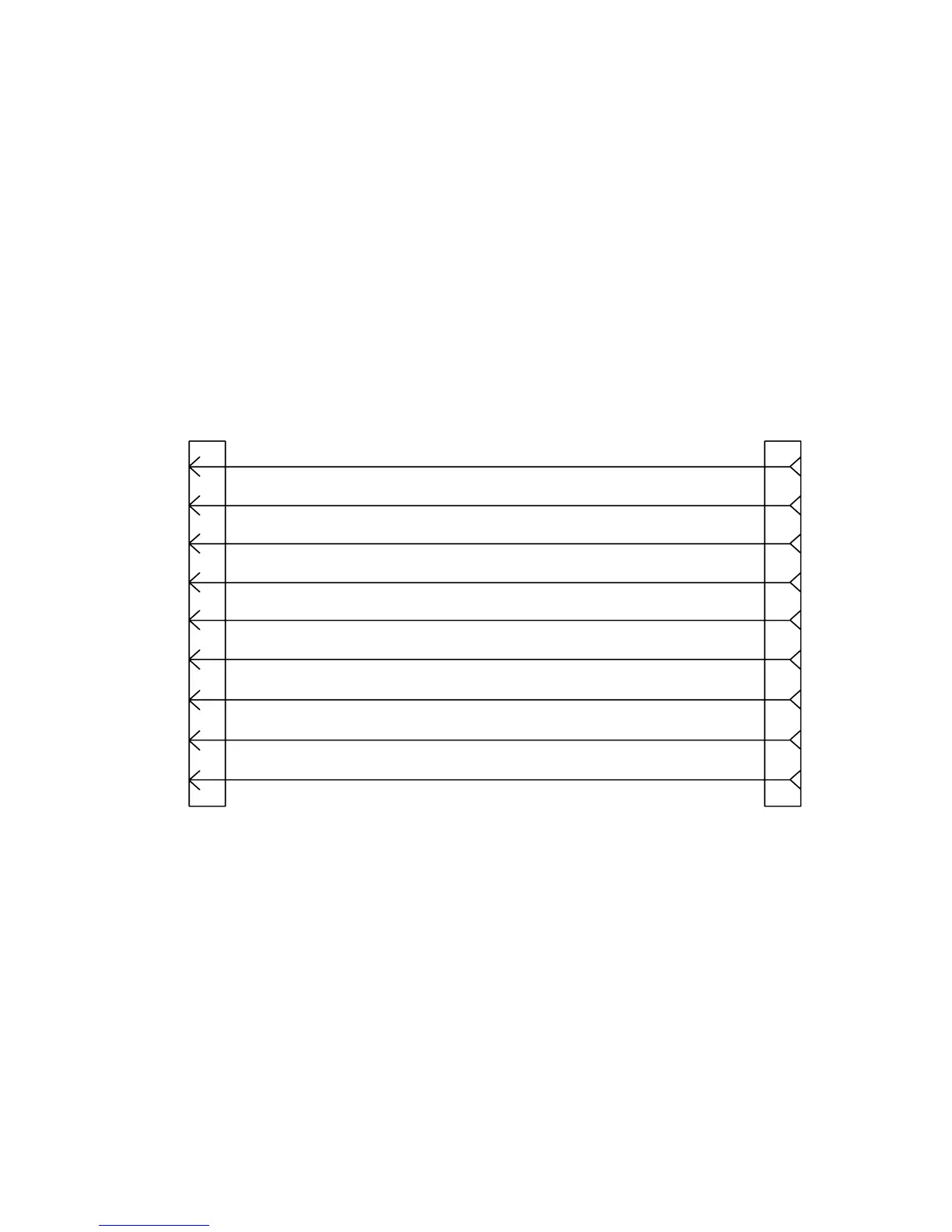

FIGURE 2 - WIRING DIAGRAM, CONTROL CABLE ASSEMBLY
A YELLOW A
B ORANGE B
C BLUE C
D BROWN D
E RED E
F BLACK F
G WHITE G
H PURPLE H
K GREEN K
