Enclosure Assembly
 19
/28

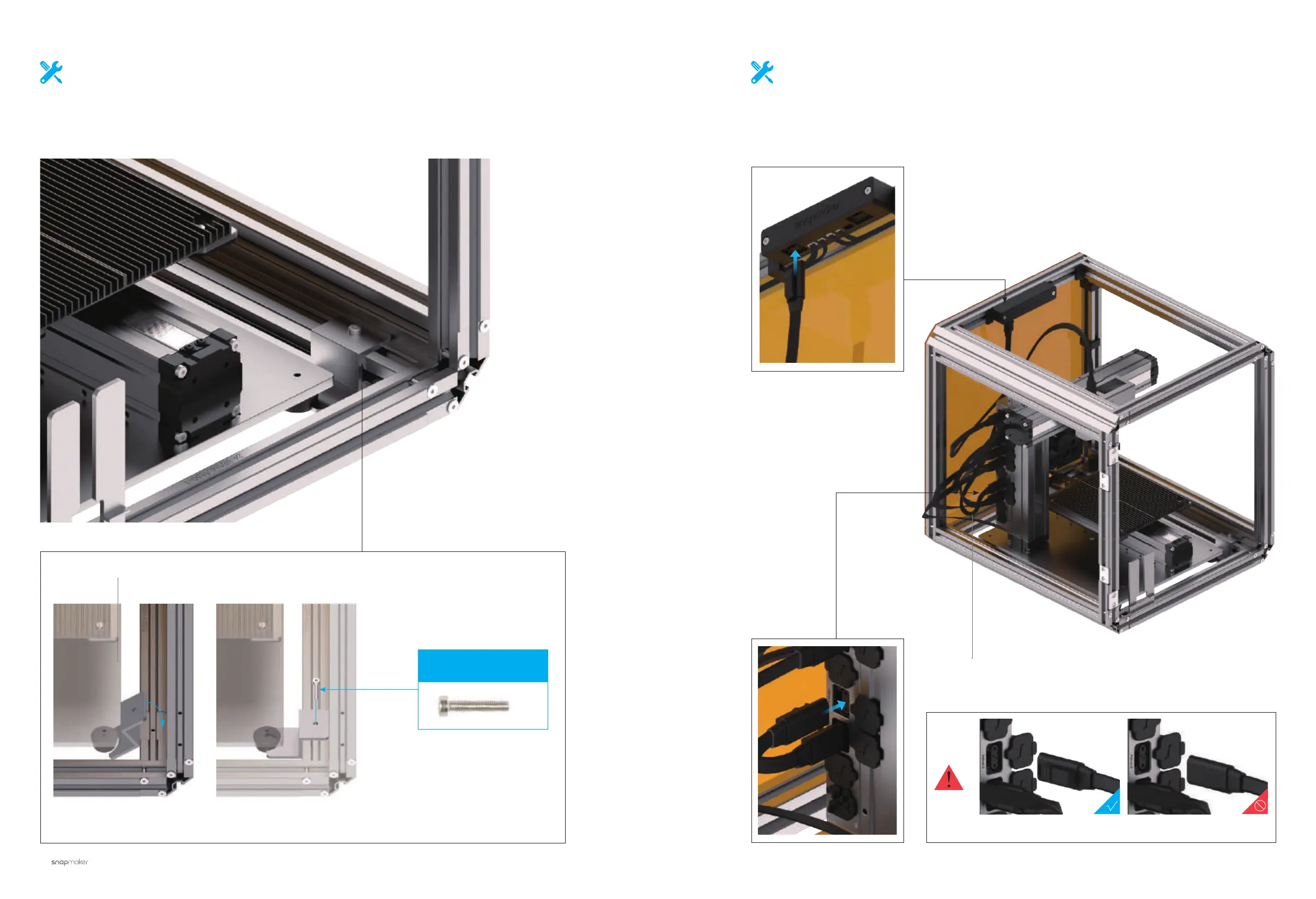

Clamp the Foot Fixtures onto the four feet of the machine, then fix the
fixtures onto the enclosure.
Foot Fixture × 4
 20
/28
Connect the Enclosure Converter’s Expansion Port with the Addon 3 Port
of the machine’s controller using the SMH Expansion Cable.
SMH Expansion Cable × 1
1:1
M4 × 20 Hex Socket Head
Screw
× 4
Make sure the connectors are in the right direction.
