Snom D7C User Manual Getting to know your D7C
Getting to know your D7C
The function keys on the expansion module(s) are congured and work like function keys/SmartLabel
keys with LEDs on the phone itself. The settings are stored on the phone and will remain stored there
when the expansion module is disconnected; if the expansion module is replaced by another module,
the settings will by used by that module. For more information on the available functions and on how
to program and use the keys, please refer to the phone's manual, chapter "Programming the Function
Keys". You can download the manual at https://service.snom.com -> Desk Phones.

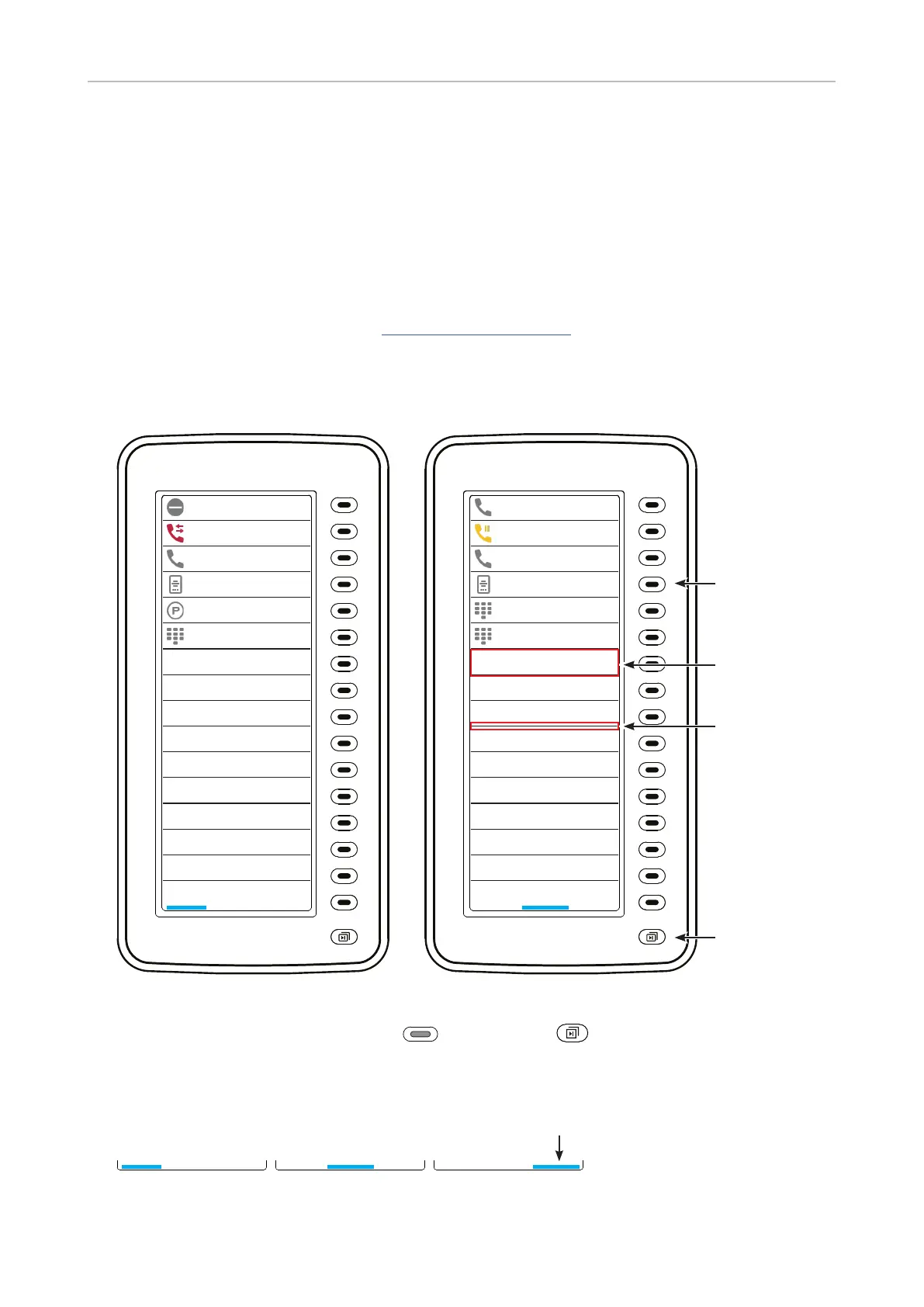

Display layout
DND
O 
Extension
1234
Extension
1235
Intercom
Mary
Park
Speed dial
123456789012
Line
Free
Line
Free
Line
Free
Line
Free
Line
Free
Line
Free
Line
Free
Line
Free
Line
Free
Line
Free
Extension
1236
Extension
1244
Extension
1240
Intercom
Tom
Speed dial
123890145672
Speed dial
123456733654
Line
Free
Line
Free
Line
Free
Line
Free
Line
Free
Line
Free
Line
Free
Line
Free
Line
Free
Line
Free
Fig. 1 Fig. 2
The module has 16 function keys with LED and a page key for scrolling through the three
function key pages. A eld on the display screen is allocated to each key, and the text can be left-
aligned, as shown in Fig. 1, or right-aligned, as shown in Fig. 2. The blue line at the bottom of the
screen indicates which page is on-screen (Fig. 3).
Page indicator
DND
O 
Extension
1234
Extension
1235
Intercom
Mary
Park
Speed dial
123456789012
Line
Free
Line
Free
Line
Free
Line
Free
Line
Free
Line
Free
Line
Free
Line
Free
Line
Free
Line
Free
Extension
1236
Extension
1244
Extension
1240
Intercom
Tom
Speed dial
123890145672
Speed dial
123456733654
Line
Free
Line
Free
Line
Free
Line
Free
Line
Free
Line
Free
Line
Free
Line
Free
Line
Free
Line
Free
Extension
1236
Extension
1244
Extension
1240
Intercom
Tom
Speed dial
123890145672
Speed dial
123456733654
Line
Free
Line
Free
Line
Free
Line
Free
Line
Free
Line
Free
Line
Free
Line
Free
Line
Free
Line
Free
Page 1 Page 2 Page3
Fig. 3
LED key
Fkey separator
Fkey label
Page key
