Snom D7C User Manual Function key numbering system
Function key numbering system
Denitions
fkey idx: XML mass provisioning
PUI: Phone user interface (Settings > Preferences > Fkeys)

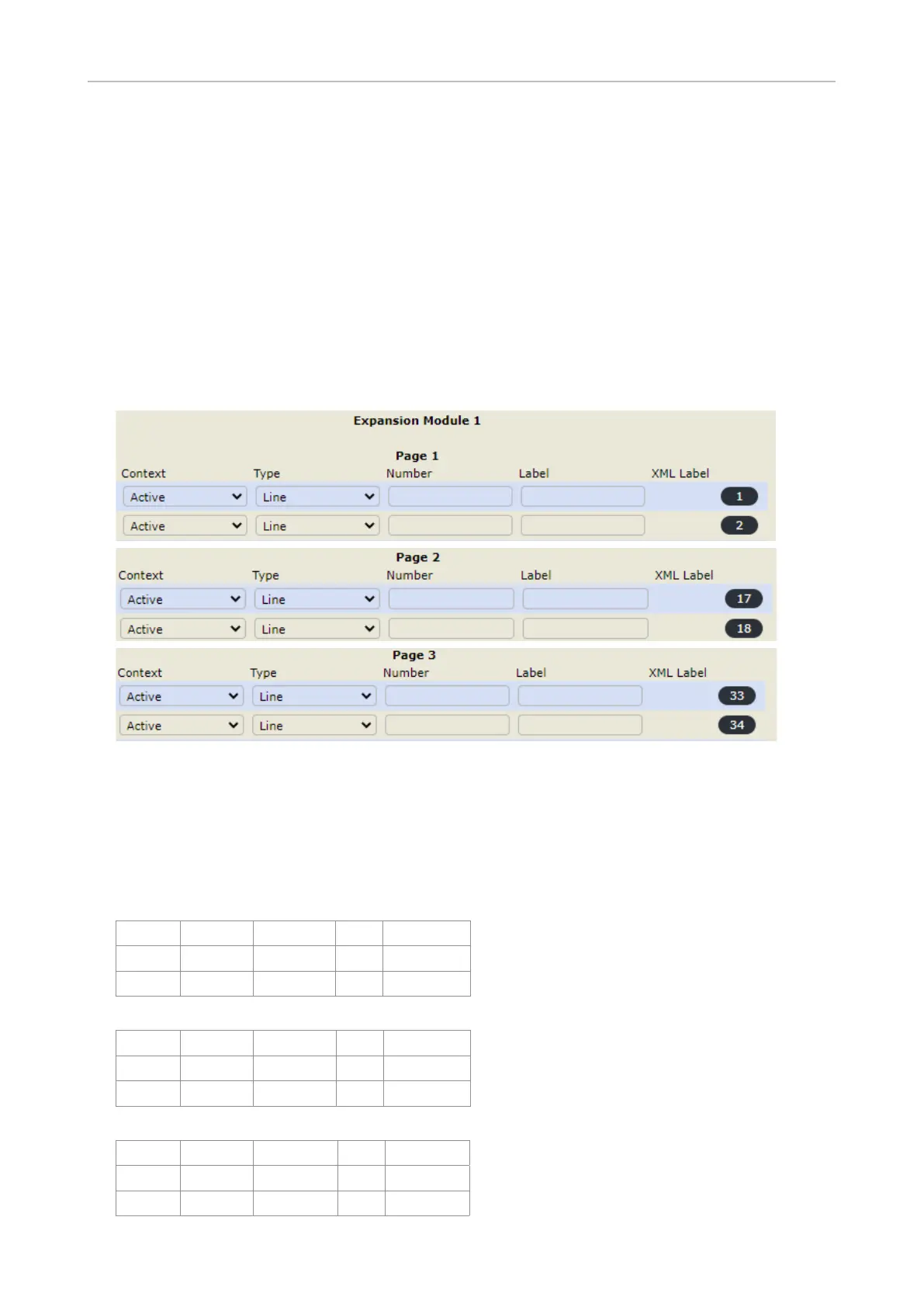

WUI: Web user interface (Function Keys page). The keys on the three pages of each module
are numbered consecutively on each module:
Page 1: 1–16
Page 2: 17–32
Page 3: 33–48
9.12.2020 D7C_config_1.png
https://mail.google.com/mail/u/0/#inbox/CllgCHrdkvGJQplKkpgwkjKZwnJTKkDbnwtQkXxJfmXVKFcshldksCQkTCLJhhBBkhphQbjjTNB?projector=1&messagePartId=0.1 1/2
D717
• SmartLabel keys on phone
◦ fkey idx: 0–2
◦ PUI: 1–3
◦ WUI: P1–P3
• D7C expansion module 1
Page 1 fkey idx 3–18 PUI 4–19
Page 2 fkey idx 19–34 PUI 20–35
Page 3 fkey idx 35–50 PUI 36–51
• D7C expansion module 2
Page 1 fkey idx 51–66 PUI 52–67
Page 2 fkey idx 67–82 PUI 68–83
Page 3 fkey idx 83–98 PUI 84–99
• D7C expansion module 3
Page 1 fkey idx 99–114 PUI 100–115
Page 2 fkey idx 115–130 PUI 116–131
Page 3 fkey idx 131–146 PUI 132–147
