Chapter 4 – Safety Devices
S2255RT S2755RT - 15286-1 17

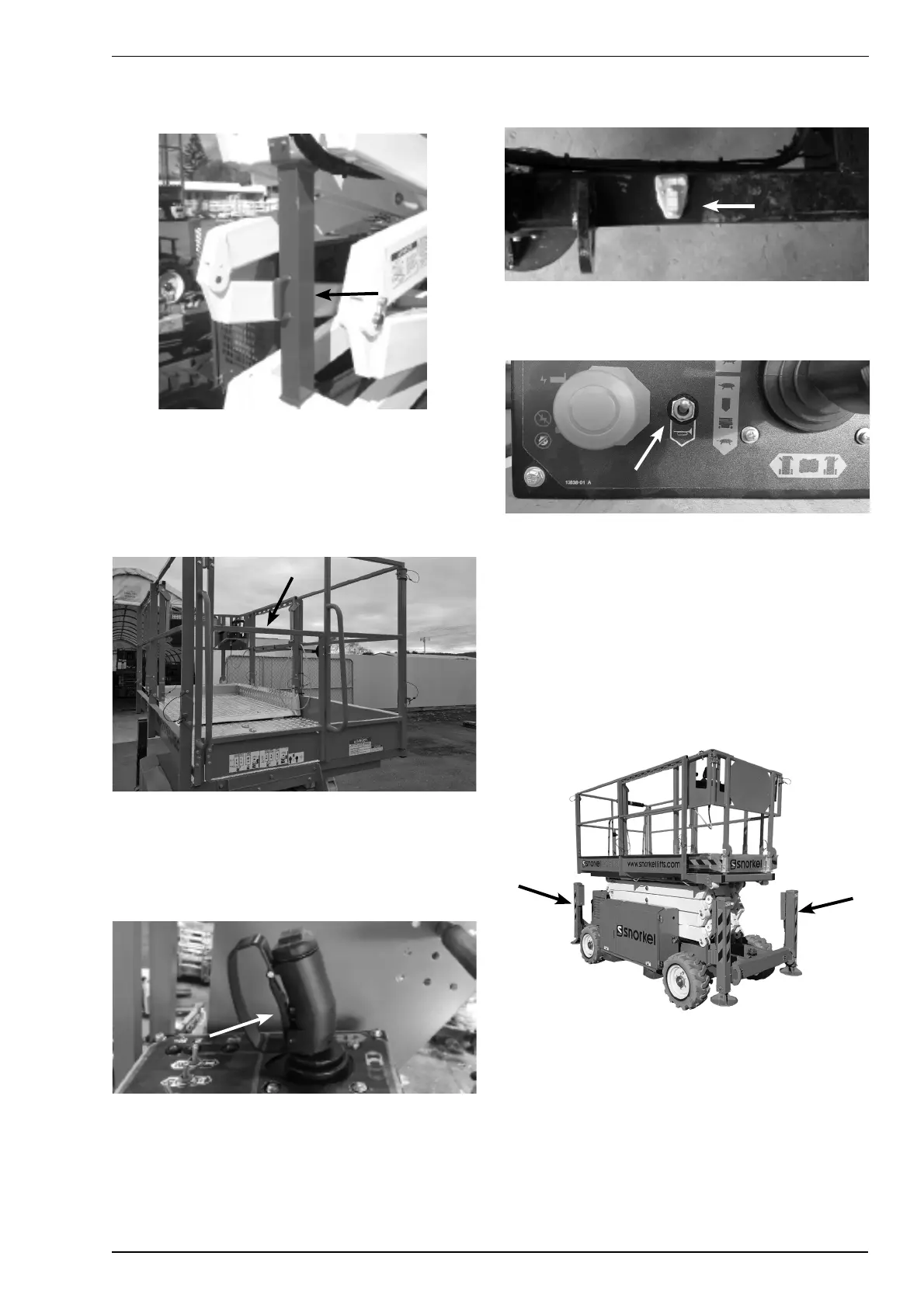

Safety Prop
Figure 4.6 – Safety Prop
Always raise the safety prop then lower the scissor arm
assembly onto the safety prop before reaching into the
scissor arm assembly for any reason.
Swinging Gate
Figure 4.7 – Swinging Gate
The swinging gate should be closed all times except
when someone is entering or leaving the platform.
Interlock Switch
Figure 4.8 – Joystick Interlock Switch
The interlock switch must be squeezed and held to
activate the joystick. The interlock switch prevents the
joystick from moving the platform if something acciden-
tally pushes the joystick. Do not attempt to disable the
interlock switch in any way.
Bubble Level
Figure 4.9 – Bubble Level
Operator Horn
Figure 4.10 – Operator Horn
The operator horn is used primarily to get the attention
of people on the ground when you are working aloft. for
the horn to work, the following switches on the ground
control box, must be set as indicated.
MAIN POWER.................................ON
EMERGENCY STOP.......................ON (out)
SELECTOR.....................................PLATFORM
Stabilisers
Figure 4.11 – Stabilisers
The stabiliser controls are on the upper left side of the
platform control box. The stabilisers are used to level
the S2255RT / S2755RT.
Note
The S2255RT / S2755RT must be on a fi rm surface
capable of withstanding all load forces imposed by the
aerial platform in all operation conditions before the
stabilisers are used. For complete stabiliser operating
procedures see the Operations chapter.
