S2255RT S2755RT - 15286-1 21
The aerial platform is equipped with several gauges to
monitor the condition of the machine before and during
operation.
Diagnostic Center Display
The diagnostic center LCD display (refer to Figure 5.1)
is located on the lower part of the lower control panel.

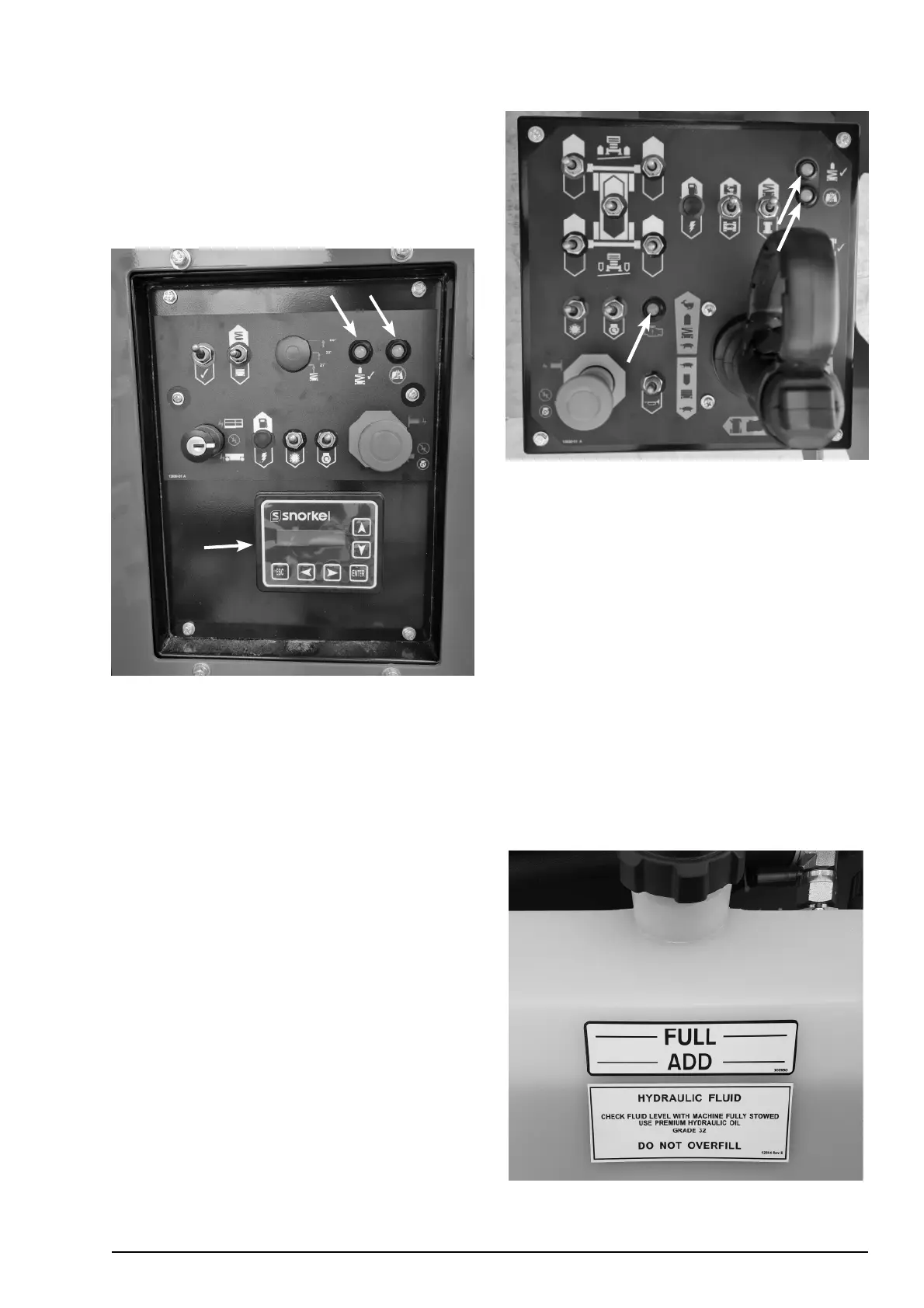

Figure 5.1 – Lower Controls
When the battery disconnect is in the on position and the
emergency stop button is enabled at the lower controls,
the LCD display shows:
• The accumulated aerial platform operating time.
This display is also used by service technicians to trou-
bleshoot and diagnose errors that may occur with the
machine operating system.
Platform Overload/Lift Enable Lights
There is a platform overload and a lift enable light on
the lower control panel (refer to Figure 5.1) and on the
upper control panel (refer to Figure 5.2).
Figure 5.2 – Upper Controls
If the aerial platform chassis is out of level more than
the machine specifi ed slope sensor alarm setting when
the scissor stack is raised or extended, an alarm will
sound and the lift enable light will no longer illuminate.
If the platform is at capacity or if platform capacity is
exceeded, the platform overload light on the lower and
upper control panels will illuminate.
Warning Light
There is one warning light on the middle of the upper
control panel (refer to Figure 5.2). The warning lights
indicate messages to the machine operator as indicated:
• Red – Stop the operation of the machine as quickly
as possible to reduce damage to the motor.
Hydraulic Oil Tank
Figure 5.3 Hydraulic Oil Tank
Chapter 5 – Gauges and Displays
