Fall Restraint Lanyard Anchor Points
All fall restraint lanyard anchor points on Snorkel aerial work platforms have been tested with a force of 3,650 lbs (16.3 kN)
per person.

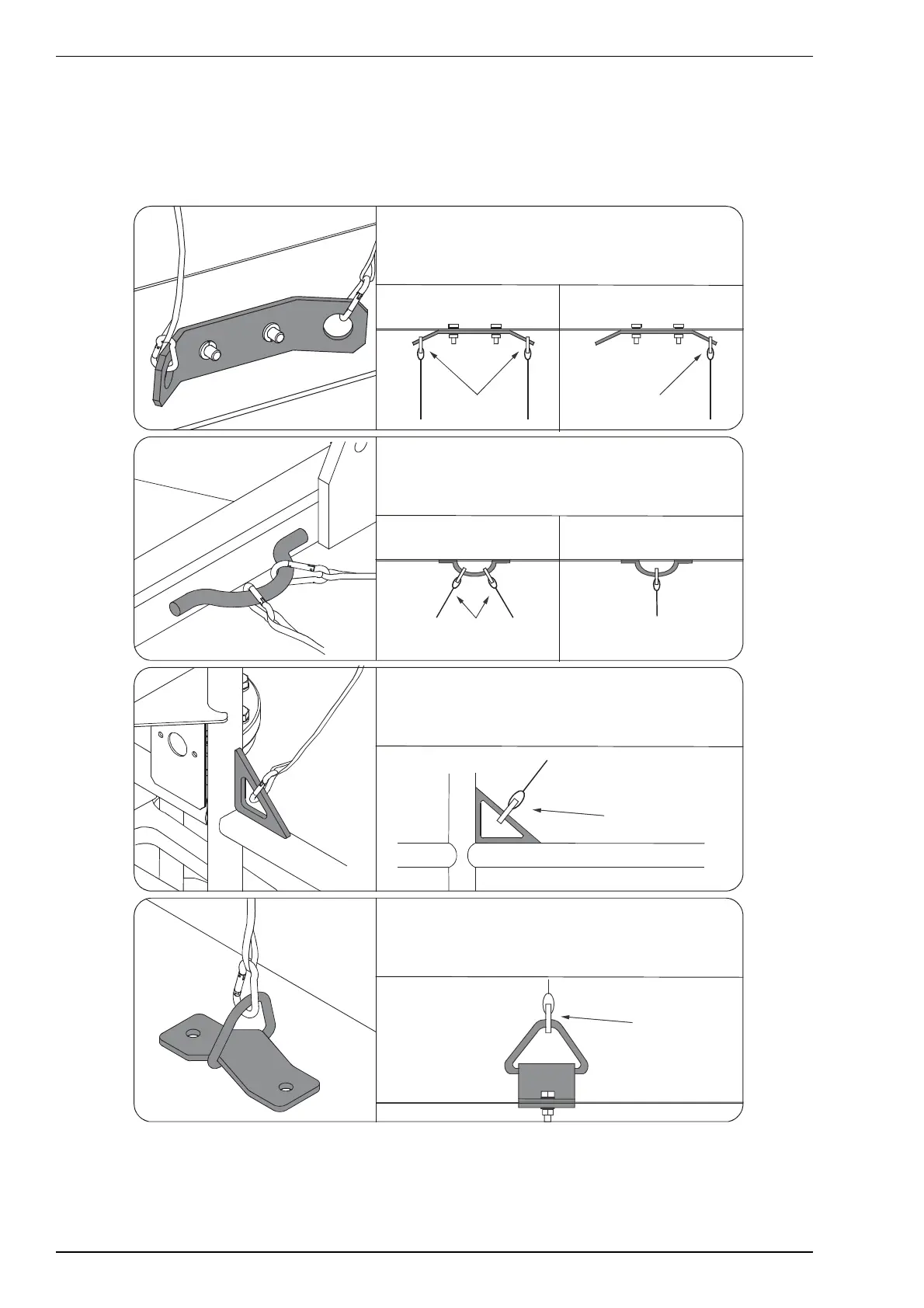

See below examples of anchor points used on Snorkel machines with their corresponding per person rating.
NOTE: There can be more anchor points in the platform than the maximum number of occupants allowed in the
platform. Refer to the machine specifi cations for the correct occupancy rating before use.
Type 1
Type 2
Type 3
Type 4
Top View
Top View
Top View
Top View
Front View
Front View
Anchor point Type 1 is rated for one lanyard
attachment per loop. Refer to machine “Specifi ca-
tions” and platform decals for maximum number of
platform occupants.
Two Lanyards
Attached
One Lanyard
Attached
Anchor point Type 2 is rated for two lanyard
attachments per loop. Refer to machine “Specifi ca-
tions” and platform decals for maximum number of
platform occupants.
Two Lanyards
Attached
One Lanyard
Attached
Anchor point Type 3 is rated for one lanyard
attachment per loop. Refer to machine “Specifi ca-
tions” and platform decals for maximum number of
platform occupants.
One Lanyard
Attached
One Lanyard
Attached
Anchor point Type 4 is rated for one lanyard
attachment per loop. Refer to machine “Specifi ca-
tions” and platform decals for maximum number of
platform occupants.
