S2646E/S3246E – 0410051 15
The aerial platform is equipped with several gauges to
monitor the condition of the machine before and during
operation.
Hour Meter
The hour meter is located on the lower control panel (re-
fer to Figure 5.1). It measures the accumulated aerial
platform operating time.

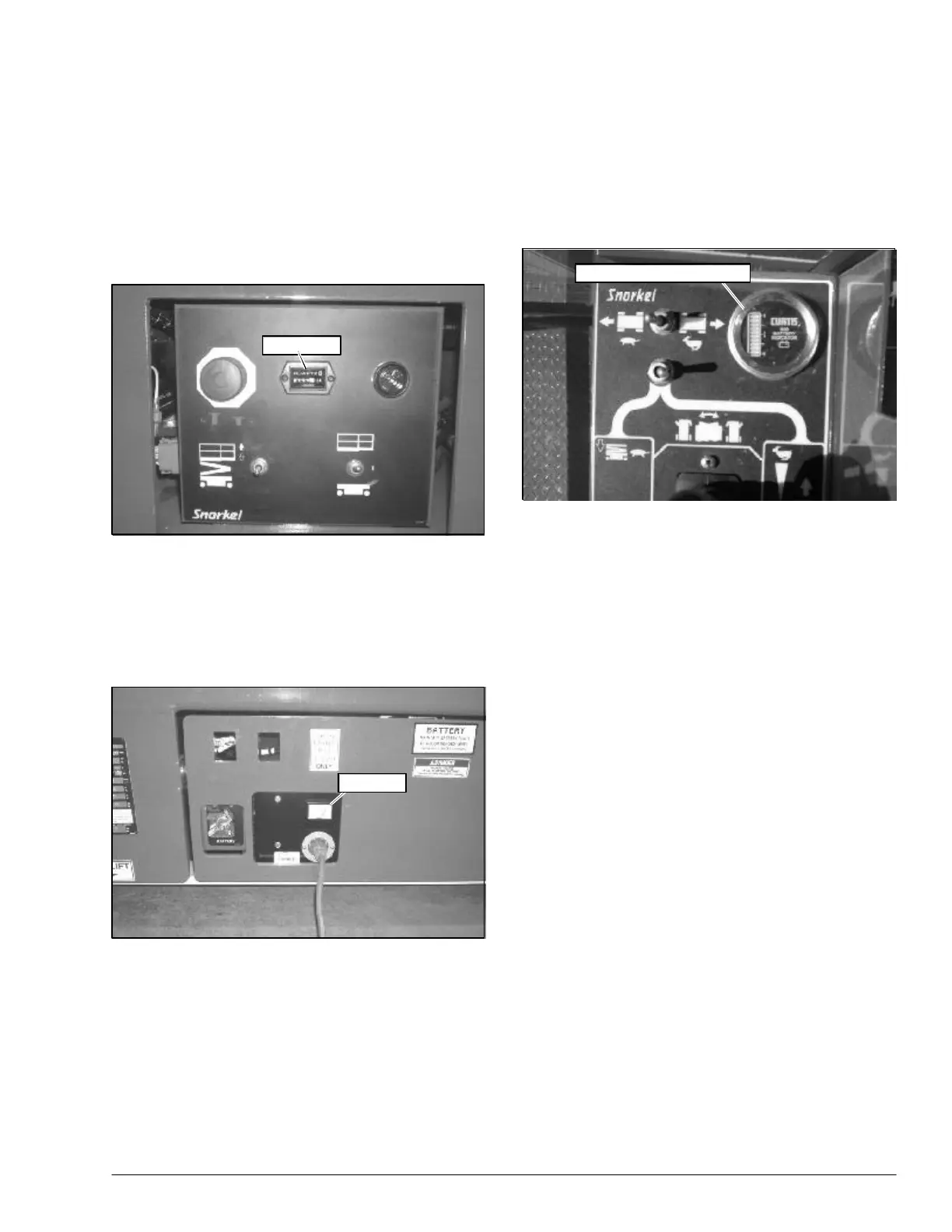

Figure 5.1 – Lower Controls
Ammeter
The ammeter is located on the battery charger (refer to
Figure 5.2). When the batteries are charging, the amme-
ter displays the level of current flow from the charger to
the batteries.
Figure 5.2 – Battery Charger
Battery Condition Indicator
The optional battery condition indicator (refer to Figure
5.3) is located on the upper control panel. It displays the
level of available battery power to operate the aerial plat-
form. The number one on the scale indicates full power
and zero indicates no power.
Figure 5.3 – Battery Condition Indicator
Chapter 5 – Gauges and Displays
Hour Meter
Ammeter
Battery Condition Indicator
