Chapter 9 – Operation
S2646E/S3246E – 0410051 37
The tray on the right side of the chassis contains the
lower controls, brake release hand pump, hydraulic di-
rectional control valve, hydraulic pump, reservoir, and the
hydraulic fluid filter. The tray on the left side contains the
four batteries and the battery charger.
Danger
The aerial platform can tip over if it becomes un-
stable. Death or serious injury will result from a tip-
over accident. Do not open the trays when the plat-
form is raised more than eight feet.
To open a tray, raise up on the latch and swing the tray
open.
Electrical Power Outlet
The electrical power outlet has two, 3-prong, 125 volt AC
electrical connectors (refer to Figure 9.8). Their combined
output is limited by a 15 amp circuit breaker.

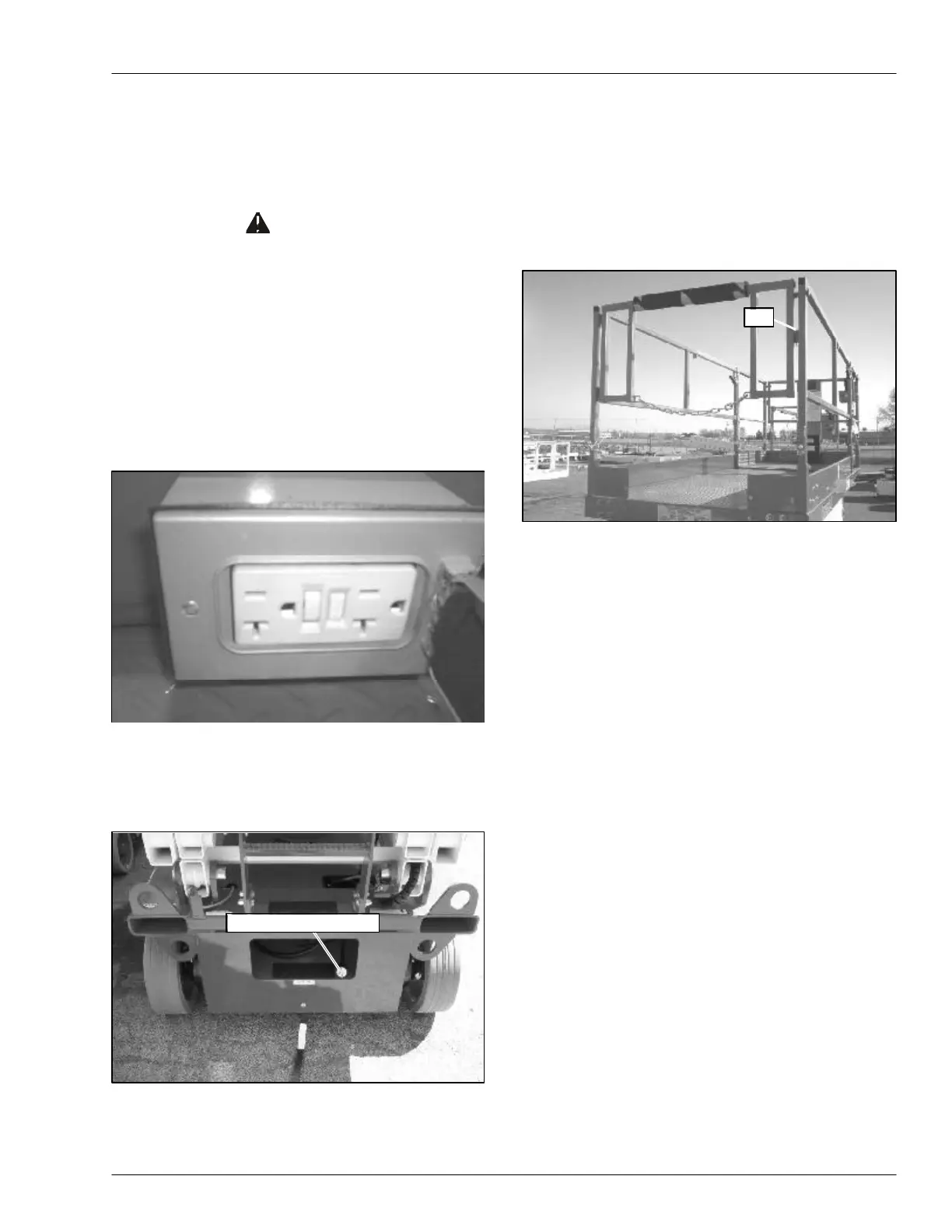

Figure 9.8 – Electrical Power Outlet
Power is supplied to the outlet by connecting an external
power source to the power-input connector at the rear of
the chassis (refer to Figure 9.9).
Figure 9.9 – Rear of Chassis
To use the outlet, plug a source of power into the power-
input connector. Unplug the source of power before mov-
ing the aerial platform.
Wallboard Loading
The platform gate (refer to Figure 9.10) may be used for
loading wallboard or other material. It is hinged on the left
side of the platform and is pinned on the right.
For easy loading of work materials in the platform, re-
move the pin and swing the gate open. Close the gate
and replace the pin after loading the platform.
Figure 9.10 – Platform Gate
Pin
Power-Input Connector
