socomec COUNTIS E21 User Manual

11EN
COUNTIS E21/E22 - 545875B - SOCOMEC

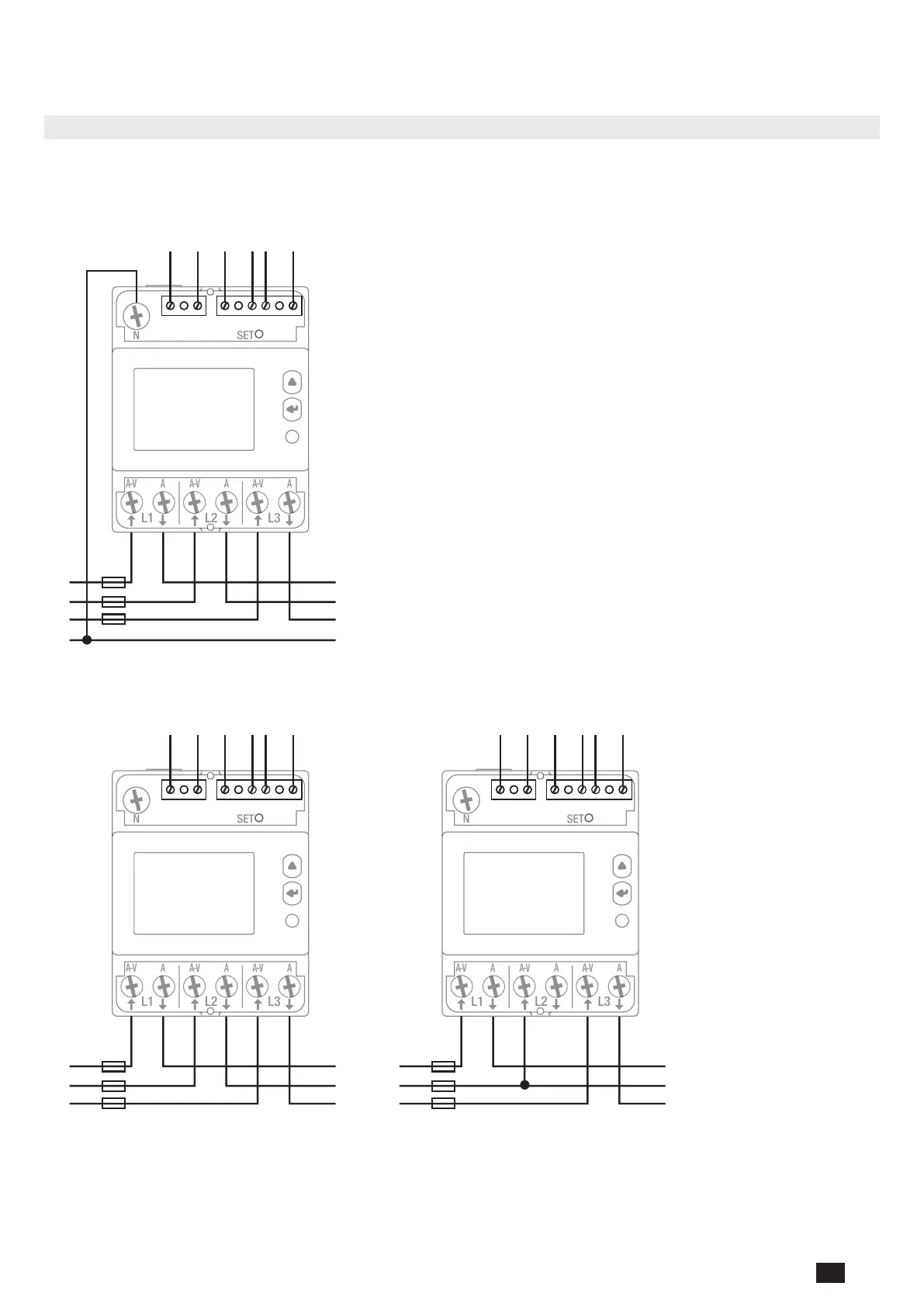

6.2. Connection to the electrical network and to the loads
The COUNTIS E21/E22 are intended for three-phase networks with or without neutral.
3 phases, 4 wires, 3currents
SET
N
A
A-V
A
A-V
A
A-V
L1
L2
L3
L1
L2
L3
N
3 x 80A
230/400 VAC 50/60 Hz
1 2 3 4 5 6
O1 O2T1/2
Price list
1-2: Switch tariffs:
0 VAC/DC -> Tariff 1
80-276 VAC/DC -> Tariff 2
Pulse output 1
3-4: Ea+
Pulse output 2
5-6: Er+
Optocoupler pulse output 250VAC/DC (100mA)
Mains
L1 A-V: Phase input
L1 A: Phase output
L2 A-V: Phase input
L2 A: Phase output
L3 A-V: Phase input
L3 A: Phase output
N: Neutral connection
3 phases, 3 wires, 3currents 3 phases, 3 wires, 2currents
SET
N
A
A-V
A
A-V
A
A-V
L1
L2
L3
L1
L2
L3
3 x 80A
1 2 3 4 5 6
O1 O2T1/2
SET
N
A
A-V
A
A-V
A
A-V
L1
L2
L3
L1
L2
L3
3 x 80A
1 2 3 4 5 6
O1 O2T1/2
