COUNTIS E45/E46 - 547983A - SOCOMEC
4. INTRODUCTION
4.1. Introducing the COUNTIS E45/E46
The COUNTIS E45/E46 are modular active and reactive electrical energy meters that displays consumed and produced energy.
They are designed for three-phase networks and can be connected using a CT 1/5 A on installations up to 12000 A.
4.2. Functions
• Measures and displays bidirectional total and partial energy
• Four tariff management : T1 / T2 / T3 / T4
• Pulse output
• Electrical parameter measurements: I, U, V, f
• Bidirectional Power, power factor
• M-Bus communication
• MID
Description Reference
COUNTIS E45 4850 3067
COUNTIS E46 4850 3068

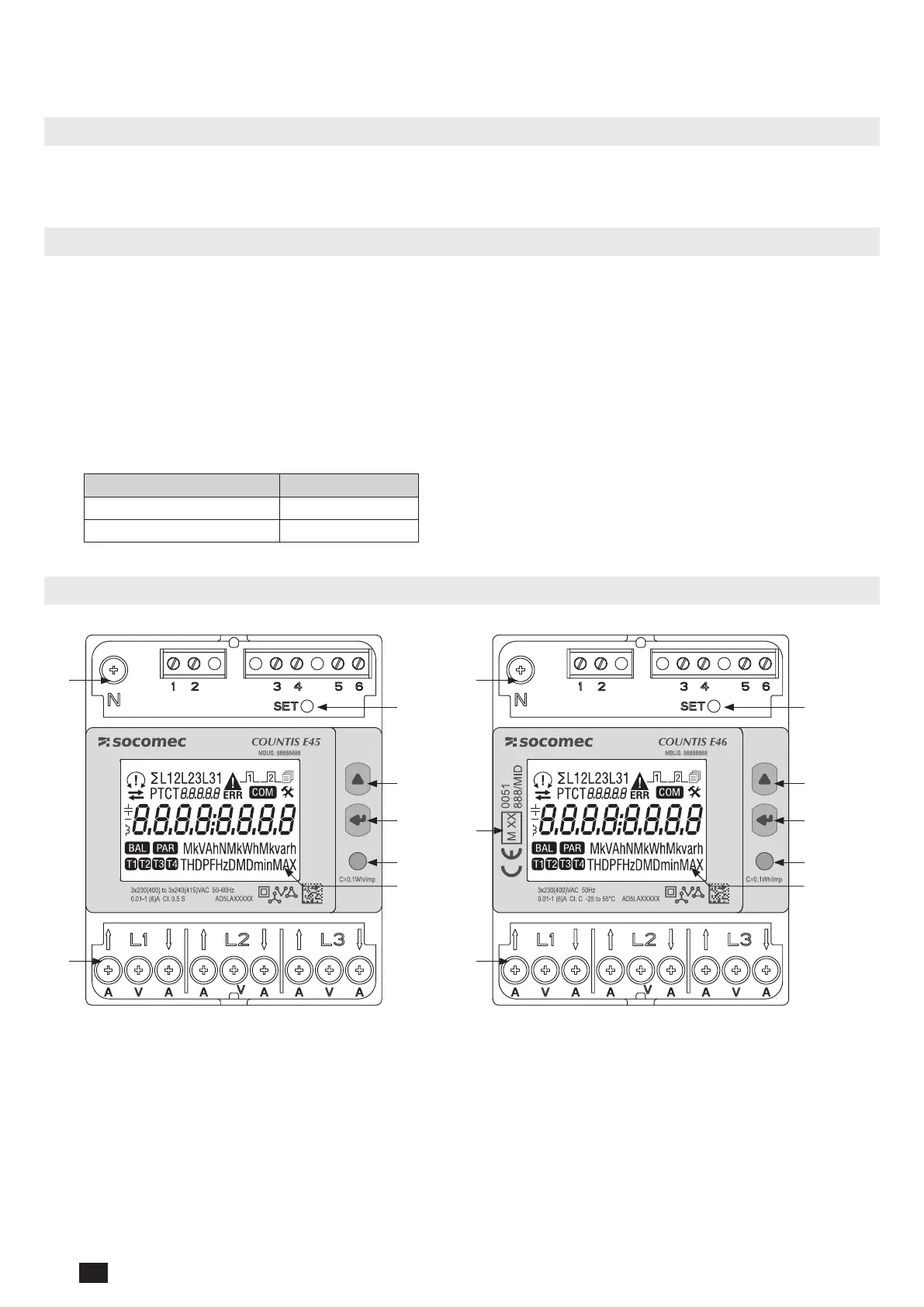

4.3. Front panel
1. SET button
2. UP button
3. ENTER key
4. Metrological LED
5. LCD display
6. Current and voltage terminals
7. Information relating to MID certication
8. Neutral connection
1. SET button
2. UP button
3. ENTER key
4. Metrological LED
5. LCD display
6. Current and voltage terminals
7. Neutral connection
7
66
87
11
22
33
44
55
