18
MASTERYS BC 15-40 kVA - Ref.: IOMMASBCXX09-EN 01
2.10-1
2. UNPACKING AND INSTALLATION OF THE UNIT
2.10. CONTROL CONNECTIONS
In order for units connected in a parallel configuration to operate correctly, control cables are required to exchange data between
the various UPS units making up the parallel system, for management of correct load sharing and synchronisation logic.
The cables in question are supplied with the UPS in the case of a standard parallel setup or are attached to the parallel kit in the
case of a later system upgrade.
Parallel configuration must only be activated by SOCOMEC qualified personnel; in each case arrange the control cables in
the relevant cable run as shown in figure 2.9.4-1, leaving the connector(s) unconnected (in the central UPS one incoming and one
outgoing control cable must be used).

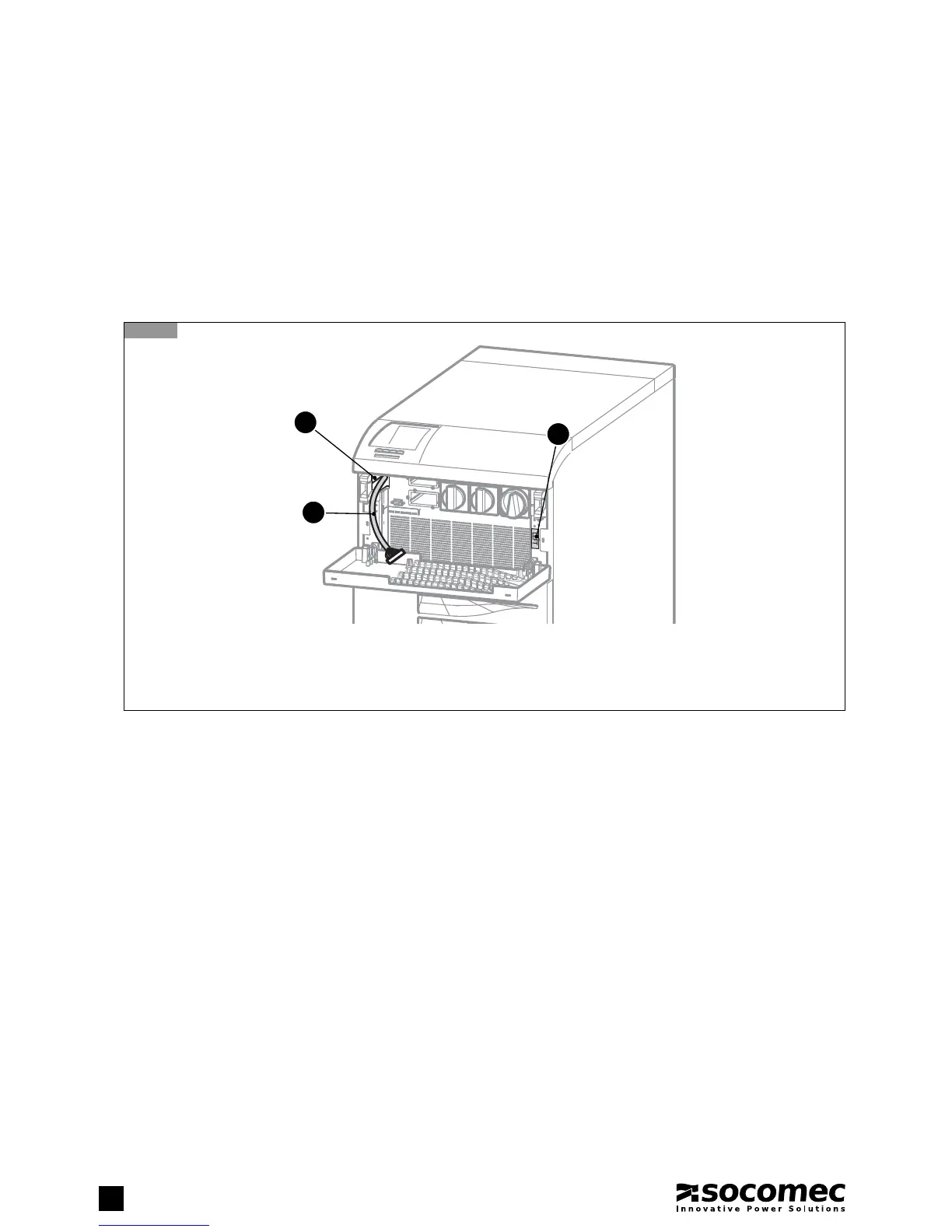

A
B
C
Key
A Control cable run
B Parallel bus cable; leave approx. 20cm cable length at the exit of the cable run
C Label for unit positioning
