socomec MASTERYS BC 15 User Manual

44
MASTERYS BC 15-40 kVA - Ref.: IOMMASBCXX09-EN 01

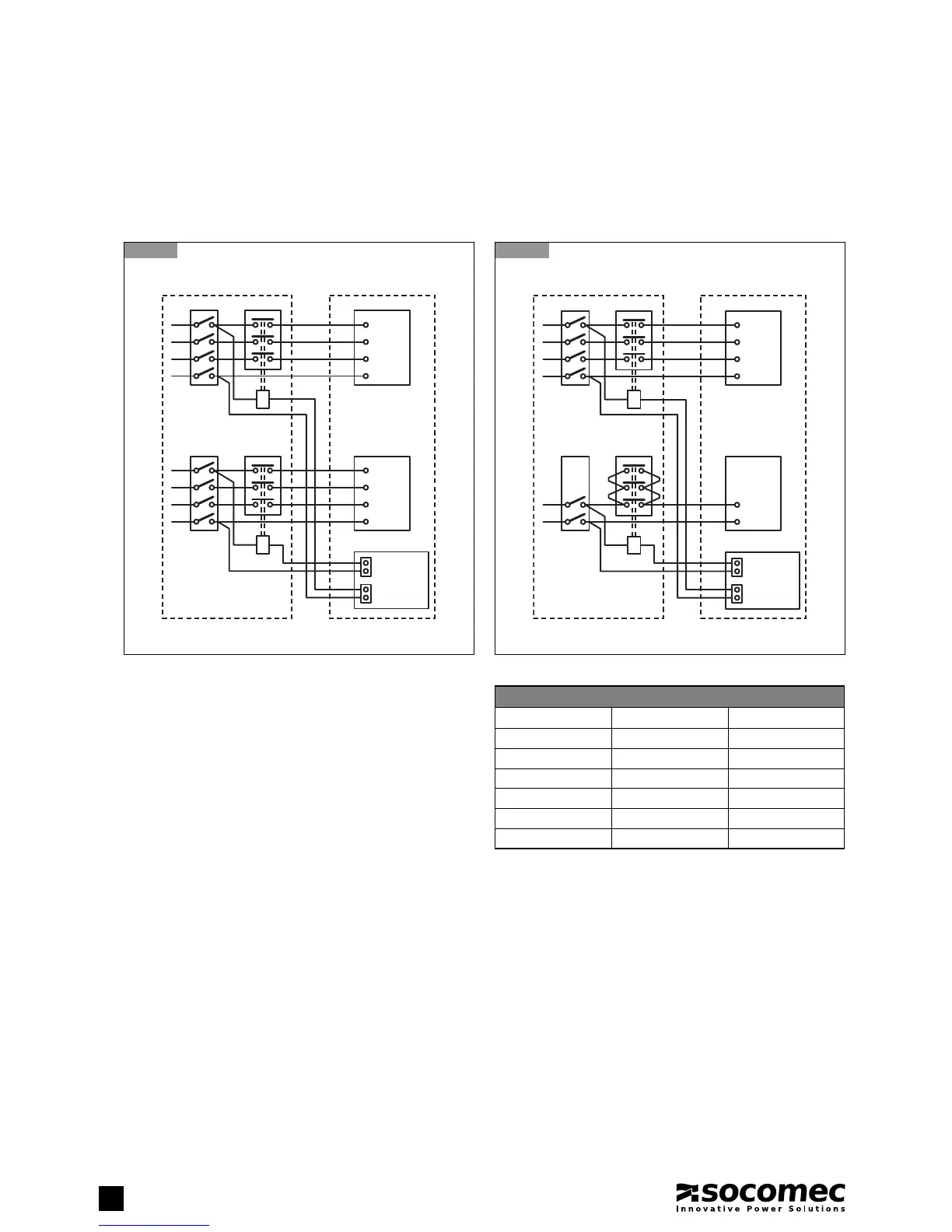

10.6-1
UPS 3/3 with separate auxiliary supply
10.6-2
UPS 3/1 with separate auxiliary supply
A UPS
L11
Q2
L21
L31
N1
T2
B
M2
L11
L21
L31
N1
XB1
XB2
BKF card
L1
Q1
L2
L3
N
T1
B
M1
L1
L2
L3
N
A UPS
Q2
L11
N1
T2
B
M2
L11
N1
XB1
XB2
BKF card
L1
Q1
L2
L3
N
T1
B
M1
L1
L2
L3
N
10. ELECTRICAL OPTIONS
Key
A Distribution panel
B Remote coil switch
L1-L2-L3-N Input power source
L11-L21-L31-N1 Backup power source
M1 Input power terminal board
M2 Backup power terminal board
T1 Remote switch
1
T2 Remote switch
1
Q1 Input power switch
Q2 Backup power switch
XB1 Connector on BKF PCB
XB2 Connector on BKF PCB
1
Remote switches - rated current
Model T1 T2
15 3/1 32 A AC1 45 A AC1
15 3/3 32 A AC1 90 A AC1
20 3/1 45 A AC1 60 A AC1
20 3/3 45 A AC1 45 A AC1
30 3/3 60 A AC1 60 A AC1
40 3/3 90 A AC1 90 A AC1
10.6. PROTECTION ON THE SEPARATE AUXILIARY MAINS
Activating UPS protection on the mimic panel: access the UPS SETTING menu on the mimic panel (see the UPS SETTING menu
under the SERVICE menu section of the manual) and set the SET BACKFEED parameter to 1.BYPASS.
Cable and trunk schematic
