MASTERYS BC 15-40 kVA - Ref.: IOMMASBCXX09-EN 01
5. CONTROL PANEL
The HMI (Human Machine Interface) displays information regarding operating status, electrical measurements, access to control
functions and confi guration parameters. It includes graphic display and a luminous status bar, and provides access to:
• mimic panel;
• measurements and alarms;
• changing UPS operating modes and programming battery tests;
• assisted startup and switching on maintenance bypass procedures;
• settings menu;
• list of events and statistics.

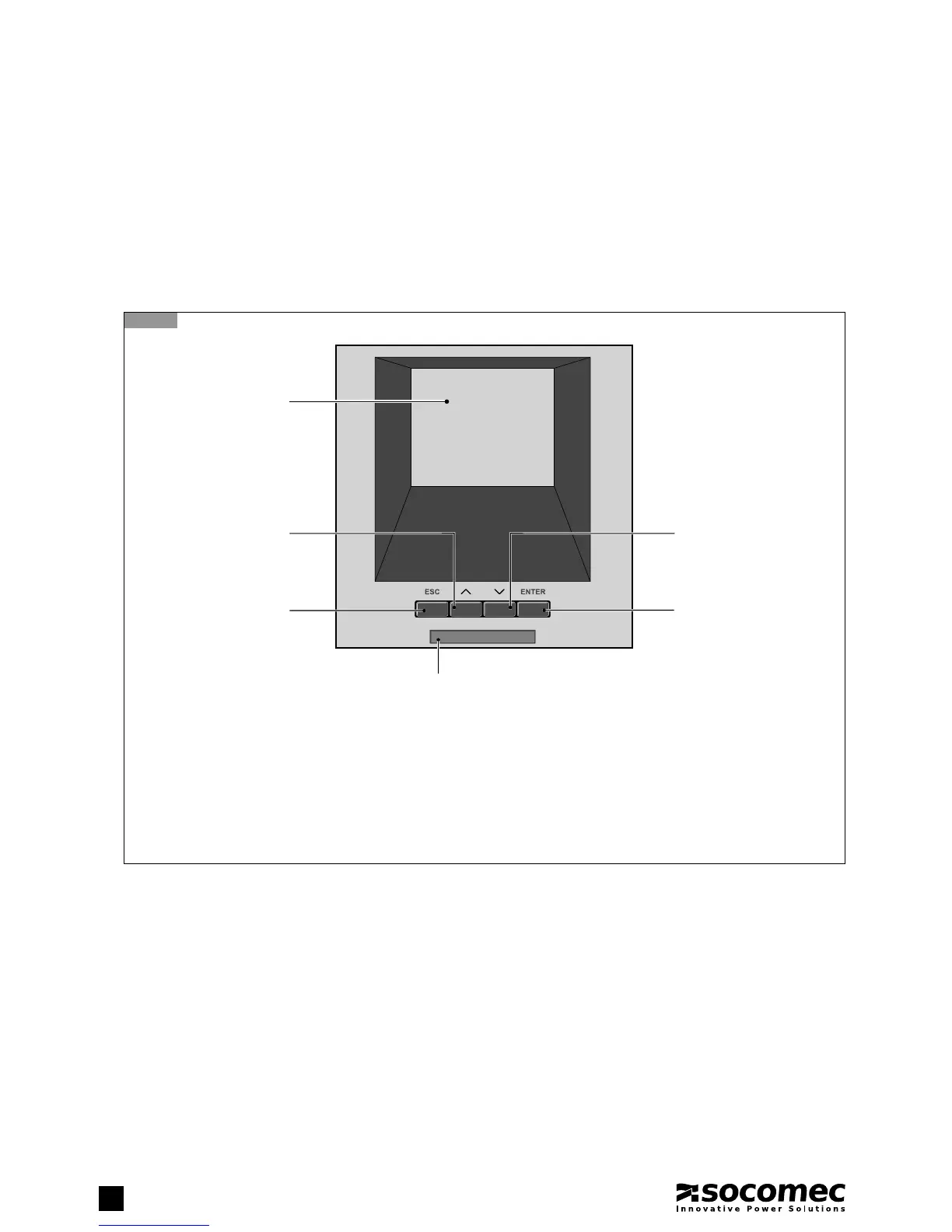

5-1
UP button
Scrolls up through the
available menus/values.
DOWN button
Scrolls down through the
available menus/values.
Luminous status bar
Changes colour according to UPS status.
- Flashing red: imminent UPS shutdown
- Red: Load not powered or battery circuit open
- Flashing yellow: UPS in standby mode or maintenance alarm is active
- Yellow: UPS on battery or general alarm
- Flashing green: battery test is in progress
- Green: the load is supplied
- O : inactive UPS
ENTER button
Accesses the currently
displayed menu, accepts/
sends confi gurations and
commands.
ESC button
Exit current page,
abort operations.
Display
