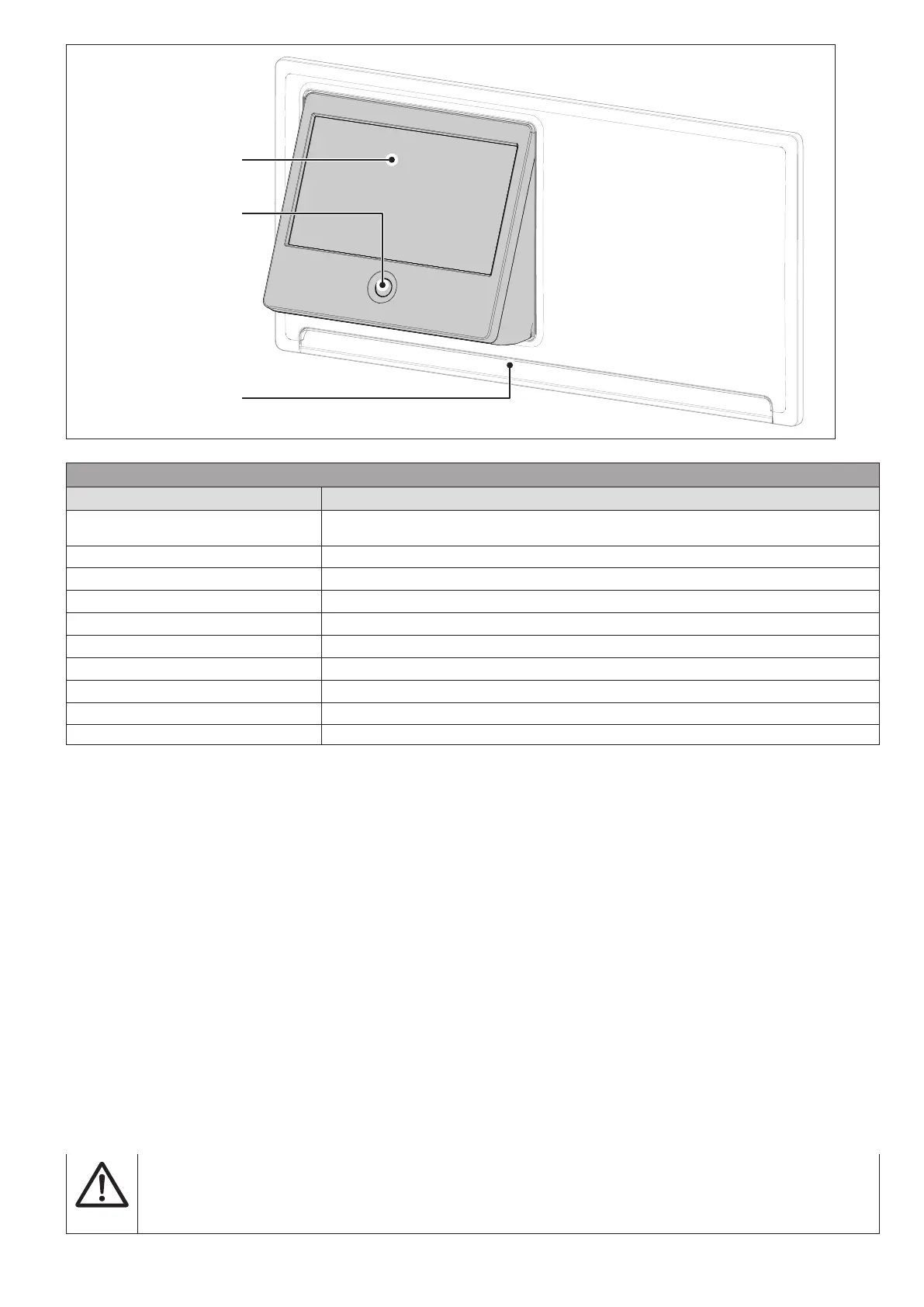

Display
HOME button
Luminous status bar
Control panel with LED status bar indicator
Colour Description
Flashing red-yellow-green-red
No communication. The data is no longer updated or not present.
Load status cannot be given.
Flashing red Load supplied, but the output will stop in few minutes.
Red Load not supplied: Output switched OFF due to an alarm.
Flashing yellow-red Load supplied, but no longer protected. A critical alarm occurs.
Flashing yellow Maintenance requested / or service mode in progress.
Yellow Load supplied with warning.
Flashing green-yellow-green Load supplied and preventive alarm present.
Flashing green Load going to be supplied, battery test in progress or UPS auto-test running.
Green
Load protected by inverter.
Grey (OFF) Load not supplied: output on standby / isolated / OFF.
Handle the control panel with care. It is made of metal, glass and plastic and contains delicate elec-
tronic components. The control panel may be damaged if dropped, pierced or broken or comes into
contact with liquids.
Do not use the control panel with a cracked screen, as it may cause injury.
