socomec STATYS User Manual

STATYS
Jbus / Modbus serial link
OPMSTAJB0810-GB_01 5
ENGLISH

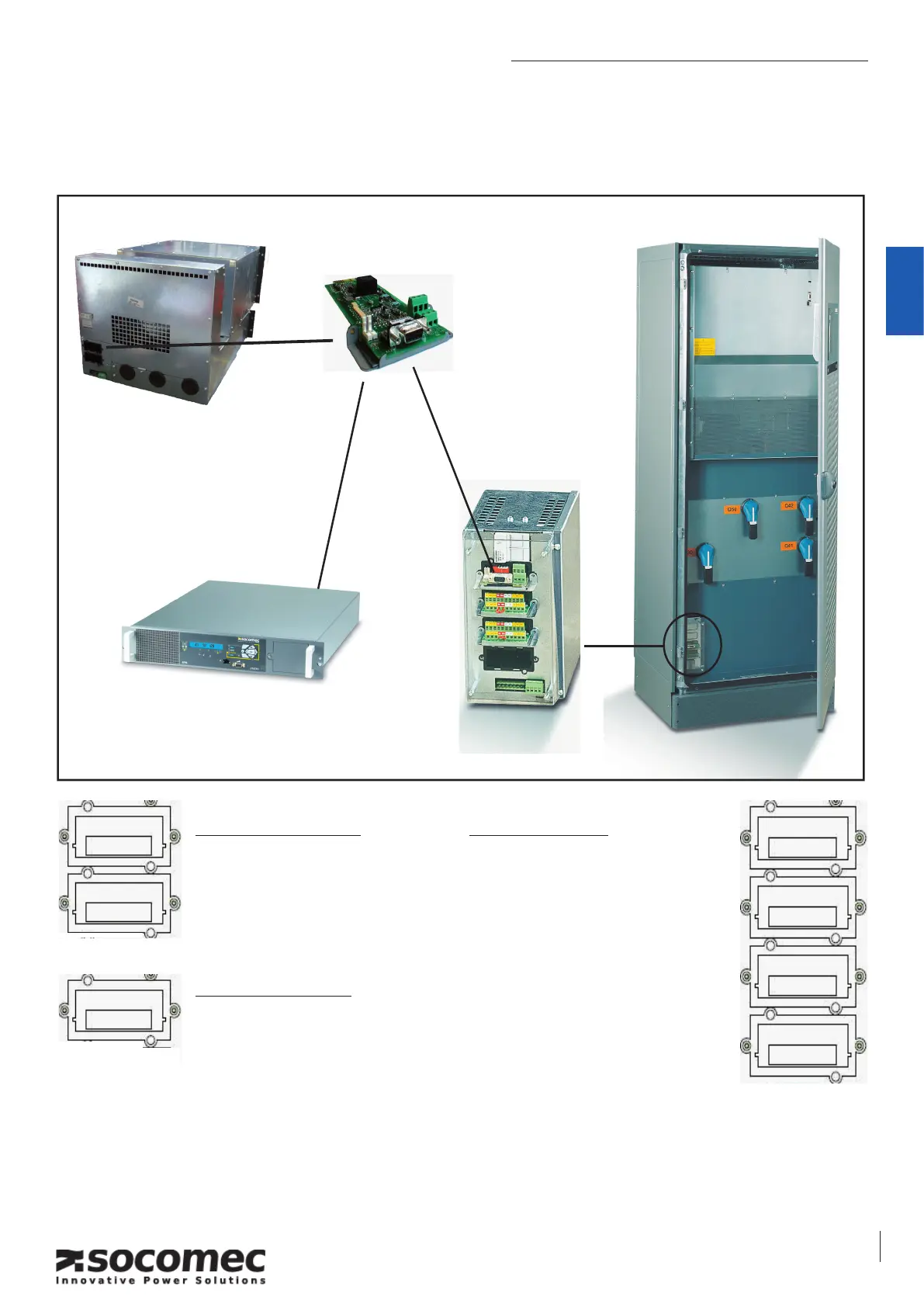

5. JbuS/modbuS SerIal InterFace InStallatIon InSIde StatyS
5. 1. ‘com-SlotS’ localISatIon
5. 2. JbuS/modbuS SerIal InterFace plug In
The serial interface should be plugged in the corresponding slot, and xed with 2 crews.
STATYS is able to manage only 1 JBUS/MODBUS interfaces.
SLOT 1
SLOT 2
SLOT 3
SLOT 4
SLOT 1
SLOT 2
SLOT 3
SLOT 4
SLOT 1
SLOT 2
SLOT 3
SLOT 4
STATYS 200/600A:
4 Com-Slots are present on the
rack slot, in front of the cabinet,
the slot 1 receive the serial card.
STATYS 63/100A rack:
2 Com-Slots are present at the
rear of the xed unit, the slot 1
receive the serial card.
STATYS 32/63A rack:
only 1 Com-Slots is present at
the rear of the products and
receive the serial card.
