Sofar HYD5000-ES - Optimal Inverter Mounting Location; Mounting the Inverter Unit

11 / 47
3.5. Installation Position
HYD-ES inverter should be vertically mounted (to ensure fast heat dissipation), please choose a position without direct
sunlight / snow accumulation to install HYD-ES inverter. Please the installation position is well-ventilated.
OK
NO

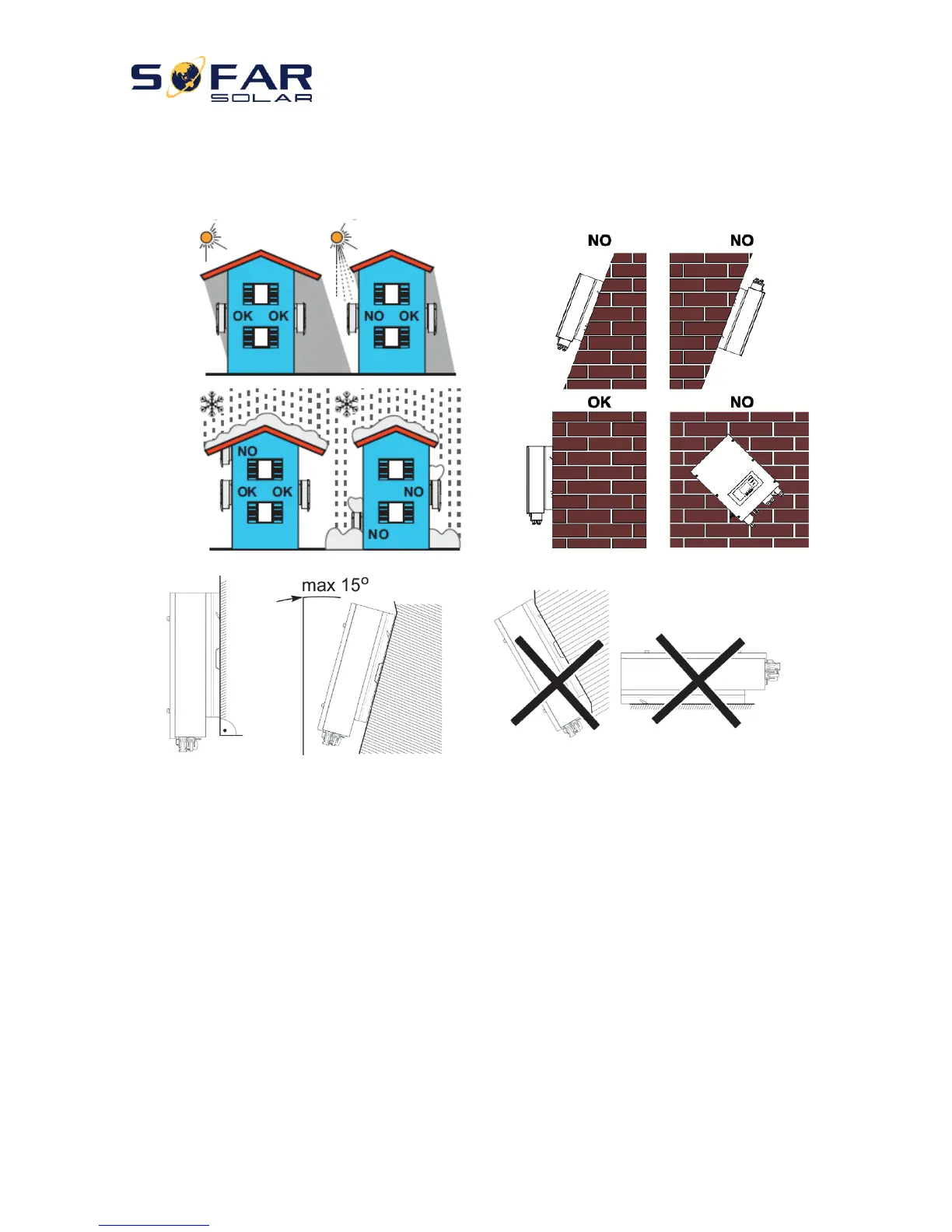

Fig. 4 Installation Position of HYD-ES inverter
3.6. Mount HYD-ES inverter
Step 1: Put the mounting bracket properly on the wall, mark these 8 drill holes using a marker pen. Drill 8 holes (drill
bit 6mm) on the wall.
Step 2: Insert the expansion screw vertically into the hole, note the insertion depth. (not too shallow or too deep)
Step 3: Fix the mounting bracket on the wall using bolts & flat washers.
