3. Installation
3.1. Product Overview
HYD-ES inverter is 100% strictly inspected before package and delivery. It is forbidden to put the HYD-ES inverter
upside down during delivery.
CAUTION
Please check the product package and fittings carefully before installation.

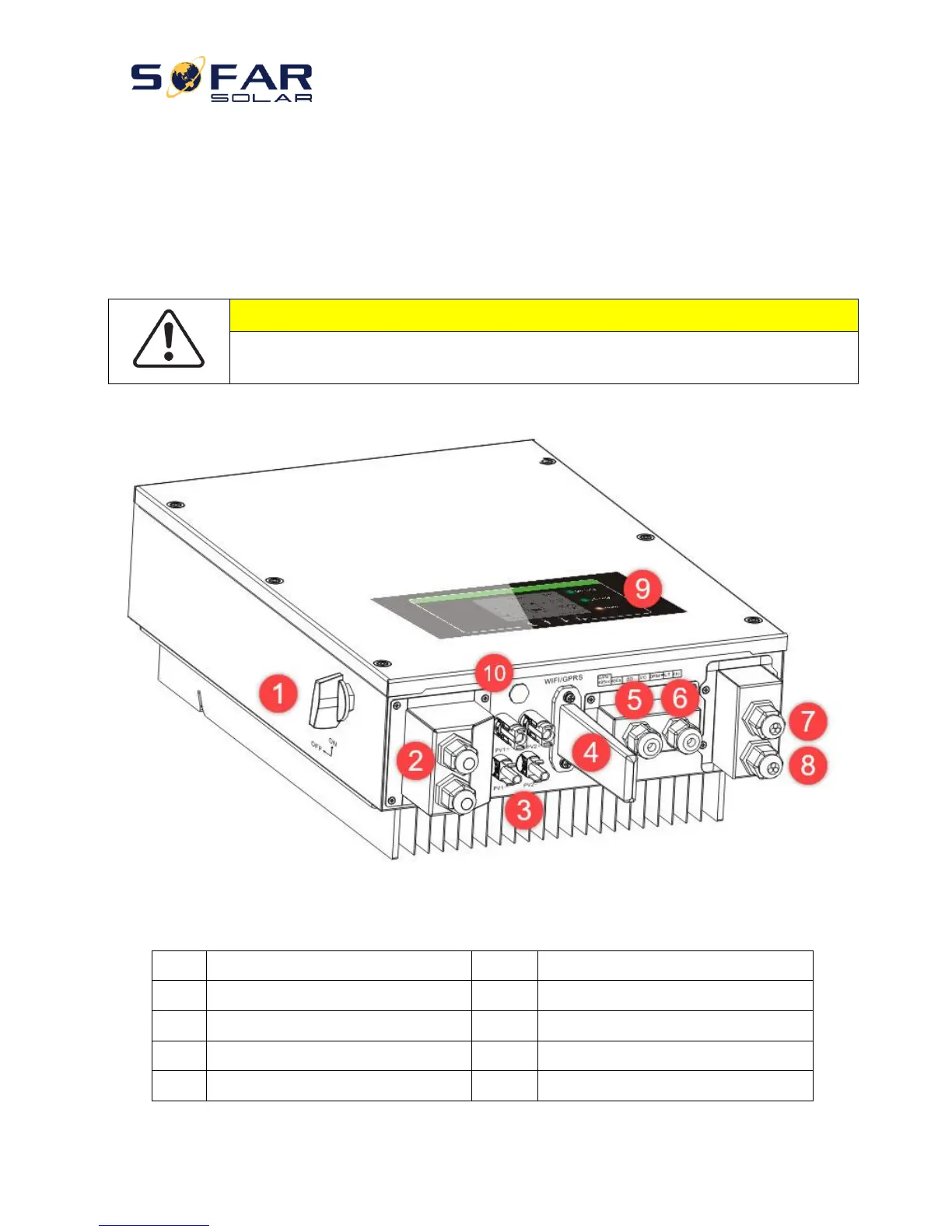

Fig. 2 HYD-ES inverter overview
1
DC switch
6
Current transformer port
2
Battery input terminals
7
Load connection port
3
PV input terminals
8
Grid connection port
4
Wi-Fi/GPRS stick
9
LCD
5
BMS communication port
10
breather valve
