3.3 Using the Tools Page
Clicking the Tools link at the top of the display will bring up the Tools page (See Figure 3.9). This page allows upgrading of the firmware
and rebooting the PSX-NL4 board.

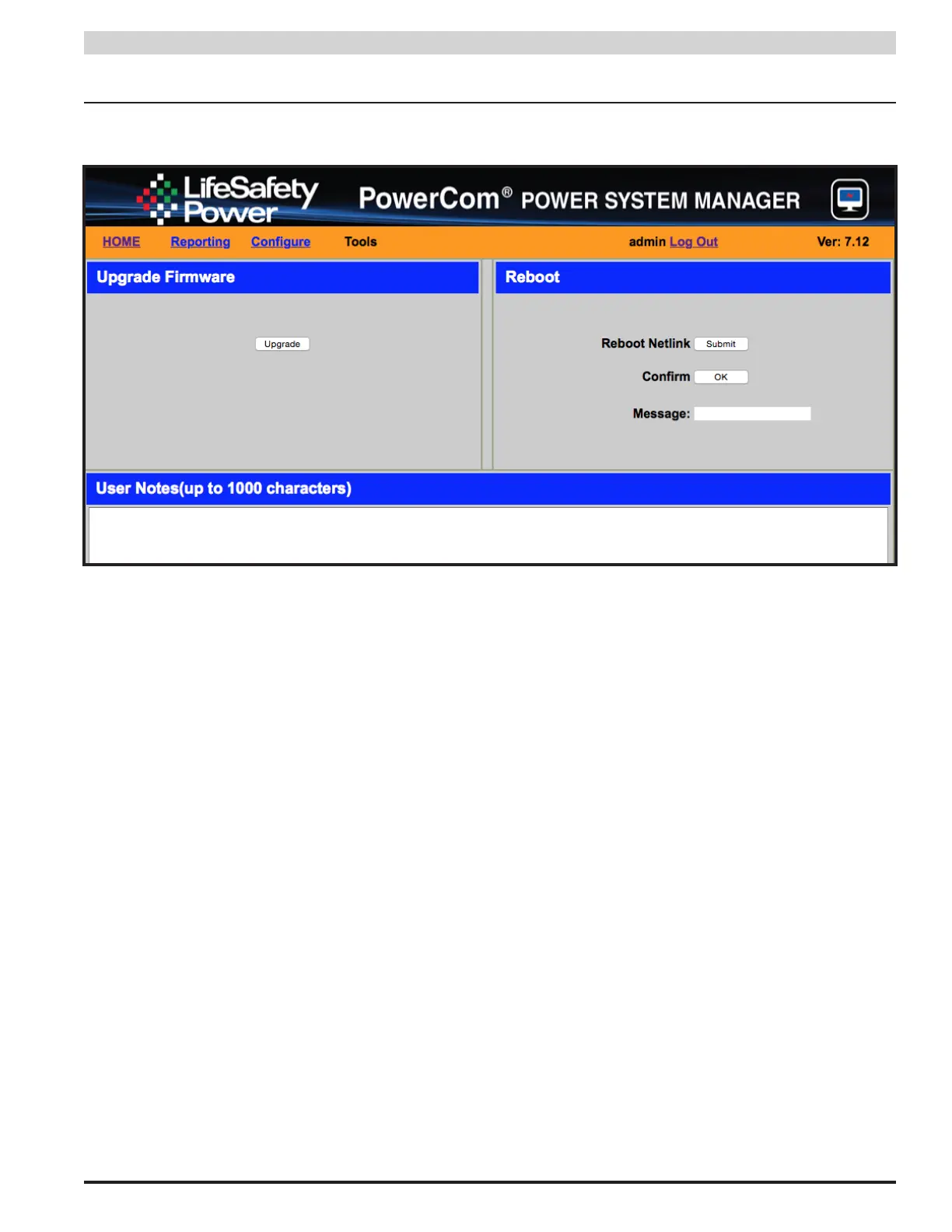

Figure 3.9 - The Tools Page
Upgrading Firmware
The Upgrade Firmware section is at the top left of the Tools page (See Figure 3.9). To upgrade the firmware, first ensure that the new
firmware file is available on your computer, then click the "Upgrade" button and the Upgrade window will appear.
Click the "Browse..." button and locate the new firmware file with the file extension ".bin" on your computer. Once the file is selected,
click the "Download" button to temporarily download the new firmware into the RAM of the PSX-NL4 board. This process will take from
30 seconds to three minutes depending on network speed and traffic, and the message box will display "Download...". Once the firm-
ware is loaded into the PSX-NL4's RAM, it can then be burned to the processor in the PSX-NL4. Verify the correct file name and click
the "Confirm" button to confirm the upgrade. Next click the "Burn" button to begin burning the firmware to the PSX-NL4's processor.
i Note: This process may take up to 12 minutes - DO NOT REMOVE POWER TO THE PSX-NL4 DURING THIS PROCESS or the PSX-
NL4 will be rendered nonfunctional.
Once the update is complete, a message will appear in the message box indicating "Update Finished". The PSX-NL4 must be rebooted
in order to start the new firmware.
Rebooting the PSX-NL4 Board
The "Reboot" section is on the top right of the Tools page (See Figure 3.9). To reboot the PSX-NL4, click the "Submit" button. Once
the "Confirm Reboot" message appears in the Message window, click the OK button to Confirm the reboot. The rebooting process will
take approximately 1 minute, during which you will lose communication with the PSX-NL4. Communication will be restored once the
yellow LED lights steady.
User Notes
This section allows the user to enter notes such as service history, installation specifics, reminders, etc. Up to 1000 characters may
be entered.
