19
Installation and Operation
Section 3 – Using the PSX-NL4
Before system parameters can be viewed, you must be logged into the PSX-NL4 board using the proper IP address, user name, and
password for the PSX-NL4 to be viewed, as shown in Section 2 of this manual.
3.1 Viewing System Parameters on the PSX-NL4 Home Page
The Home page contains all of the real-time parameters monitored by the PSX-NL4 as well as status of the connected devices. The
Home page is broken into several sections as follows.
3.1.1 Basic Site Information
The top portion of the PSX-NL4 Home page lists the Site ID (as programmed on the Configure page) as well as the system time and
date (Figure 3.1).

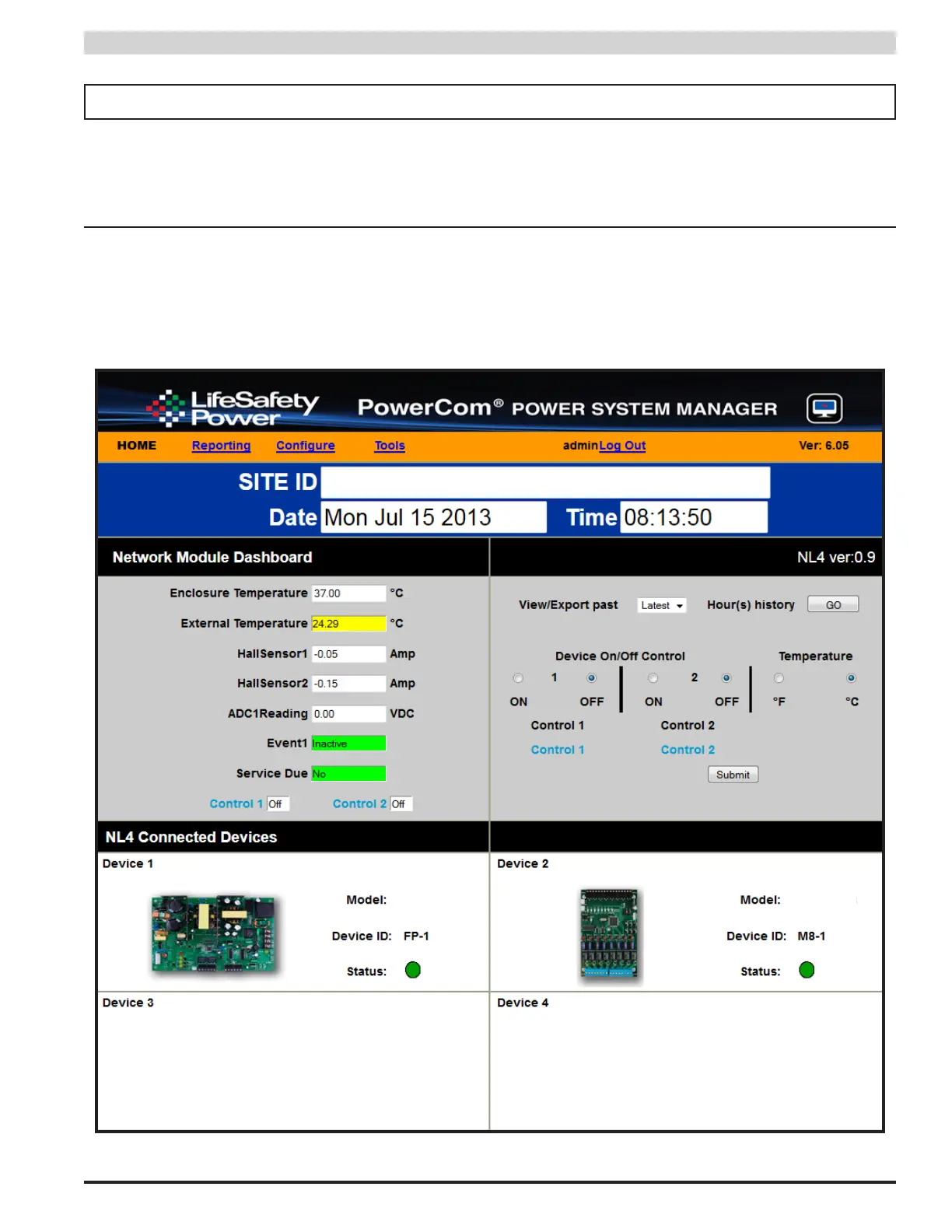

Figure 3.1 - Typical PSX-NL4 Home Page
FPO150 M8
