NOTE: in case of use with aluminum wire and its alloys, it is necessary to replace the
WIRE GUIDE TUBE and the torch TUBE with a TEFLON tube.
Also, replace the drive ROLL with the “U” groove type.

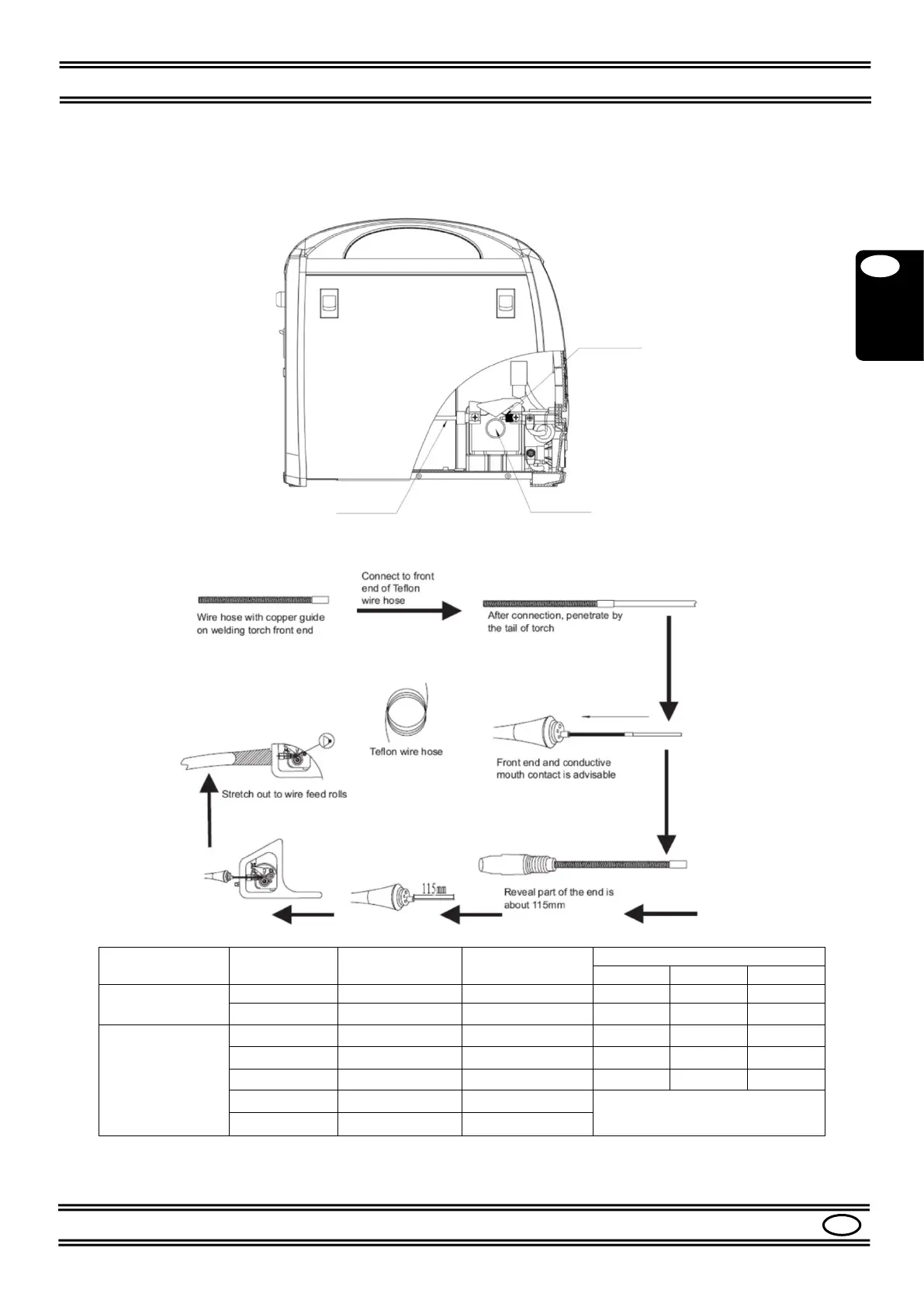

For installation, refer to the figures below and the values indicated in Table 1.
Wire diameter
[mm]
Thickness
[mm]
Voltage
[V]
Wire speed
[cm / min]
Parameter value of Table 4
P11
P13
P14
Ф0.8
1.0
11
5.9
1.3
29
60
2.0
15
8.4
1.8
50
60
Ф1.0
1.0
10
4.0
1.3
29
60
2.0
14.3
6.0
1.8
50
60
3.0
15.2
8.2
1.5
33
50
4.0
17.4
10.4
5.0
18.6
11.4
Table 1: indicative settings for aluminum wire
TEFLON
tube
TEFLON WIRE GUIDE TUBE
“U“ TYPE GROOVE
