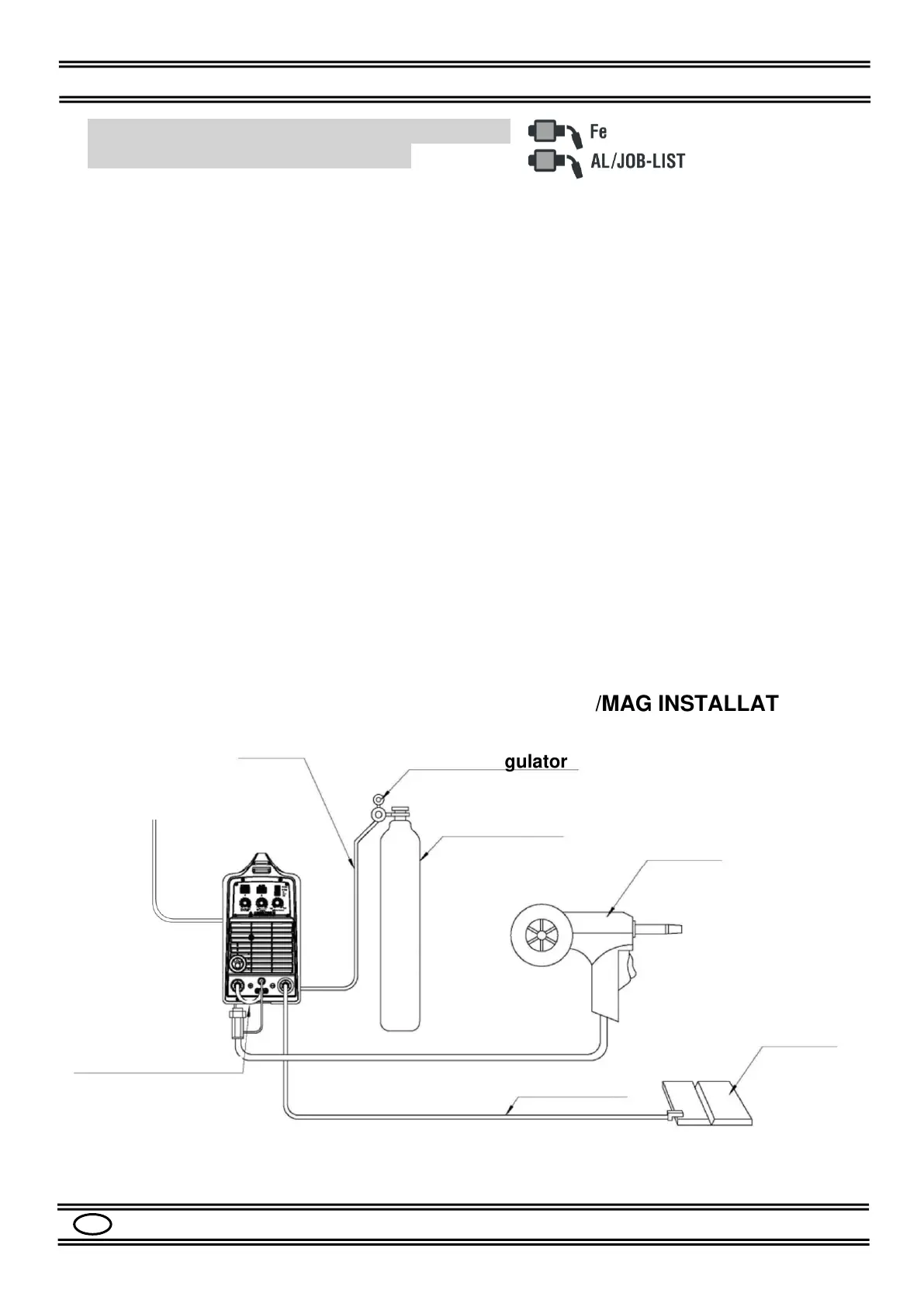

7.5 MIG/MAG INSTALLATION, FCAW-S
with SPOOL GUN TORCH
Please refer to Figures 1 2 3 4.
- Make sure that the switch (9) is in the "0" position.
- Check that the selector (12) is in the "SPOOL GUN" position.
- Connect the SPOOL GUN to the machine sockets (2) and (6).
- Connect the GROUND CABLE to the socket (3) (-) of the machine.
- Secure the other end of the ground cable to the workpiece, making sure there is good
electrical contact
- Connect the DINSE PLUG (4) to the socket (5) (+).
- Load the SPOOL of WIRE onto the SPOOL GUN torch
- Insert the wire in the wire guide tube, on the rollers and inside the torch.
- Screw the pressure regulator to the gas cylinder.
- Connect the GAS hose to the cylinder pressure regulator.
- Connect the other end of the GAS hose to the fitting (10).
- Open the gas cylinder regulator.
- Adjust the gas flow to the appropriate value (10-14 Lt / min).
- Turn on the machine with the switch (9).
- Press the MODE button (18) to select the AlMg1.0 or JOB-LIST mode
- Select the 2-times, 4-times or 4-times Special cycle with the CYCLE button (17).
- Set the welding values with the knobs (19), (20), (21), see Par. 8.3.
- Adjust the other welding parameters as described in Par. 8.5 and refer to Table 4.
- The machine is now ready to weld.
