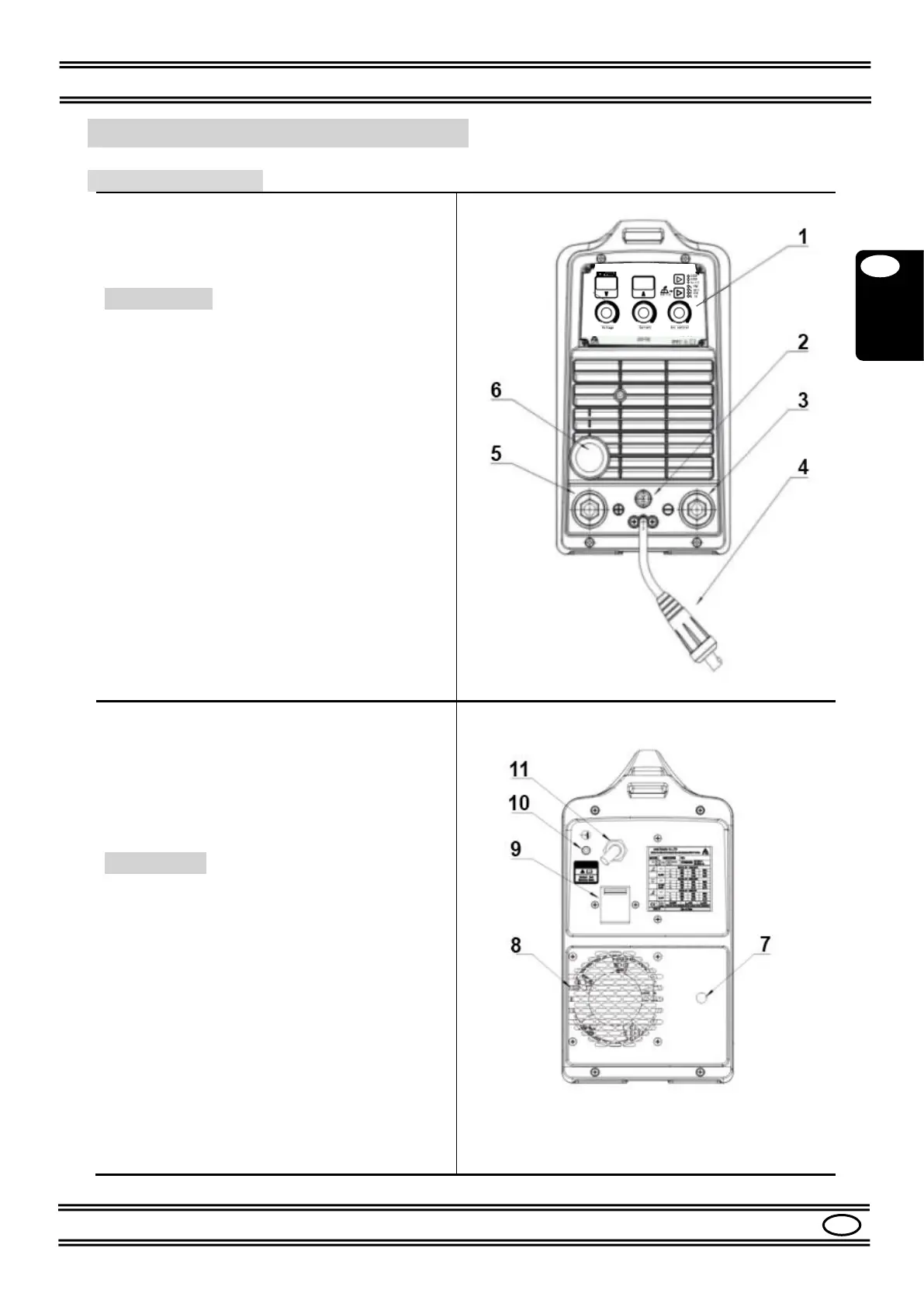

Front panel:
1. Operating panel: to set parameters.
2. Socket for connecting the SPOOL
GUN torch
(optional, see Chap. 9).
3. Output socket “-”.
4. Cable with dinse plug for polarity
inversion. It allows the reversal of the
polarity of the flashlight.
5. Output socket “+”.
6. Euro socket to connect the torch.
Rear panel:
7. Wire inserts for entry from external
spool to the machine (not available
in this machine version).
8. Fan to cool internal components.
9. ON/OFF switch.
10. Gas inlet fitting.
11. Power supply cable.
