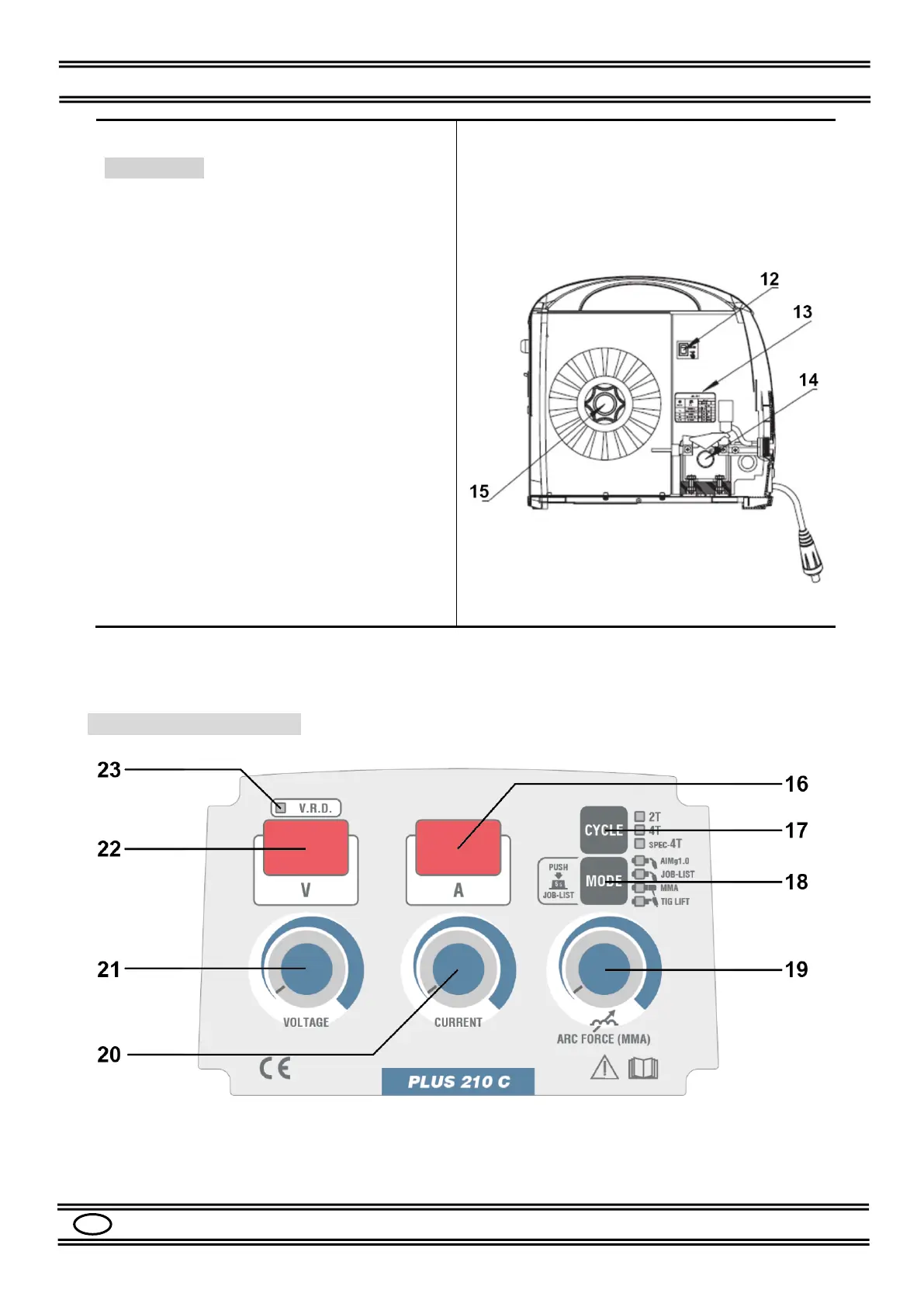

Side panel:
12. “MIG GUN” or “SPOOL GUN”
selector.
13. JOB LIST label with list of JOB code
for different materials, see Par. 8.3
for more details.
14. Wire drive roller, suitable for solid
and cored wires:
• Roller for CARBON and
STAINLESS STEEL with “V”
groove Ø 0.6, Ø 0.8, Ø 1.0.
• Roller for ALUMINUM with “U”
groove Ø 0.8, Ø 1.0, Ø 1.2.
• Roller for ANIMATED WIRE with a
KNURLED groove. Ø 0.8, Ø 1.0.
See Ch. 15 for standard and/or
optional roller installations.
15. Spool holder support with clutch
