SolarEdge L20-IB00 - Communication Panel; Figure 4 Communication Panel; Table 4 Communication Panel

11
L20, L30
L30-IB60
250mm
900mm
868mm
238kg
L30-IB00
250mm
900mm
868mm
78kg
3.5.1.
Communication panel:

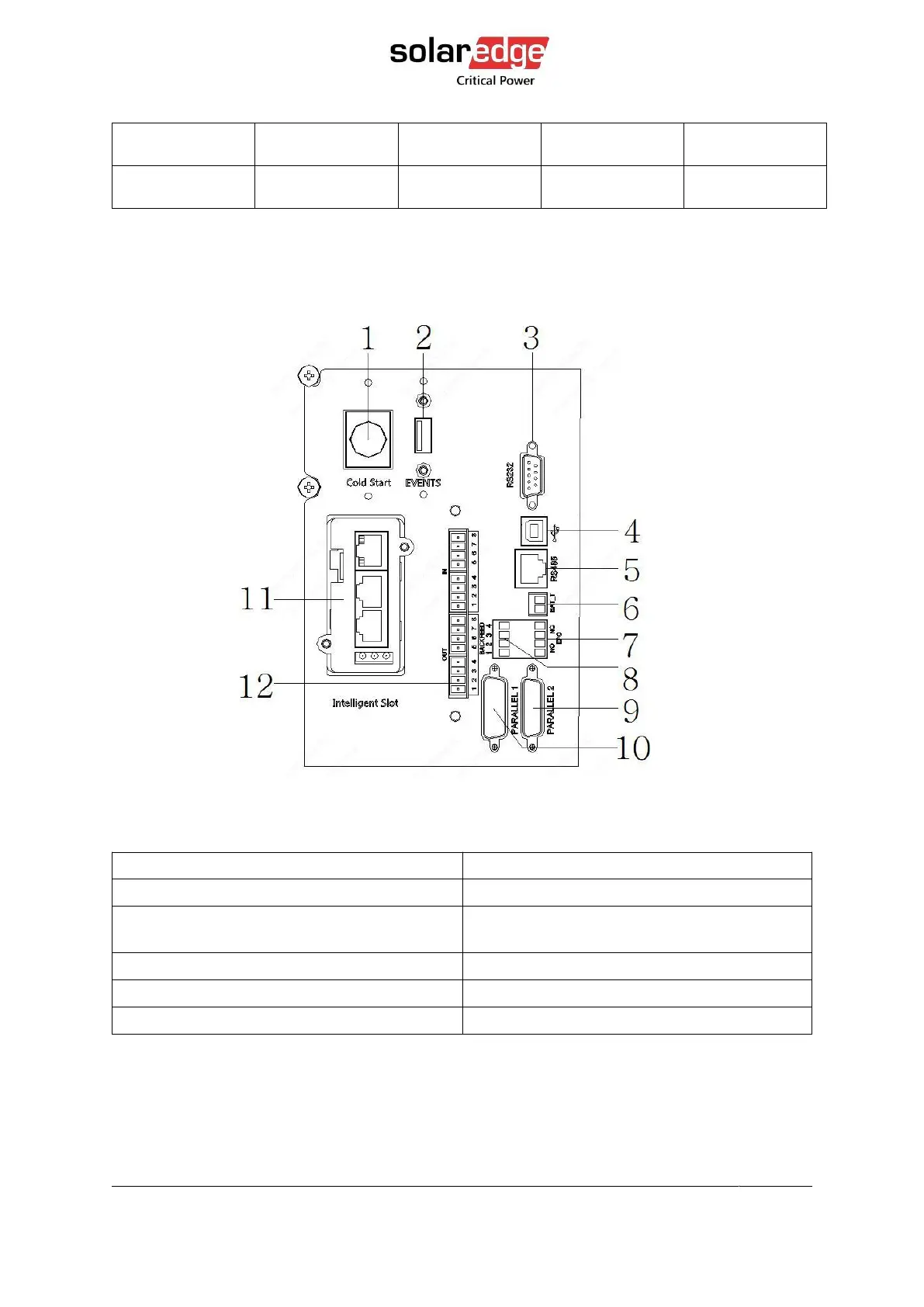

Figure 4 Communication panel
Table 4 Communication panel
(1) Cold start button
(2) USB port (for LCD upgrade)
(3) RS232 port
(4) USB port (for computer connect)
(5) RS485 port
(6) BAT_T dry contact Temperature sensor
port (for NTC)
(7) REPO port
(8) Backfeed protection port
(9) Parallel port 2
(10) Parallel port 1
(11) Intelligent Slot (SNMP card, optional)
(12) Dry contact port
