SolarEdge L20-IB00 - Figure 21 Relay Overview; Table 9 Relay Contacts (Communication Card)

63
L20, L30

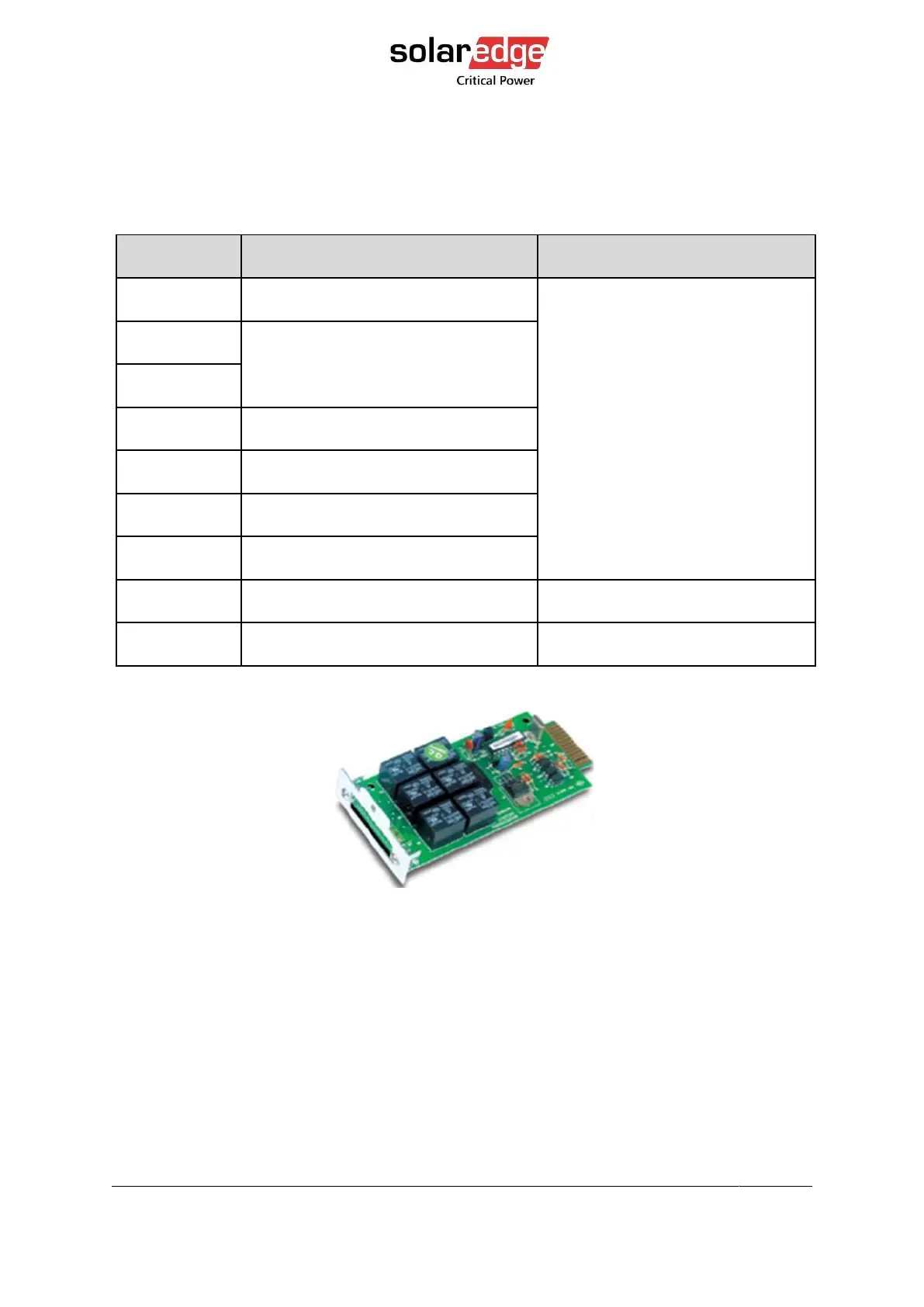

Table 9 Relay contacts (communication card)
Pin
Function Description
Input or Output
1
Utility Failure
Output
2
Battery Low
3
4
Bypass On
5
UPS Fault
6
Inverter On
7
Summary Alarm
8
common
9
Remote Shutdown +
Input (5~12V)
Figure 21 Relay overview
