SolarEdge L20-IB00 - Figure 15 Muser 5000 Usersetting Page; Figure 16 Muser5000 Work Mode Setting Page

22
L20, L30

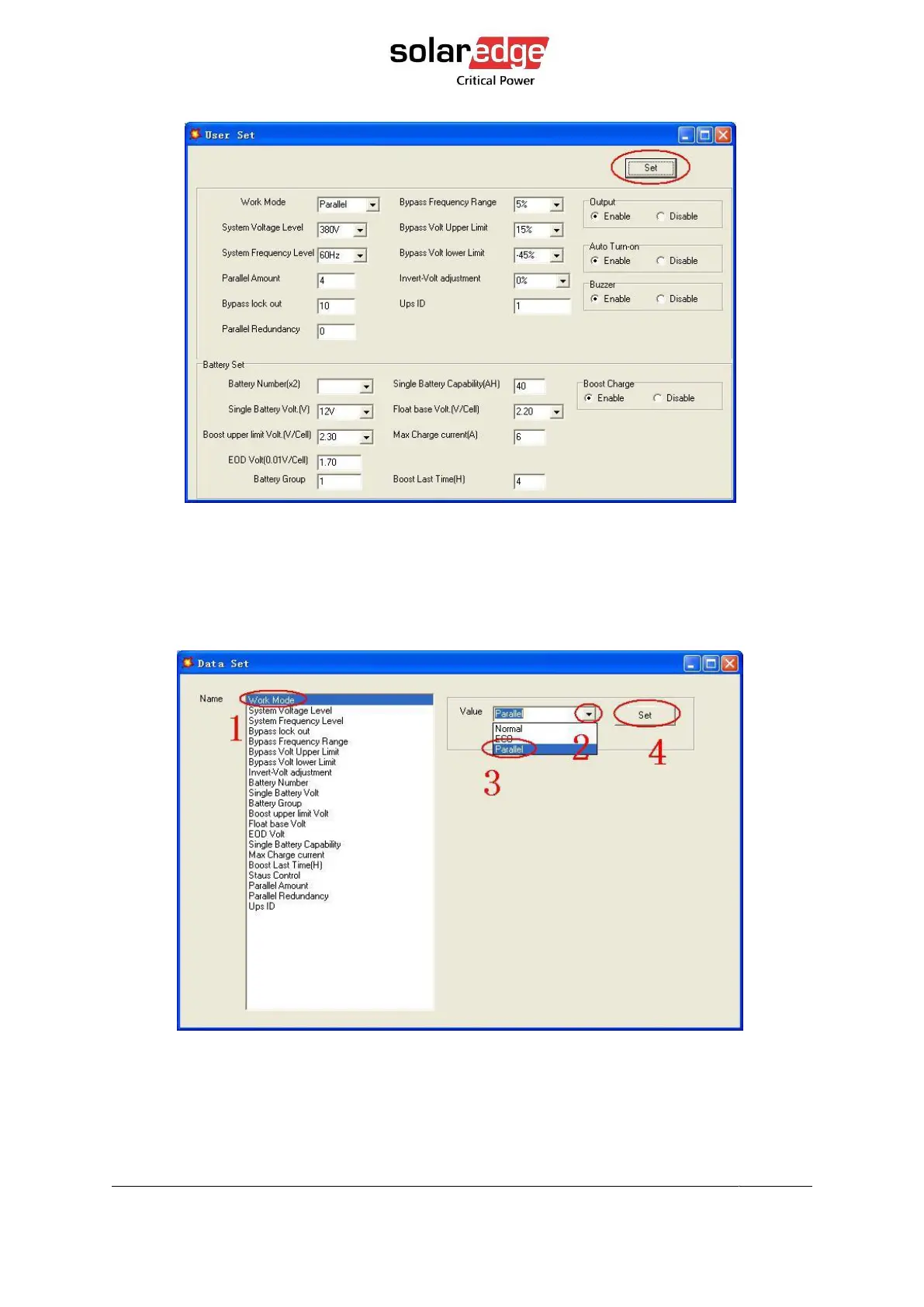

Figure 15 Muser5000 user setting page
 At the window of “Data Set”, click “Work Mode”, choose “Parallel” for the value, thenclick
“Set” as shown in below picture. If the UPS sounds a “beep”, that means the setting is
correct.
Figure 16 Muser5000 work mode setting page
 At the window of “Data Set”, click “Ups ID”, write a value for the parallel UPS ID at the
right side, such as “1”, then click “Set” as shown in below picture. If the UPS sounds a
“beep”, that means the setting is correct.
