SolarEdge SE Series User Manual

Indication
ON/ OFF/ P
Switch
Position
LEDColor
Comment
Red Green Blue
Percentage of AC
Production: 0 %
ON (1)
OFF OFF OFF
This indicates power
production as
percentage of rated
peak AC output
power
Percentage of AC
Production: 0 - 33 %
OFF ON OFF
Percentage of AC
Production: 33 - 66 %
OFF OFF ON
Percentage of AC
Production: 66 - 100 %
OFF ON ON
DC Safety Unit Interfaces
DC Safety Unit (if applicable), including:
ON/OFF switch: connects and disconnects DC power to the inverter
AC output: Cable gland for connection of AC power to the grid
DC input: Cable glands or MC4 connectors for connection of PV strings
External Protective Earth (PE) grounding (optional): Cable gland for external
grounding

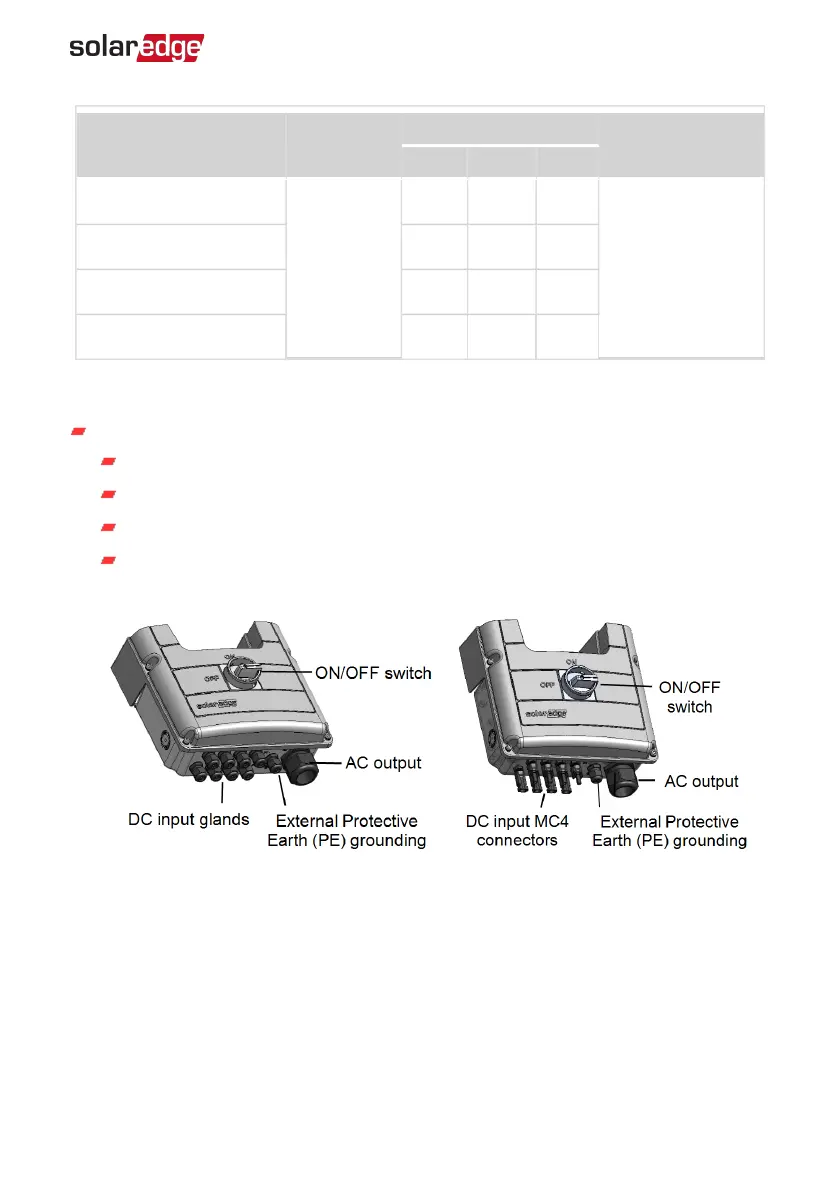

Figure 8: DC Safety Unit with cable glands (Left) and with MC4 connectors (Right)
Chapter 3: Installing the Inverter 26
Three Phase Inverter with SetApp Configuration PN: SEXXK-XXXXIXXXX

SolarEdge SE Series Specifications

General

Efficiency	Up to 99%
Protection Rating	IP65
Communication	Ethernet, Wi-Fi (optional), RS485
Dimensions	Varies by model
Weight	Varies by model
Rated AC Power	Varies by model
Max. DC Power	Varies by model
Model	SE Series (e.g., SE3000H, SE5000H)
AC Output Power	Varies by model
MPPT Range	Varies by model
Operating Temperature	-25°C to 60°C
Warranty	12 years standard, extendable to 20 or 25 years
