SolarEdge SE5000 User Manual

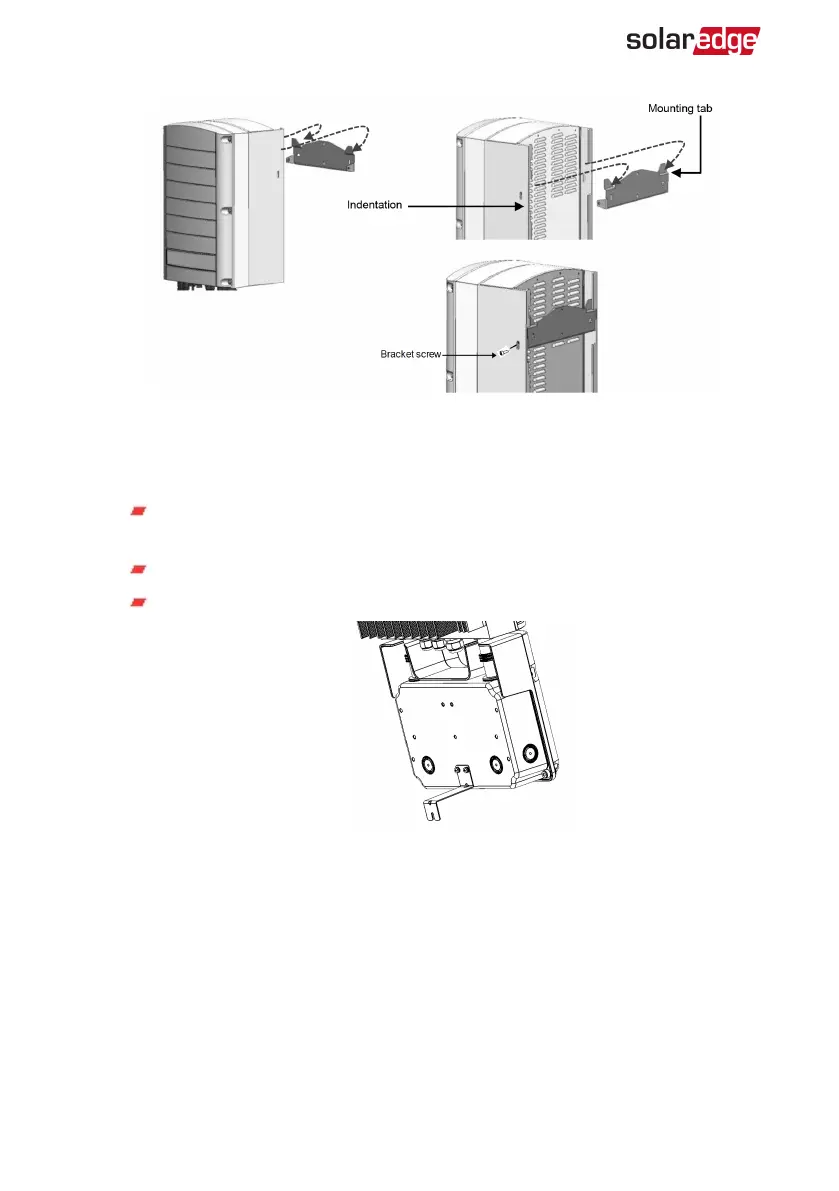

Figure 10: Hanging the inverter on the bracket
7. Secure the Connection Unit bracket to the wall:
8. For inverters with Connection Unit - secure the Connection Unit bracket to the wall:
Mark the location of the bracket screw for the DC Safety Unit and drill the
hole.
Fasten the bracket using a standard bolt.
Verify that the bracket is firmly attached to the mounting surface.
Figure 11: DC Safety Unit bracket
9. Insert the two supplied screws through the outer heat sink fin on both sides of the
inverter and into the bracket (see Figure 10 ). Tighten the screws with a torque of 4.0
N*m / 2.9 lb.*ft.
-Three Phase System Installation Guide MAN-01-00057-4.1
30 Mounting the Inverter

SolarEdge SE5000 Specifications

General

Model	SE5000
Manufacturer	SolarEdge
Category	Inverter
AC Output Power	5000 W
Efficiency	98.3%
Cooling	Natural convection
Protection Rating	IP65
Rated AC Power	5000 W
Max. AC Power	5000 VA
Maximum Input Voltage	480 V
Number of MPP Trackers	1
Max. Input DC Voltage	480 V
Operating Temperature Range	-25°C to 60°C
AC Voltage	230 V
