PIXEL LOCATIONS – FLARE JR.

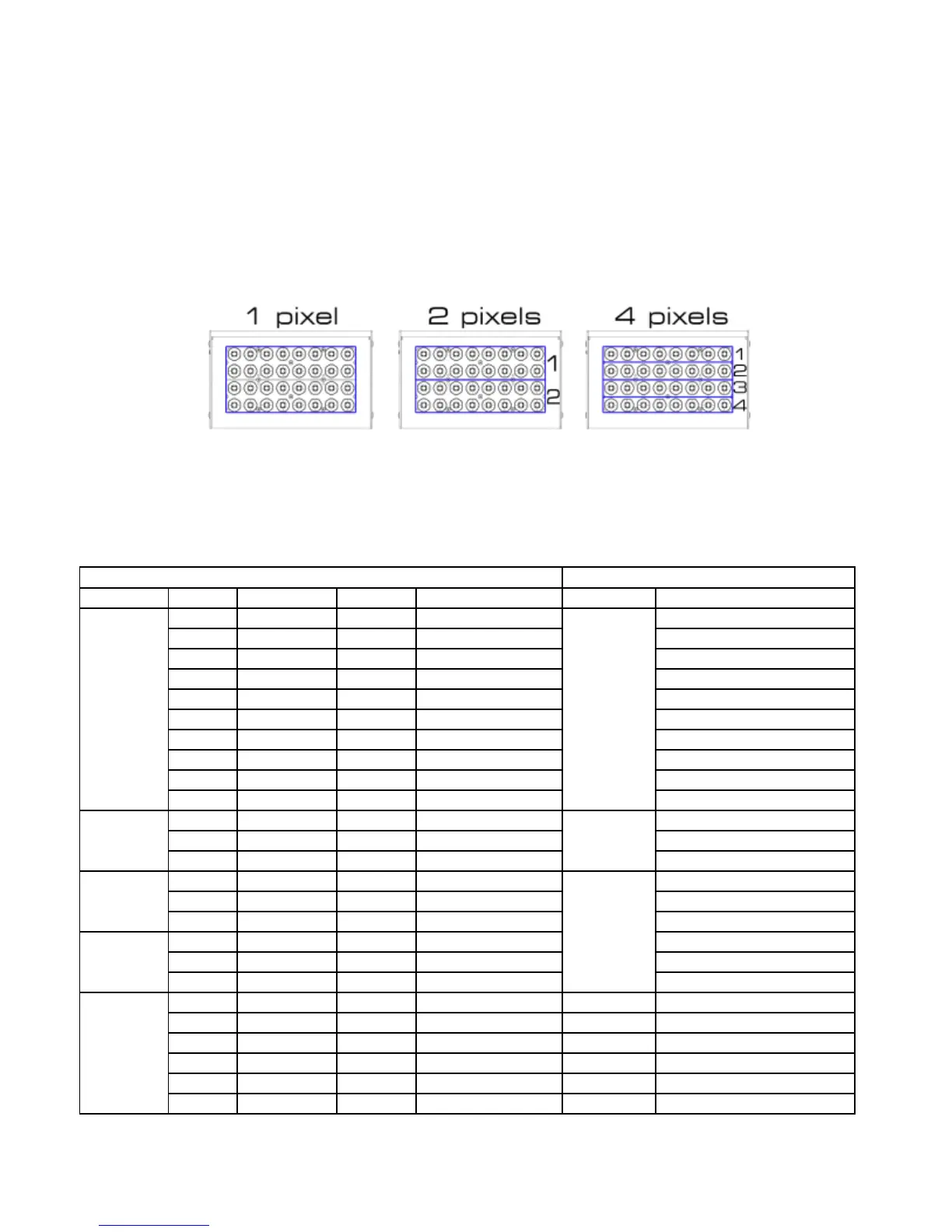

Flare Jr. consists out of 32 10W Cree LEDs which are located in 4 rows and 8 columns. In advanced
controlling modes, the Flare Jr. can be controlled as a wash in 1, 2, or 4 pixel modes.
Note: Only the entire fixture can be Strobed. Operators can chase individual sections with intensity or
color very quickly to simulate strobing of individual segments. However, Strobe functions and Strobe
color can only be set for the whole fixture.
ADVANCED RGB STROBE DMX CHANNELS
FLARE
FLARE Jr.
PIXEL MODE
CHANNEL
DMX VALUE
PERCENT
FUNCTION
PIXEL MODE
FUNCTION
RGB
PIXEL
MODE 1
1
0 - 255
0 - 100
Red Strobe Intensity
RGB
PIXEL
MODE 1
Red Strobe Intensity
2
0 - 255
0 - 100
Green Strobe Intensity
Green Strobe Intensity
3
0 - 255
0 - 100
Blue Strobe Intensity
Blue Strobe Intensity
4
0 - 255
0 - 100
Strobe Intensity
Strobe Intensity
5
0 - 255
0 - 100
Strobe Duration
Strobe Duration
6
0 - 255
0 - 100
Strobe Rate
Strobe Rate
7
0 - 255
0 - 100
Strobe FX
Strobe FX
8
0 - 255
0 - 100
1 pix Red intensity
1 pix Red intensity
9
0 - 255
0 - 100
1 pix Green intensity
1 pix Green intensity
10
0 - 255
0 - 100
1 pix Blue intensity
1 pix Blue intensity
RGB PIXEL
MODE 2
11
0 - 255
0 - 100
2 pix Red intensity
RGB PIXEL
MODE 2
2 pix Red intensity
12
0 - 255
0 - 100
2 pix Green intensity
2 pix Green intensity
13
0 - 255
0 - 100
2 pix Blue intensity
2 pix Blue intensity
RGB PIXEL
MODE 3
14
0 - 255
0 - 100
3 pix Red intensity
RGB PIXEL
MODE 4
3 pix Red intensity
15
0 - 255
0 - 100
3 pix Green intensity
3 pix Green intensity
16
0 - 255
0 - 100
3 pix Blue intensity
3 pix Blue intensity
RGB PIXEL
MODE 4
17
0 - 255
0 - 100
4 pix Red intensity
4 pix Red intensity
18
0 - 255
0 - 100
4 pix Green intensity
4 pix Green intensity
19
0 - 255
0 - 100
4 pix Blue intensity
4 pix Blue intensity
RGB PIXEL
MODE
6H or 6V
20
0 - 255
0 - 100
5 pix Red intensity
21
0 - 255
0 - 100
5 pix Green intensity
22
0 - 255
0 - 100
5 pix Blue intensity
23
0 - 255
0 - 100
6 pix Red intensity
24
0 - 255
0 - 100
6 pix Green intensity
25
0 - 255
0 - 100
6 pix Blue intensity
